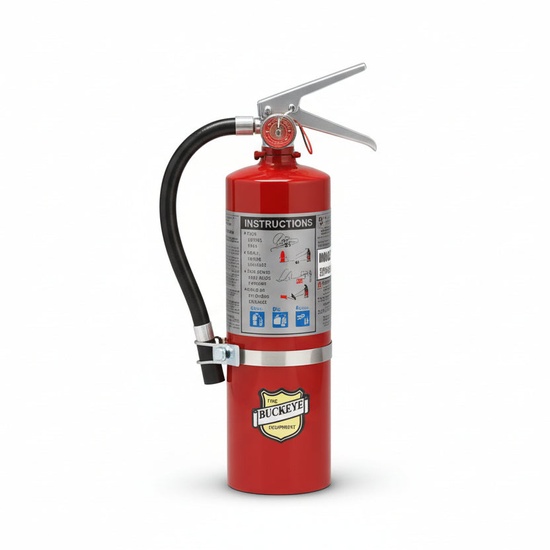

Buckeye ABC Dry Chemical Fire Extinguisher w/ Vehicle Bracket – 5 lb.
BuckeyeCataloged under NSN 4210-01-586-7150 (CAGE 57658)
( 2 )
$54.00
$64.00
-16%Typically ships in 3-5 business days.
Volume pricing on 10+ units.
US Made Products
Flat Rate Shipping
Business Support
American businesses trust US Made Supply because we do the research.
Call 714-248-6555 or email us.
Compare Buckeye ABC sizes
Same monoammonium phosphate agent and the same UL 299 / UL 711 listings across the line. What changes is the coverage rating, how long it discharges, and which DOT vehicle class it satisfies.
| Photo | Size | UL rating | Discharge | Mounting | Cabinet | Vehicle use |
|---|---|---|---|---|---|---|
3-3/8 in dia · 14-3/4 in tall | 1-A:10-B:C | 9 sec 9–15 ft range | Vehicle bracket incl. Model A2 | Sold separately See cabinet guide | ||
 | 5 lb (vehicle)This item 4-1/4 in dia · 16 in tall | 3-A:40-B:C | 14 sec 12–18 ft range | Vehicle bracket incl. | Sold separately See cabinet guide | |
4-1/4 in dia · 16-3/8 in tall | 3-A:40-B:C | 14 sec 12–18 ft range | Wall hook incl. | Sold separately See cabinet guide | ||
5-1/8 in dia · 21 in tall | 4-A:80-B:C | 22 sec 15–21 ft range | Wall hook incl. | Sold separately See cabinet guide | ||
7-1/2 in dia · 21-1/4 in tall | 10-A:120-B:C | 27 sec 15–21 ft range | Wall hook incl. | Sold separately See cabinet guide | ||
mobile floor unit | 10-A:160-B:C | ~30 sec ~25 ft range | Wheeled See all wheeled units | Not applicable | Facility unit not vehicle-carried |
Discharge
9 sec
9–15 ft range
Mounting
Vehicle bracket incl.
Model A2
Cabinet
Sold separately
See cabinet guideVehicle use
4-1/4 in dia · 16 in tall
UL rating: 3-A:40-B:C
Discharge
14 sec
12–18 ft range
Mounting
Vehicle bracket incl.
Cabinet
Sold separately
See cabinet guideVehicle use
Discharge
14 sec
12–18 ft range
Mounting
Wall hook incl.
Cabinet
Sold separately
See cabinet guideVehicle use
Discharge
22 sec
15–21 ft range
Mounting
Wall hook incl.
Cabinet
Sold separately
See cabinet guideVehicle use
Discharge
27 sec
15–21 ft range
Mounting
Wall hook incl.
Cabinet
Sold separately
See cabinet guideVehicle use
Discharge
~30 sec
~25 ft range
Mounting
Wheeled
See all wheeled unitsCabinet
Not applicable
Vehicle use
Facility unit
not vehicle-carried

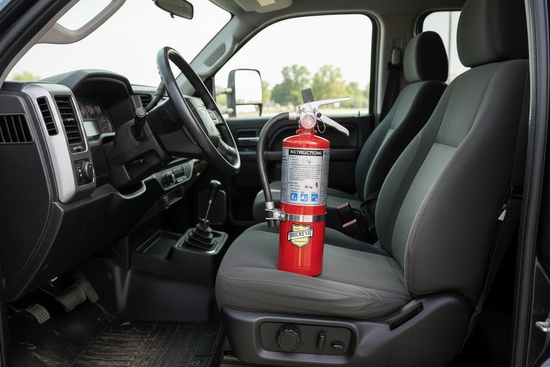

DOT-compliant ABC Multipurpose Fire Extinguisher - 5 LB w/ Vehicle Bracket
The Buckeye 25614 ABC Dry Chemical Fire Extinguisher, featuring a 5 lb capacity and a convenient vehicle bracket, offers effective protection against Class A, B, and C fires across diverse environments such as homes, offices, warehouses, and farms. Designed for durability with an all-metal valve and robust cylinder, it meets ANSI/UL standards and is DOT approved. While not suitable for sensitive electronics, it ensures reliable performance in emergencies. This 3-A:40-B:C rated extinguisher weighs 10 lbs, stands just over 16 inches tall, and delivers a 14-second discharge with a 12-18 foot range, operating reliably between -65°F and 120°F. Recharging is simple using 50 lb pails of ABC dry chemical.
Buckeye’s 5 lb Monoammonium Phosphate dry chemical 25614 extinguisher effectively tackles Class A, B, and C fires, making it suitable for residential, commercial, agricultural, and vehicle use.
DOT Vehicle Size Recommendations
DOT 49 CFR §393.95 requires commercial motor vehicles to carry a UL-listed fire extinguisher. Minimum size depends on vehicle class and whether the load is placarded hazmat.
| Size | UL Rating | Recommended For |
|---|---|---|
| 2.5 lb | 1-A:10-B:C | Pickups, light service vehicles, CMVs under 10,001 lb GVWR |
| 5 lb | 3-A:40-B:C | Semi-trucks, box trucks, flatbeds, buses (standard CMVs) |
| 10 lb | 4-A:80-B:C | Placarded hazmat transport, tanker trucks, large fleets |
| 20 lb | 10-A:120-B:C | Heavy-duty extended-fire scenarios, high-risk cargo |
See the full DOT fire extinguisher requirements guide for hazmat rules, mounting specifications, and inspection intervals.
Frequently Asked Questions
Does this extinguisher come with an inspection tag?
No. New extinguishers ship untagged. A service tag records maintenance performed on a unit that is already in service, so there is nothing to record on a new one yet. Under NFPA 10 the annual maintenance is done by a trained person and the tag is attached then. The monthly visual inspection is one you can do yourself.
Can I return this fire extinguisher?
Once shipped, charged fire extinguishers are not returnable. They are DOT-regulated hazardous materials (compressed gas, UN 1044) and cannot be shipped back through normal parcel carriers. If your unit arrives damaged or defective, email support@usmadesupply.com with photos and we will work with you on a resolution.
