NFPA 72: National Fire Alarm & Signaling Code
Requirements for fire detection, alarm systems, and emergency communication
Last updated: April 23, 2026
9 readers found this useful recently
Overview
NFPA 72, the National Fire Alarm and Signaling Code, provides the requirements for the installation, performance, testing, inspection, and maintenance of fire alarm systems, supervising station alarm systems, public emergency alarm reporting systems, fire warning equipment, and emergency communication systems. The 2025 edition includes significant updates for smoke detector placement near cooking appliances and expanded carbon monoxide detection requirements.
This code covers everything from household smoke alarms to complex multi-building fire alarm networks, ensuring systems provide early warning to building occupants and emergency responders. The standard is adopted by jurisdictions across North America and referenced in building codes, fire codes, and life safety standards.
Inspector Certification Standards
NFPA 72 Chapter 10 requires qualified personnel for system inspection and testing. NICET Fire Alarm Systems (FAS) Level II certification or ITFAS certification meets most jurisdictional requirements. Some states require additional licensing per local codes.
View state-specific requirementsSmoke Detector Requirements (2025 Updates)
2025 Major Update: Smoke alarms and detectors within 10-20 feet of cooking appliances must comply with UL 217 (8th edition) or UL 268 (7th edition) for resistance to nuisance alarms from cooking activities.
Placement Near Cooking Appliances
- Prohibited Zone: No installation within 10 ft radius of cooking appliances unless necessary for coverage
- 10-20 ft Zone: Detectors must be listed for resistance to nuisance alarms per UL 217/268
- 6-10 ft Exception: Permitted only if no other location available and must be nuisance-resistant listed
- Horizontal Flow Path: 10-20 ft restriction applies along horizontal air flow from cooking appliance
General Placement Requirements
- Inside each bedroom and sleeping area
- Outside each separate sleeping area within 21 feet of doors
- On every level of the home including basements
- In rooms with fuel-burning appliances
- At the top of first-to-second floor stairways
- Minimum 36 inches from air supply diffusers
Carbon Monoxide Detection
The 2025 edition expands carbon monoxide detection requirements beyond traditional fuel-burning appliances:
Updated CO Source Definition
- No longer limited to fuel-burning appliances only
- Includes attached garages regardless of fuel-burning equipment
- Areas near loading docks and vehicle idling zones
- Spaces adjacent to generator rooms
Installation Requirements (Section 29.7)
- Outside each separate dwelling unit sleeping area within 21 feet
- On every occupiable level of a dwelling unit
- In rooms with fuel-burning appliances or fireplaces
- In "unconditioned areas" (new definition): attics, crawlspaces, garages
- Listed to UL 2034 or UL 2075 standards
- Interconnected with smoke alarms where required by code
Fire Alarm System Types
NFPA 72 defines several types of fire alarm systems:
- Household Fire Alarm Systems: Single and multiple-station alarms for residential occupancies
- Protected Premises Systems: Local fire alarm systems serving a single building or area
- Supervising Station Systems: Central, remote, or proprietary stations monitoring multiple properties
- Public Emergency Reporting Systems: Municipal street boxes and radio systems
- Emergency Communication Systems: Mass notification and in-building fire emergency voice/alarm
System Features & Capabilities
- Addressable Systems: Individual device identification and status monitoring
- Analog Systems: Continuous monitoring of detector sensitivity
- Wireless Systems: Must comply with low-power radio requirements
- Voice Evacuation: Required in high-rise buildings and large assemblies
- Integration: Interface with HVAC, elevators, and door releases
Addressable vs Conventional Systems
NFPA 72 Chapter 23 recognizes both conventional and addressable systems. The code doesn't mandate one over the other — it's an engineering and budget call. Conventional panels wire devices in zones on Initiating Device Circuits (IDCs); the panel sees "Zone 3 alarm" but can't identify which device tripped. Addressable panels give each device a unique digital address on a Signaling Line Circuit (SLC), so the panel reports the exact device and location.
| Attribute | Conventional (IDC) | Addressable (SLC) |
|---|---|---|
| Device identification | Zone-level only | Point-level (unique address) |
| Typical devices per circuit | ~20 per zone | 159–318 per loop (panel-dependent) |
| Fault isolation on short | Entire zone fails | With isolators, only one segment drops |
| Wiring topology | Home-run zones to panel | Loop (Class A/X) or branch (Class B) |
| Per-device cost | Lower | Higher, but fewer wire runs |
| Best fit | Small single-tenant buildings | Large, multi-tenant, voice evac, hospitals, schools |

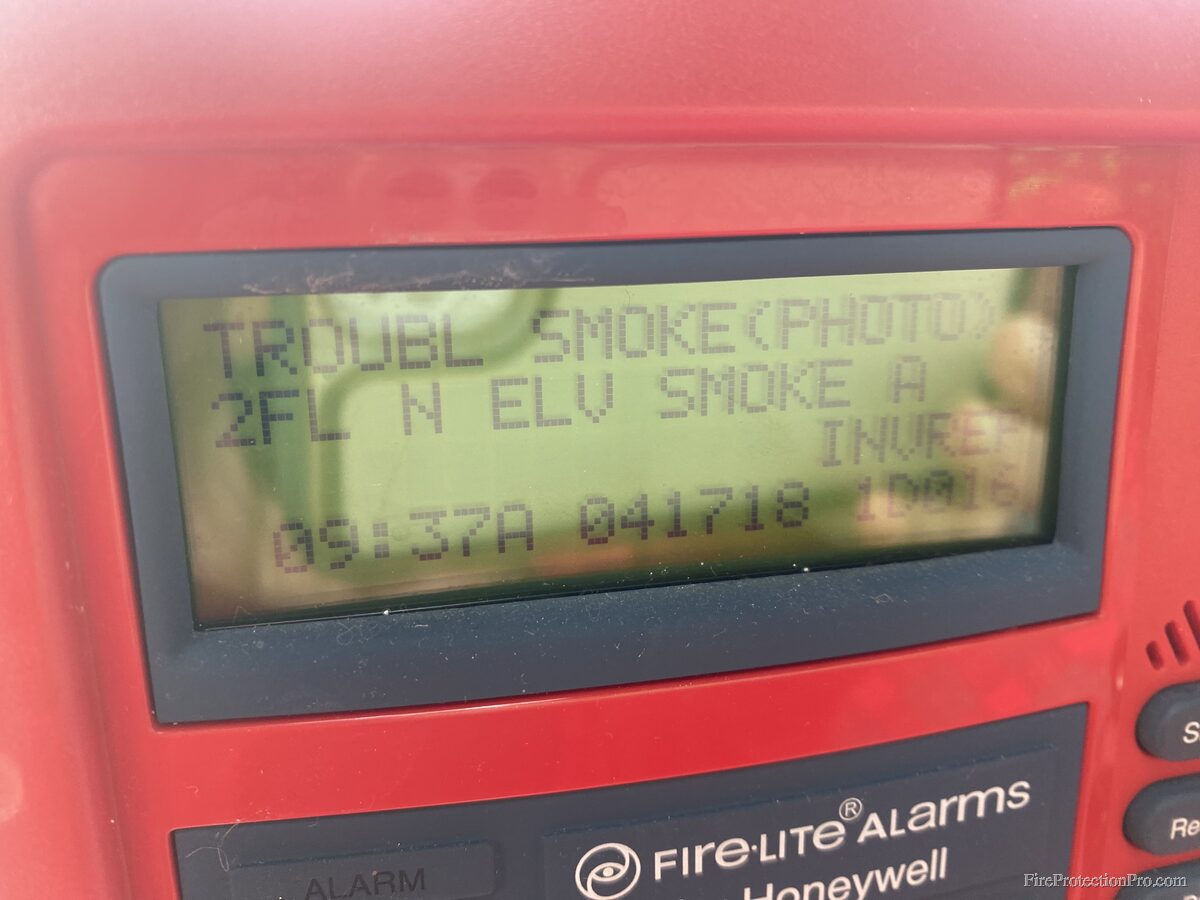

Compact addressable panels like the Fire-Lite ES-200X (successor to the MS-9200UDLS) have closed the price gap with conventional panels on small installs, so the old "addressable equals expensive" assumption no longer holds. All commercial fire alarm panels sold in the US must be listed to UL 864.
Commercial teams managing monitored accounts can also review this commercial fire alarm monitoring guide covering dispatch workflows and vendor coordination.
Fire alarm systems require reliable emergency power backup. See NFPA 110 Emergency Power Systems for generator and transfer switch requirements that support fire alarm operations during power outages.
Building owners evaluating fire alarm communicator options — especially those affected by the POTS copper line sunset — can see our Fire Alarm Communicators Guide for a practical comparison of cellular, IP, dual-path, and radio communicator technologies with cost analysis and selection guidance.
Spacing & Coverage Requirements
| Detector Type | Smooth Ceiling | Maximum Height | Reduction Factor |
|---|---|---|---|
| Smoke Detector | 30 ft spacing | 40 ft (updated) | Beamed/sloped ceilings |
| Heat Detector | 50 ft spacing | 30 ft typical | High airflow areas |
| Beam Detector | 60 ft coverage | 40 ft mounting | Stratification |
| Duct Detector | Per AHU size | N/A | Airflow velocity |
Special Considerations
- High Ceilings: Above 40 ft requires performance-based design calculations
- Beamed Ceilings: Detector in each beam pocket when beams exceed 4 inches
- Sloped Ceilings: Detectors within 3 ft of peak for slopes exceeding 1 ft in 8 ft
- Raised Floors: Detection required below raised floors with cables
- Elevator Shafts: Detector within 21 ft of each elevator door
Quick Reference: Smoke Detector Spacing (2022 Edition)
NFPA 72 doesn't set a universal spacing number. It references the detector's listed spacing, which is almost always 30 ft on a smooth ceiling. The table below captures the common field rules with their actual subsection references. The authoritative spacing for any specific detector is on its product listing.
| Condition | Rule | Reference |
|---|---|---|
| Spot-type, smooth ceiling | Listed spacing (S) typically 30 ft; max wall-to-detector S/2 (15 ft); max ceiling point to nearest detector 0.7 × S (21 ft) | §17.7.3.2.3.1 |
| Wall-mount offset | Top of detector 4 to 12 in from ceiling | §17.7.3.2.3.2 |
| Ceiling-mount sidewall clearance | Minimum 4 in from any sidewall | §17.7.3.2.3.2 |
| Beam depth under 10% of ceiling height | Treat as smooth ceiling | §17.7.3.2.4.2 |
| Beam depth over 10%, beam spacing under 40% of ceiling height | Full S parallel to beams; 0.5 × S perpendicular | §17.7.3.2.4.2 |
| Beam depth over 10%, beam spacing over 40% of ceiling height | One detector in each beam pocket | §17.7.3.2.4.2 |
| Peaked ceiling | First row within 36 in of peak (horizontal) | §17.6.3.4.1 |
| Shed ceiling | First row within 36 in of high side (horizontal) | §17.6.3.4.2 |
| Projected beam (optical) | Max 60 ft between parallel beam paths; max 30 ft to sidewall; beam length per listing (often up to 300 ft) | §17.7.3.7 |
| Air-sampling (aspirating) | Each sampling port treated as a spot detector; design per listing | §17.7.3.6 |
Tip: For high-ceiling spaces above 10 ft, heat stratification can delay smoke reaching ceiling-mounted detectors. NFPA 72 Annex A (A.17.7) recommends engineering judgment for spaces above 30 ft. Use detectors listed for the specific ceiling height.
Notification Appliance Mounting Heights
NFPA 72 Chapter 18 governs where strobes, horns, and horn-strobe combos sit on the wall. Manual pull stations are covered in Chapter 17. The heights below reflect the 2022 edition and align with the 2010 ADA operable-parts limit.
| Appliance | Height | Reference |
|---|---|---|
| Manual pull station (operable handle) | 42 to 48 in above floor | §17.14.8.4 |
| Pull station proximity to exit | Within 5 ft of exit doorway (horizontal) | §17.14.8.5 |
| Wall-mounted strobe (lens) | Entire lens between 80 in and 96 in above floor | §18.5.5.4.1(a) |
| Wall-mount combination horn-strobe | Strobe lens governs — 80 to 96 in | §18.5.5.4.1(a) |
| Low ceiling (under 96 in) | Mount within 6 in of ceiling; adjust room coverage per spacing tables | §18.5.5.4.1 |
| Ceiling-mounted strobe | Effective intensity per ceiling height | Table 18.5.5.4.1(b) |
Note: NFPA 72 editions before 2013 allowed pull stations up to 54 in. The 2013 edition narrowed the range to 42–48 in to match the 2010 ADA §308 side-reach limit of 48 in. New installations should use 42–48 in.
Duct Smoke Detector Requirements
Duct smoke detectors shut down HVAC fans on smoke detection so smoke isn't distributed through the building. They are not a substitute for area smoke detection — NFPA 72 §17.7.5.3.1 is explicit on that. Trigger thresholds come from the International Mechanical Code, and installation rules come from NFPA 72.
| Requirement | Rule | Reference |
|---|---|---|
| Supply air trigger | Required on systems over 2,000 CFM, downstream of filters and ahead of branch connections | IMC §606.2.1 |
| Return air trigger | Required on return systems over 2,000 CFM, upstream of filters and exhaust/outdoor air connections | IMC §606.2.2 |
| Multi-story return riser | Additional detection at each floor when a riser serves 2+ stories and combined capacity exceeds 15,000 CFM | IMC §606.2.3 |
| Installation | Per manufacturer instructions; sampling tube sized to duct width | NFPA 72 §17.7.5.4 |
| Access | Accessible for inspection, testing, and maintenance | NFPA 72 §17.7.5.5 |
| Remote indicator | Required when the detector LED is not visible from the floor; must include an accessible test/reset switch | NFPA 72 §17.7.5.6 |
| Wiring supervision | Supervised when connected to a fire alarm system — open, short, and ground faults generate a trouble signal | NFPA 72 §10.17 |
| Function | Shuts down the HVAC fan on smoke detection; produces supervisory or alarm signal per the AHJ | IMC §606.4 |
Flame & Radiant Energy Detectors
NFPA 72 Section 17.8 covers radiant energy–sensing fire detectors — devices that watch for the optical signature of a flame rather than smoke or heat. They alarm in seconds instead of the minutes a spot detector can take, which makes them the right call for high-ceiling, open, or outdoor spaces where smoke and heat don't travel reliably to a ceiling device.
Detector Types
- Ultraviolet (UV): Detects short-wavelength UV at ignition. Very fast, but sensitive to welding arcs and lightning.
- Infrared (IR): Tuned to the 4.3 μm CO₂ emission band with flame-flicker analysis. Penetrates smoke and oil mist better than UV.
- UV/IR combined: Requires simultaneous signal on both bands before alarming. Cuts false alarms from single-band sources.
- Multi-spectrum IR (MSIR, triple-IR): Compares multiple IR bands to tell real flames from hot surfaces, arc welding, and sunlight. Typical choice for petrochemical and aircraft-hangar applications.
- Spark/ember detectors (§17.8.3.3): IR-biased devices for dark enclosures — conveyors, ductwork, and dust-collection lines — that respond to embers moving in a fuel stream.
Typical Applications
- Aircraft hangars, refineries, LNG/LPG facilities, loading racks — MSIR for long-range detection through oil mist
- Hydrogen and alcohol fuels (low-luminosity flames) — UV or UV/IR because those flames emit strongly in UV
- Automotive paint booths — MSIR, because solvent vapor attenuates UV
- Outdoor yards with welding or sun exposure — UV/IR or MSIR to reject arc and solar signatures
- Turbine enclosures, munitions storage, offshore platforms — MSIR for open-volume coverage
Spacing and Placement
Unlike spot smoke detectors, flame detectors have no fixed spacing grid. NFPA 72 §17.8.3.2.1 requires an engineering evaluation that accounts for fire size, fuel, detector sensitivity and field of view, distance to the hazard, atmospheric absorption, extraneous radiant sources, and required response time. Spacing follows the detector's listed range and cone of vision on the product datasheet.
Watch for: Line-of-sight obstructions. Any pipe, structural member, or piece of equipment inside the detector's cone of vision creates a blind zone. Re-survey any space after equipment changes.
Listing and Performance Standard
FM 3260, "Radiant Energy–Sensing Fire Detectors for Automatic Fire Alarm Signaling," is the primary performance standard covering both flame and spark/ember detectors. The 2025 edition of NFPA 72 also defines thermal image fire detectors as a distinct category (Section 17.12), which are covered separately in the New Technology section below.
Inspection & Testing Requirements (Chapter 14)
| Component | Visual | Testing | Records |
|---|---|---|---|
| Control Panel | Weekly/Monthly | Annual | 5 years minimum |
| Smoke Detectors | Semi-Annual | Annual functional | Sensitivity records |
| Heat Detectors | Semi-Annual | Annual test | Test results |
| Notification Appliances | Semi-Annual | Annual | Candela verification |
| Batteries | Monthly | Semi-Annual load | Replacement dates |
Sensitivity Testing Requirements
- Year 1: Tested to ensure within listed and marked sensitivity range
- Year 2: Not required if Year 1 passed
- Year 3 and after: Every other year thereafter
- Devices outside range must be cleaned and retested or replaced
- Records must show sensitivity measurement values
Detector Replacement Schedule
NFPA 72 Section 14.4.5.3 sets maximum service life for detection devices. After these intervals, detectors must be replaced regardless of whether they still pass testing. The manufacture date is printed on the device label.
| Device | Replace After | Reference |
|---|---|---|
| Smoke detectors | 10 years from manufacture date | 14.4.5.3 |
| Carbon monoxide detectors | 5 years (or per manufacturer) | 14.4.5.3 |
| Heat detectors (restorable) | No fixed limit; replace if fails testing | 14.4.5.2 |
| Heat detectors (non-restorable) | 15 years from manufacture date | 14.4.5.2 |
These limits apply to both commercial and residential systems. A smoke detector that passes its annual sensitivity test at year 9 still has to be replaced at year 10. The date on the back of the detector is what counts, not the installation date.
For practical guidance on signal categories, communication path management, and account instruction controls, see this NFPA 72 monitoring basics for commercial buildings guide.
New Technology Requirements (2025)
Thermal Imaging Fire Detectors (Section 17.12)
- Detect temperature changes using thermal imaging technology
- Must have clear line of sight to potential hazards
- Alarm on temperature rate-of-rise within field of view
- Supervisory signal required when view is obstructed
- Listed for specific hazard and environment applications
Wireless System Requirements
- Maximum 200 seconds check-in interval for critical devices
- Mesh networking permitted with redundant communication paths
- Battery life calculation required (minimum 1 year)
- Signal strength monitoring and low battery alerts
- Protection against interference and jamming
Annunciator Requirements
A fire alarm annunciator is a display panel, usually mounted near the main entrance, that shows firefighters and building personnel which zone or device has activated. In multi-zone commercial buildings, the annunciator is often the first thing the fire department checks on arrival. Residential systems with multiple zones may also include a simplified annunciator or remote keypad.
Placement and Visibility
- NFPA 72 Section 10.18 requires annunciators to be located where required by the AHJ, typically at the main entrance or fire command center
- Indicators must be visible under normal and emergency lighting conditions
- All zone labels, LED indicators, and status text must remain legible at all times
- Annunciators serving multiple buildings must clearly identify each building
Labeling and Modifications
The annunciator is part of a UL-listed fire alarm assembly. Any modification, including painting, covering, or relocating the unit, can affect the listing and must be evaluated carefully.
- Zone labels and LED indicator windows must never be obstructed or painted over
- Painting the flat surround of a cover plate does not affect electrical functionality, but the AHJ has final say on whether it passes inspection
- Replacement cover plates in different finishes are available from most manufacturers and avoid any listing concerns
- Permanently mounted signs, artwork, or decorative covers that obscure any indicator are a code violation
Tip: If you want to paint or color-match an annunciator cover plate, mask off all indicator lights, LED windows, and text labels before painting. Check with your alarm monitoring company and local fire marshal before making any changes. A manufacturer-supplied replacement plate in the right finish is always the safest route.
Residential vs. Commercial
| Feature | Residential | Commercial |
|---|---|---|
| Typical format | Remote keypad or simplified LED panel | Full graphic or LED zone map |
| Location | Near main entry or master bedroom | Main entrance or fire command center |
| AHJ scrutiny | Lower (often self-certified) | Higher (annual inspection required) |
| Cosmetic changes | Less likely to trigger inspection issues | Must be approved by AHJ before modification |
Chapter 26: Communication Pathways
Chapter 26 governs how fire alarm signals travel from the building to the central monitoring station. With POTS copper lines being retired by AT&T, Verizon, and Lumen, these requirements now apply primarily to cellular, IP, and MFVN communicators.
Signal Timing
Alarm signals must be displayed at the supervising station within 90 seconds of activation (Section 26.6.3.8). Single communication paths must be supervised at intervals of no more than 60 minutes, with failure reported within 60 minutes. Dual paths are supervised every 6 hours per path, with no single point of failure allowed to take down both paths.
2025 Edition Changes
The 2025 edition makes cybersecurity mandatory under new Chapter 11. Internet-connected fire alarm communicators fall under Security Level 3, the highest tier, requiring compliance with UL 2900, ANSI/ISA-62443, or the NIST Cybersecurity Framework. Annual review of access credentials and logs is now required.
New paragraphs 26.6.11.3 and 26.6.11.4 require communicators to be compatible with the latency and jitter characteristics of their network. If latency or jitter causes a communication failure, the system must generate a trouble signal at the panel.
Section 26.6.3.12.1 now requires all shared on-premises communication equipment to be listed as communications, IT, or telecommunications equipment. Secondary power must provide at least 24 hours of standby (or 8 hours with AHJ-approved risk analysis).
For a detailed comparison of communicator products and POTS replacement options, see our Fire Alarm Communicators Guide.
Chapter 27: Public Emergency Alarm Reporting Systems
Chapter 27 covers the municipal side of alarm reporting — the wired and radio-based infrastructure a public fire communications center uses to receive alarms directly from master boxes and publicly accessible pull boxes. It's distinct from Chapter 26, which governs private supervising stations (central, remote, or proprietary). Building-side auxiliary systems that feed into a municipal network fall under Chapter 27.
System Types Covered
- Auxiliary alarm systems: A building FACP retransmits to the public reporting network through a master box. Local energy (supervised, FACP-powered) and shunt (municipally powered) subtypes.
- Publicly accessible alarm boxes: The classic red street-corner pull box, operated by members of the public.
- Master boxes: Receive input from a building's auxiliary system — wired or radio.
- Wired and radio public reporting systems: The municipal plant itself — cable, repeaters, and receiving equipment at the fire communications center.
Key Subsections (NFPA 72-2022)
- §27.1 Application and scope
- §27.4 Communications methods
- §27.5 Alarm processing equipment, including Type A vs Type B (§27.5.2 — Type A required above 2,500 retransmitted alarms per year)
- §27.6 Alarm boxes — publicly accessible, master, and auxiliary
- Secondary power: minimum 24 hours of standby for alarm processing equipment
Current Status
Most large US cities have decommissioned street-corner pull boxes — Washington DC in the 1970s, followed by Atlanta, Baltimore, Dallas, Los Angeles, Philadelphia, and St. Louis in the decades after. Chapter 27 is still actively enforced in a smaller set of jurisdictions: several Massachusetts communities including Cambridge and Boston, parts of San Francisco, and many university, hospital, prison, and military-base campuses that operate their own public reporting networks.
When a building needs off-site monitoring today, Chapter 26 (a listed supervising station) is the modern default. Chapter 27 applies only when the AHJ requires connection to a public reporting system. In Massachusetts, the state Supreme Judicial Court ruled that municipalities cannot mandate radio master boxes as the only path — owners retain Chapter 26 alternatives.
Cable Penetration Firestopping (§10.6.4)
Every fire alarm cable, conduit, and raceway that passes through a fire-rated floor or wall has to be firestopped so the assembly keeps its rating. NFPA 72 §10.6.4 is the code hook — it requires that penetrations of fire-resistance-rated assemblies be protected per the applicable building code, which in the US means ASTM E814 or UL 1479 tested firestop systems. The panel installer usually gets credit for the wiring, but it is the low-voltage crew's sign-off that sticks with the penetration for the life of the building.
Why this matters. The panel and devices are listed and tested, but the moment an FPL cable crosses a 1- or 2-hour rated corridor wall, the wall's rating depends on a separate firestop system with its own F (flame) and T (temperature) rating. Unsealed cable sleeves, over-stuffed conduit, and missing putty pads are among the most common citations on fire alarm acceptance tests and annual inspections.
Four penetration types fire alarm work creates
| Penetration | Typical product | Rating target |
|---|---|---|
| Single FPL / FPLR / FPLP cable through drywall (≤ 4" opening) | Intumescent sealant, gun-grade | Match the wall (1hr F/T or 2hr F/T) |
| Conduit or EMT sleeve with cable bundle | Intumescent sealant + mineral wool backer, both sides | Match the assembly; sleeve must also be firestopped |
| Pull station, device back box, or annunciator on rated wall | Intumescent putty pad applied to the box exterior | Per UL 263 box-area and separation rules |
| Cable tray or large multi-cable penetration | Firestop pillow, dry block, or composite sheet | Engineered system, listed per ASTM E814 |
What gets cited on inspection
- • Unsealed conduit sleeves. Conduit stubbed through a rated wall without intumescent sealant on both faces leaves the assembly unrated for the conduit's internal cross-section.
- • Missing putty pads on device boxes. UL 263 limits unprotected box area per 100 sq ft of wall face; putty pads are how alarm and data installers usually hit that target on rated walls.
- • Over-stuffed cable bundles. Listed systems have a maximum visual fill percentage. A bundle grown beyond the tested fill after a MAC request voids the firestop system even if the sealant looks intact.
- • Wrong product for the penetrant. Plastic conduit or PVC data cable jacket needs an intumescent collar that expands to close the opening when the plastic burns away. Drywall sealant alone does not satisfy the test for plastic penetrants.
Firestop test methodology and UL 1479 system numbering are covered in detail on the UL 1479 standard page, and the parallel US test is on the ASTM E814 page. Both tests produce the F/T rating pair that §10.6.4 ultimately relies on.
Data Center & IT Room Applications (NFPA 72 × NFPA 75)
Data centers and IT rooms are where NFPA 72 gets hardest. NFPA 75 — the standard for fire protection of information technology equipment — requires the IT room envelope to be rated (minimum 1-hour, 2-hour when automatic suppression is offline beyond allowable limits) and requires an automatic fire detection system that reports to the building's NFPA 72 panel. The detection approach, the penetration density, and the MAC cadence all look different than a conventional office floor.
Why spot smoke detectors fail in data halls
High-density data halls run 20–100 air changes per hour through computer-room air handlers (CRAH units) and hot-aisle containment. Smoke produced by an incipient cable or PDU fault is flushed past ceiling-mounted spot smoke detectors faster than their chambers can respond. NFPA 72 §17.7 recognizes this airflow problem and permits very early warning smoke detection (VEWSD) via air-sampling systems — the technology commonly installed as VESDA or equivalent.
Typical data center detection specifies sampling ports above the ceiling, in the room plenum, under the raised floor, and at each CRAH return. NFPA 75 §8.3 (current edition) calls for detection at or near the ceiling AND within cable trays and under the raised floor — which is how the air-sampling pipe runs end up crossing every fire-rated partition in the white space.
The penetration-density problem
A typical enterprise data hall has 50–500+ cable tray, power, chilled water, and branch circuit penetrations per fire-rated wall. Every MAC (move / add / change) work order that adds structured cabling through a tray crosses the same rated boundary again. Firestop on an active data hall is not a one-time install — it is a consumable that gets opened and re-sealed monthly.
The MAC problem. Most firestop audit findings in data centers come from MAC work: a new cable pulled through an existing sleeve, sealant cut away to feed the new cable, and the firestop never restored. Spec-driven operators require re-enterable intumescent sealants so the field can add cables without destroying the system — the dry-set epoxy firestops common in commercial buildings are the wrong product here.
What NFPA 72 + NFPA 75 compliance actually requires
| Zone | NFPA 72 requirement | Firestop consequence |
|---|---|---|
| White space / data hall | Air-sampling detection to building panel (§17.7) | Sampling pipe network crosses every rated partition; each crossing firestopped per §10.6.4 |
| Under raised floor | Detection required (NFPA 75 §8.3) | Sub-floor penetrations for power whips + CRAH chilled water lines |
| Cable tray crossing fire wall | Monitored, addressable annunciation per zone | Engineered multi-cable firestop system (pillow, dry module, or re-enterable sealant) |
| IT room to corridor | 1-hour or 2-hour rated envelope (NFPA 75) | Every data jack back-box on the rated side gets an intumescent putty pad |
| MDF / IDF closets | Smoke detection tied to building panel | Sleeves between IDF and served floor; recurring MAC traffic |
Deeper reading on the data center cluster
NFPA 75 Firestop Compliance for Data Centers
The operational guide: penetration-type inventory, MAC-survey workflow, common audit findings, and product categories for re-enterable data-hall firestop.
Firestop Compliance for Mission-Critical Facilities
Cross-facility hub covering audit cadence, contractor selection, documentation, and the four archetypes (data centers, hospitals, labs, utility control rooms).
NFPA 75 Standard Reference
The code itself: scope, risk analysis, room construction, and firestop sections that drive the penetration program.
Related Standards
Fire alarm system requirements are triggered by NFPA 101 Life Safety Code and by IBC Chapter 10 based on occupancy classification. Emergency power for fire alarm systems is covered by NFPA 110 Emergency Power Systems, and the emergency lighting equipment that runs during an alarm event is listed to UL 924.
Several suppression and life-safety standards interface with the fire alarm panel. Sprinkler waterflow and tamper signals come in from NFPA 13 Sprinkler Systems and NFPA 14 Standpipe Systems. Commercial kitchen suppression systems listed to UL 300 and installed per NFPA 96 must report activation to the building fire alarm panel.
Portable fire extinguisher locations handled under NFPA 10 are typically marked alongside manual pull stations, and ISO 7010 fire equipment signs (F005 for fire alarm call points) are the international pictograms that identify each pull station location.
Frequently Asked Questions
Can I paint a fire alarm annunciator cover plate?
Painting the flat surround area of the cover plate won't affect the electrical functionality. However, you must mask off all indicator lights, LED windows, and labels so they remain clearly visible. The annunciator is part of a UL-listed assembly, so any modification could be flagged during inspection. Check with your alarm monitoring company and local fire marshal (AHJ) before painting. A manufacturer-supplied replacement plate in a different finish is the safest alternative.
Does modifying fire alarm equipment void the UL listing?
It depends on the modification. Painting a non-functional surface like a cover plate surround is unlikely to affect the listing in practice, but UL listings apply to the assembly as tested. Structural changes, drilling new holes, replacing components with non-listed parts, or obstructing any functional element can void the listing. The authority having jurisdiction (AHJ) makes the final determination during inspection.
What are the labeling requirements for fire alarm annunciators?
NFPA 72 requires all annunciator zone labels, status indicators, and LED windows to remain legible and visible under both normal and emergency lighting. Labels must clearly identify each zone or device. If labels become faded, damaged, or obscured, they must be replaced. Covering labels with paint, stickers, or decorative elements is a code violation.
How often do fire alarm systems need to be inspected?
NFPA 72 Chapter 14 sets the schedule. Control panels require weekly or monthly visual inspection and annual testing. Smoke detectors need semi-annual visual checks, annual functional testing, and sensitivity testing starting in year one and every other year after that. Notification appliances (horns, strobes) are tested annually. All inspection records must be retained for a minimum of five years.
When do smoke detectors need to be replaced under NFPA 72?
Smoke detectors must be replaced 10 years from the manufacture date (Section 14.4.5.3), regardless of whether they still pass testing. Carbon monoxide detectors have a 5-year replacement cycle or per manufacturer recommendation. Non-restorable heat detectors must be replaced at 15 years. The date on the back of the device is what counts, not the install date.
What modifications to fire alarm equipment require AHJ approval?
Any modification that changes the appearance, location, or function of a fire alarm component should be reviewed by the authority having jurisdiction before proceeding. This includes relocating panels or annunciators, changing communicator types (e.g., POTS to cellular), adding or removing zones, painting or covering equipment, and replacing components with different models. For cosmetic changes to residential systems, the risk is lower, but checking with your alarm company first is still recommended.
What's the difference between addressable and conventional fire alarm systems?
Conventional systems wire devices in zones on Initiating Device Circuits (IDCs). The panel reports at the zone level — "Zone 3 alarm" — without identifying which device tripped. Addressable systems put each device on a Signaling Line Circuit (SLC) with a unique digital address, so the panel reports the exact device and location. NFPA 72 Chapter 23 permits both. Conventional is usually the right fit for small single-tenant buildings with simple layouts. Addressable is typical for larger, multi-tenant, or life-safety occupancies where precise annunciation matters. Compact addressable panels have closed the price gap on small installs.
How high should a fire alarm pull station be mounted?
NFPA 72 §17.14.8.4 requires the operable handle of a manual fire alarm box between 42 and 48 inches above the floor. This range was narrowed from the older 42–54 in allowance starting with the 2013 edition to match the 2010 ADA §308 side-reach limit of 48 inches. Pull stations must also be within 5 feet of each exit doorway (§17.14.8.5).
When is a duct smoke detector required?
The International Mechanical Code triggers duct smoke detection on supply air systems exceeding 2,000 CFM (§606.2.1) and on return air systems exceeding 2,000 CFM (§606.2.2). Multi-story return risers serving two or more stories with combined capacity over 15,000 CFM need additional detection at each floor (§606.2.3). Installation follows NFPA 72 §17.7.5: sampling tube sized to duct width, accessible for testing, and a remote indicator required when the detector LED isn't visible from the floor. The detector's job is to shut down the HVAC fan — it's not a substitute for area smoke detection.
Code-Driven Firestop Products (§10.6.4)
NFPA 72 itself does not list devices — fire alarm hardware is selected by the integrator from their listed panel line. The code-driven product demand this page surfaces is firestop: every penetration through a rated assembly needs an ASTM E814 or UL 1479 listed system. For data centers and IT rooms operating under NFPA 75, re-enterable intumescent sealants, putty pads for device back boxes, collars for plastic conduit, and pillows for cable-tray crossings are the working SKU set.
Was this resource helpful?
Your feedback helps us improve our technical resources and guides.
