NFPA 2001: Clean Agent Fire Systems

Overview

NFPA 2001 is the standard for clean agent fire extinguishing systems, which use gaseous or vaporizing liquid agents that leave no residue. These systems replaced halon systems after the Montreal Protocol phase-out and are designed to protect areas where water damage from sprinklers would be catastrophic.

The 2022 edition covers halocarbon and inert gas total flooding systems, providing requirements for design, installation, testing, inspection, and maintenance. Clean agents extinguish fires through heat absorption, chemical interaction, or oxygen displacement.

Clean Agent Types

NFPA 2001 covers two families of clean agents plus references a third under a separate standard.

Halocarbon agents suppress fire primarily through heat absorption. FM-200 (HFC-227ea) is the most widely installed halocarbon agent. FK-5-1-12 (formerly marketed as Novec 1230) is a fluoroketone with zero ozone depletion potential and a GWP of 1. Ecaro-25 (HFC-125) is used for specialized applications.

Inert gas agents suppress fire by reducing oxygen concentration below the combustion threshold (typically to 12 to 12.5%). IG-541 (Inergen) is a blend of nitrogen, argon, and CO2. IG-55 (Argonite) is 50% nitrogen and 50% argon. IG-100 is pure nitrogen, and IG-01 is pure argon. Inert gases produce no decomposition products but require more storage space than halocarbons.

Carbon dioxide systems are covered under the separate NFPA 12 standard, not NFPA 2001.

Agent Comparison

Side-by-side comparison of the four agents most commonly specified for data centers and high-value spaces. Discharge time, safety margins, environmental impact, and storage requirements vary significantly between halocarbon and inert gas options.

Discharge time per NFPA 2001 Section 5.4.2. NOAEL values per NFPA 2001 Table 1.5.1.2.1(a). GWP values per EPA AIM Act reporting.

System Applications

Clean agent systems protect high-value or mission-critical facilities:

• Data Centers: Server rooms and network operations centers
• Telecommunications: Switching centers and control rooms
• Museums: Art galleries and archive storage areas
• Medical Facilities: MRI rooms and imaging equipment areas
• Power Generation: Control rooms and switchgear rooms
• Aviation: Flight simulators and air traffic control centers
• Marine: Engine rooms and control spaces on vessels

Data Center Applications

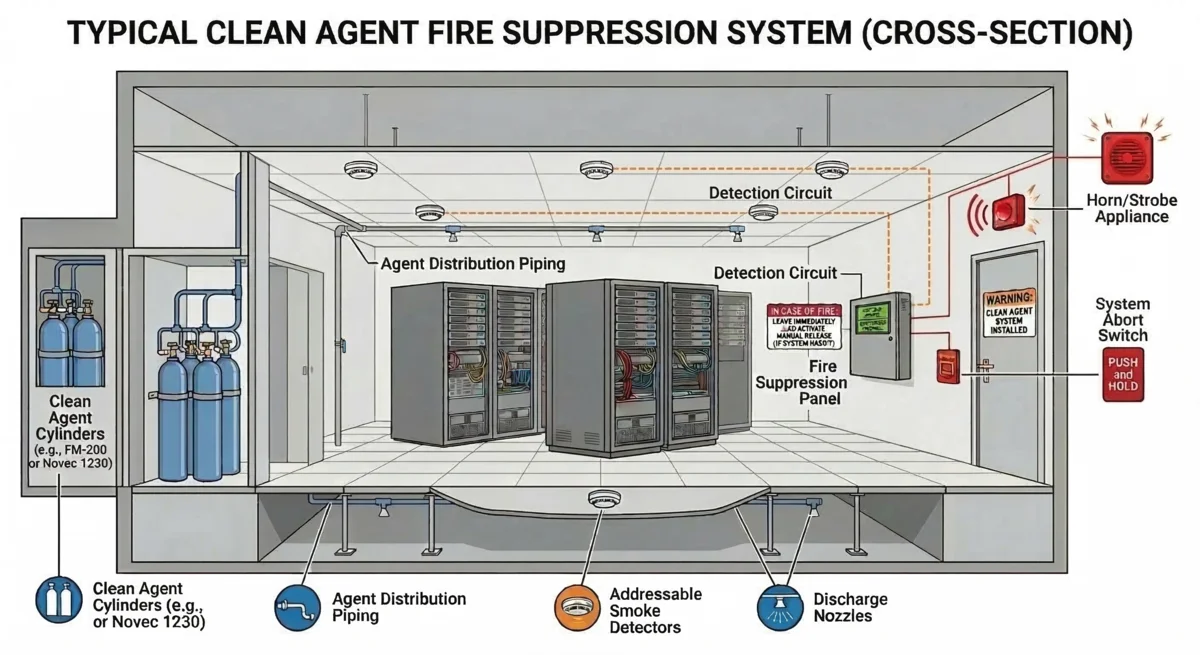

Typical clean agent system layout for a data center: agent cylinders, distribution piping, discharge nozzles, cross-zoned detection, abort switch, and warning signage

Data centers, server rooms, and network operations centers are among the most common applications for clean agent systems. The primary advantage over water-based suppression is speed of return to service: a clean agent discharge leaves no residue, no water damage, and no corrosion on electronics. A properly designed system can suppress a fire and return the room to operation within hours rather than days.

Detection Strategy

Data center clean agent systems use cross-zoned detection with a dual-action sequence to prevent false discharge. Two independent detection circuits (typically VESDA very early smoke detection or photoelectric detectors) must both alarm before the system initiates the pre-discharge countdown. A single detector alarm triggers an alert but does not release agent. This dual-action requirement prevents accidental discharge from a single faulty detector, dust, or condensation.

Acoustic Nozzle Requirements

Inert gas systems (IG-541, IG-55) discharge at approximately 140 dB, which can damage magnetic hard disk drives. FM Global Data Sheet 5-32 (Data Centers and Related Facilities) requires acoustic or silent discharge nozzles that keep noise levels below 110 dB in data centers with spinning-disk storage. This requirement does not apply to halocarbon agents (FM-200, FK-5-1-12) because their lower discharge volume produces less noise. Solid-state storage (SSDs) is not affected by discharge noise.

Agent Selection for Data Centers

FM-200 has been the default data center agent for decades, but the AIM Act is phasing down HFC production by 85% by 2036. Existing FM-200 systems remain legal indefinitely, and reclaimed agent is expected to be available for 15 to 20+ years, but new installations increasingly specify FK-5-1-12 or inert gases. FK-5-1-12 (formerly marketed as Novec 1230 by 3M) remains available as a generic compound from Fike (SF 1230), Kidde (Fluoro-K), and other manufacturers despite 3M's exit from PFAS chemicals in 2025.

Inert gases (IG-541, IG-55) carry no regulatory risk and zero global warming potential, but require significantly more storage space (high-pressure cylinders at 200 to 300 bar) and acoustic nozzles for data centers with HDDs. For a detailed comparison, see the agent comparison table above.

For fire detection panel requirements and signal transmission standards, see our NFPA 72 Fire Alarm Code guide.

Design Requirements

Critical design specifications per NFPA 2001:

• Agent Concentration: Minimum design concentration = 1.2 × minimum extinguishing concentration
• Discharge Time: 95% of agent discharged within 10 seconds (halocarbons) or 60 seconds (inert gases)
• Hold Time: Maintain concentration for minimum 10 minutes
• Detection: Cross-zoned smoke detection for automatic activation
• Pressure Relief: Venting required to prevent structural damage
• Piping Network: Hydraulically balanced with approved fittings
• Nozzle Placement: Achieve uniform agent distribution

Room Integrity Testing

Room integrity is crucial for clean agent system effectiveness:

• Fan Door Test: Measures room leakage to predict agent retention time
• Initial Testing: Required upon system installation
• Periodic Testing: Annual testing unless extended by risk assessment
• Acceptance Criteria: Must maintain concentration above minimum for required time
• Sealing Requirements: Penetrations, doors, and HVAC dampers must be sealed
• Documentation: Test reports with leakage calculations and retention times

Safety Considerations

Personnel safety requirements for clean agent systems:

• Pre-discharge Alarm: Audible and visual warning with time delay
• Abort Switch: Manual abort capability during countdown
• NOAEL/LOAEL: Design concentrations below adverse effect levels for occupied spaces
• Egress Time: Personnel must evacuate within pre-discharge delay
• Signage: Warning signs at entrances to protected spaces
• Training: Personnel training on system operation and safety procedures
• Breathing Apparatus: Required for entry after discharge

Signage, Alarms, and Abort Switches

NFPA 2001 requires specific warning signs, pre-discharge alarms, and abort capability for clean agent systems. These requirements exist because agent discharge in an occupied space creates immediate safety concerns: reduced oxygen (inert gases), toxic decomposition products (halocarbons), and pressure changes.

Warning Signs (Section 4.3.5.5)

Warning and instruction signs must be posted at every entrance to the protected space and inside the protected area where the design concentration exceeds levels approved for normally occupied spaces. Signs must also be posted outside clean agent cylinder storage rooms. All signs must follow ANSI Z535.2 format, color, and letter style. For ISO 7010 compliant warning sign pictograms, see our W-Series Warning Signs guide.

Pre-Discharge Alarm (Section 4.3.5.6)

A pre-discharge alarm with time delay must be provided to allow personnel evacuation before agent release. The time delay is typically 30 or 60 seconds and may only be used for personnel evacuation or to prepare the hazard area for discharge. Both audible (horns or bells) and visual (strobes) notification devices must activate during the countdown. Pneumatic pre-discharge alarms must be operated by an inert gas.

Abort Switch (Section 4.3.5.4)

The abort switch must be a dead-man type that requires constant manual pressure to prevent discharge. Releasing the switch allows the system to discharge if the time delay has expired. The abort switch must be located within the protected area and near the means of egress so personnel can hold the abort while confirming the alarm is false, then exit before releasing. Operating the abort must produce both audible and visual indication that the system is impaired.

Occupied Space Limits (Section 1.5.1.2)

For halocarbon agents in normally occupied spaces, the design concentration must not exceed the NOAEL, and personnel exposure must be limited to 5 minutes maximum. For inert gas agents, concentrations up to 43% (reducing oxygen to 12%) allow 5-minute exposure. Concentrations of 43 to 52% (oxygen 12 to 10%) allow only 3-minute exposure. Concentrations above 52% (oxygen below 10%) are permitted only in normally unoccupied spaces with a 30-second maximum exposure window.

Inspection and Maintenance

NFPA 2001 Chapter 8 requires regular inspection and testing by qualified personnel. Clean agent systems are not discharged during routine testing.

For broader fire system inspection requirements, see our Fire Inspection & Compliance Guide.

Portable Clean Agent Extinguishers (UL 2129)

NFPA 2001 covers fixed clean agent systems, but the same agents show up in portable extinguishers. UL 2129 is the standard that covers the construction and performance of halocarbon clean agent hand-held extinguishers. These are the portable units you keep in server rooms, control rooms, and anywhere a fixed system protects the space but you still need a grab-and-go option.

Three agent families are common in UL 2129 listed extinguishers:

All three are electrically non-conductive, leave no residue, and are rated for Class B (flammable liquid) and Class C (electrical) fires. Some models also carry a Class A (ordinary combustibles) rating. NFPA 10 governs placement, inspection, and maintenance of portable extinguishers regardless of agent type.
