NFPA 13: Automatic Sprinkler Systems

NFPA 13, Standard for the Installation of Sprinkler Systems, is the document that tells a designer and a contractor how to build an automatic fire sprinkler system. It sets the occupancy hazard classifications, the water supply and hydraulic design criteria, the sprinkler spacing and obstruction rules, the acceptable materials, and the acceptance tests that have to pass before the system goes into service.

The current edition is NFPA 13-2025. NFPA revises the standard on a three-year cycle: the 2022, 2019, and 2016 editions came before it, and the next edition is scheduled for 2028.

The performance record behind all of this is strong, and it is worth knowing the real numbers rather than the rounded ones that circulate. In NFPA's analysis of 2017 through 2021 US structure fires, the civilian death rate per fire was 90 percent lower where sprinklers were present than in properties with no automatic extinguishing system, and the injury rate was 32 percent lower. Fire stayed confined to the object or room of origin in 94 percent of those fires, against 70 percent where no system was present. In home fires specifically, average property loss per fire was 55 percent lower.

Reliability is high but not automatic. In fires large enough to activate them, sprinklers operated 92 percent of the time, and when they operated they controlled the fire in 97 percent of cases, so the combined figure is 89 percent. The most common reason a system failed to operate at all was that it had been shut off before the fire started. That single finding is the argument for the inspection and impairment discipline covered under NFPA 25. One sprinkler was enough in 77 percent of the fires where any operated, and five or fewer operated in 96 percent.

NFPA 13 covers five primary sprinkler system types, each designed for specific building conditions and hazard environments. Selecting the correct system type is one of the most consequential decisions in fire protection design.

• Wet Pipe Systems: Pipes continuously filled with water, most common and reliable type. Used in heated spaces where freezing is not a concern. Fastest response time since water is immediately available at the sprinkler head. Accounts for approximately 70% of all installed systems.

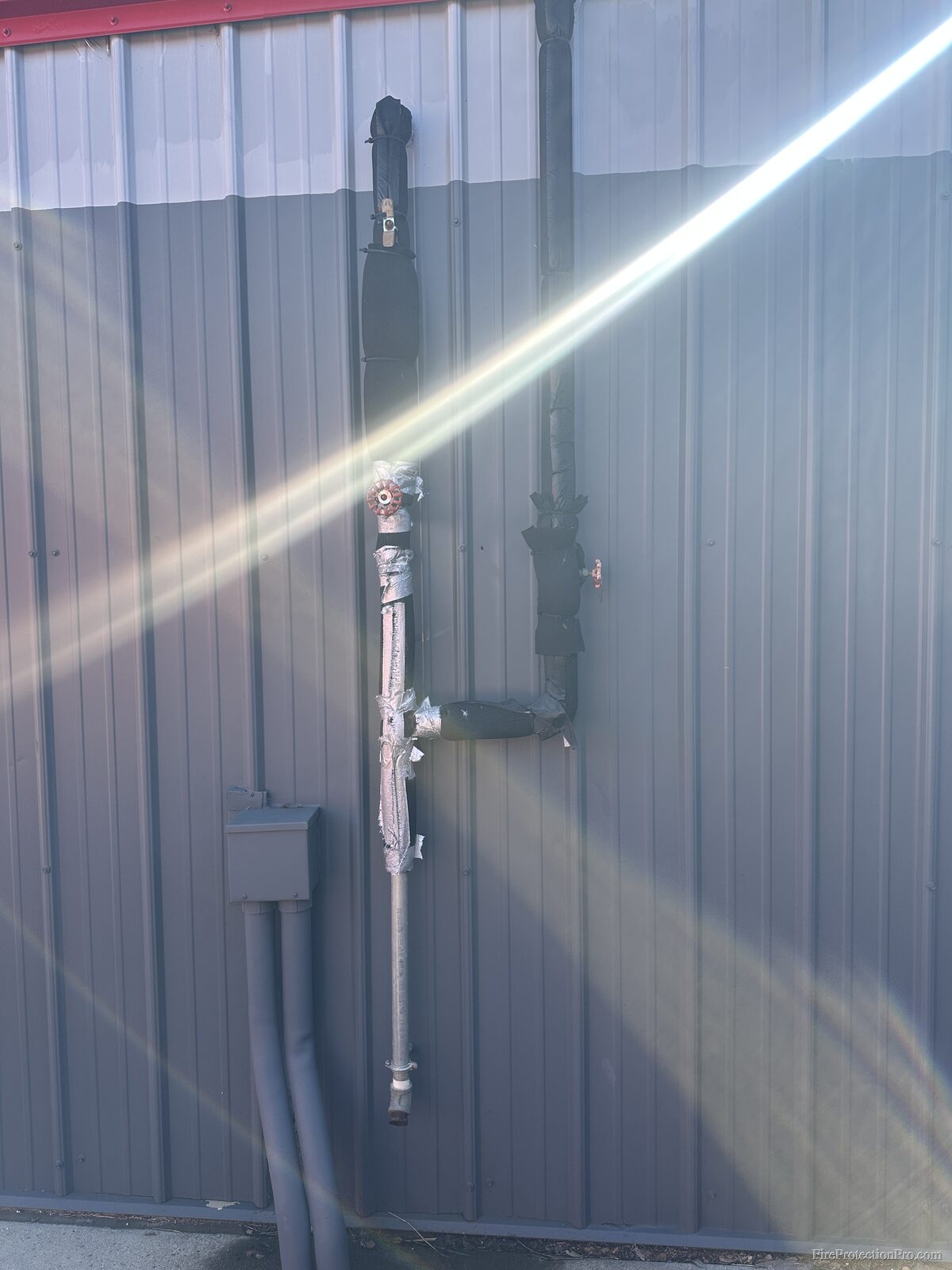

• Dry Pipe Systems: Pipes filled with pressurized air or nitrogen, used where freezing is a concern. Common in unheated warehouses, parking garages, loading docks, and cold storage facilities. Water enters the piping only after a sprinkler activates and the air pressure drops, resulting in a 30-60 second delay compared to wet systems.
• Preaction Systems: Combination of dry pipe and deluge systems, requires dual activation. Both a detection event (smoke or heat detector) and a sprinkler head opening. Used in data centers, museums, archives, and telecommunications rooms where accidental discharge would cause significant damage. Available in single-interlock, double-interlock, and non-interlock configurations.
• Deluge Systems: Open sprinklers with dry piping, used for high-hazard areas where rapid fire spread is expected. All heads discharge simultaneously when the deluge valve opens. Common in aircraft hangars, chemical processing plants, power generation facilities, and transformer yards.
• Antifreeze Systems: Wet pipe systems charged with an antifreeze solution to protect a limited area from freezing. NFPA 13 restricts where these are permitted and which solutions and concentrations are allowed, and the restrictions have tightened across recent editions. Confirm the permitted solution and concentration against the edition your jurisdiction has adopted before specifying one.

System Type Comparison

Sprinkler heads are classified by their orientation, response characteristics, and coverage capabilities. Selecting the correct head type affects system performance, aesthetics, and code compliance.

• Pendant: Hangs down from the supply piping and sprays water in a circular pattern below the deflector. The most common type for standard ceiling installations in offices, retail, and healthcare facilities.
• Upright: Installed above the piping with the deflector on top, spraying water upward against the deflector to create a hemispherical pattern. Used in exposed piping installations such as warehouses, mechanical rooms, and industrial facilities.
• Sidewall: Mounted on walls near the ceiling and designed to discharge water away from the wall in a half-pattern. Ideal for corridors, small rooms, and spaces where ceiling-mounted piping is impractical.
• Concealed: Recessed into the ceiling behind a decorative cover plate that drops away at a lower temperature than the sprinkler activation temperature. Used where aesthetics matter, such as hotel lobbies, executive offices, and high-end retail.
• Extended Coverage (EC): Designed to protect larger areas per head, reducing the total number of sprinklers needed. Available in both pendant and upright orientations. Requires careful hydraulic calculation to ensure adequate coverage at the design area boundaries.
• ESFR (Early Suppression, Fast Response): High-K-factor heads designed to suppress fires in high-piled storage without the need for in-rack sprinklers. Deliver large volumes of water at high pressures to penetrate the fire plume. Used in distribution centers and warehouses with storage heights up to 40 feet.

Sprinkler Head Specifications

Temperature ratings also affect head selection. Standard temperature heads (135-170°F) are used in most occupied spaces. Intermediate (175-225°F) and high (250-300°F) temperature heads are required near heat sources such as skylights, attics, commercial kitchens, and mechanical rooms. Using a head with the wrong temperature rating is one of the most common code violations found during inspections.

NFPA 13 defines occupancy hazard classifications that determine design requirements. The classification drives the design density (water application rate), remote area size, and hose stream allowance. Incorrectly classifying the occupancy is a fundamental design error that can result in an undersized system.

There are three classifications. Ordinary hazard and extra hazard are each split into two groups, which gives the five categories a designer actually works with. Classification is based on the quantity and combustibility of what is in the space. Once it is settled, the design criteria follow, usually as a density of water applied over a specific area.

What each classification means

• Light Hazard: the lowest fire severity potential in the standard. NFPA 13 defines it as spaces with low quantity and combustibility of contents.
• Ordinary Hazard Group 1: moderate fire severity. The quantity of combustibles is greater than light hazard, but combustibility is still low. The definition carries a stockpile height limit of 8 ft (2.4 m).
• Ordinary Hazard Group 2: also moderate severity, but with a greater quantity than either light hazard or group 1, and contents that are more combustible than group 1. Stockpiles may go to 12 ft (3.7 m), though the 8 ft (2.4 m) ceiling still applies to contents with higher heat release rates.
• Extra Hazard Group 1: a very high quantity of combustibles, including spaces where fire can spread rapidly. Areas where dust and lint are present are the example NFPA gives.
• Extra Hazard Group 2: the highest classification. Very high quantity of combustibles, substantial amounts of combustible or flammable liquids, or extensive shielding of combustibles from the sprinkler discharge.

Why this matters to a facility buyer

Classification is not paperwork. It sets how much water the building has to be able to deliver, which decides whether the existing service is adequate or a fire pump and a tank enter the budget. It is also the thing that quietly goes out of date. A light hazard office that takes on pallet storage, or an ordinary hazard group 1 space that starts stocking taller or more combustible product, has changed its classification whether or not anyone filed a drawing. The system was sized for the old use. If you are changing what a space holds, that is the moment to have the classification re-checked, not after an inspector raises it.

Read the densities above as reference points, not as the whole answer. NFPA 13 does not fix one density per classification. It pairs a density with a design area on a density and area curve, so trading a larger remote area for a lower density is a legitimate design move within the table. The numbers a designer lands on come out of that curve for the specific project, and ceiling height can override it. The 2025 edition carries its own criteria for ceilings over 30 ft (9.1 m), where hazard class, sprinkler K-factor, response type, and orientation are constrained together.

Mixed-use buildings often contain multiple occupancy classifications. In these cases, each area is designed to its own classification, and the water supply must meet the most demanding scenario. Storage areas within otherwise light-hazard buildings frequently require a separate analysis under the storage chapters of NFPA 13.

Sprinkler system design integrates water supply analysis, hydraulic calculations, pipe sizing, and component selection to deliver the required density over the design area.

Water Supply Requirements

Every sprinkler system design begins with a water supply analysis. The available water supply must meet or exceed the system demand at the base of the sprinkler riser.

• Static Pressure: The pressure in the system with no water flowing. Measured at the point of connection to the water supply.
• Residual Pressure: The pressure remaining when water is flowing at a measured rate. This is the key number that determines what the supply can actually deliver under demand.
• Flow Rate: Measured in gallons per minute (gpm). The required flow depends on the occupancy classification, design area, and hose stream allowance.
• Municipal Supply: Most common source. A fire flow test is required to establish the supply curve. Results are valid for a limited period and may need to be repeated if conditions change.
• Fire Pump: Required when the municipal supply cannot meet the system demand at the required pressure. Sized per NFPA 20 to boost pressure while maintaining flow.
• Storage Tanks: Gravity tanks, pressure tanks, or ground-level tanks provide a dedicated water supply where municipal water is unreliable or unavailable. Tank capacity must cover the system demand duration (typically 30-120 minutes depending on hazard).

Hydraulic Calculations

• Hydraulic Calculations: Required for all systems except residential and limited area systems. Calculations prove that the water supply can deliver the required density over the most hydraulically demanding area.
• Sprinkler Spacing: Maximum coverage area per sprinkler based on hazard classification. Light hazard allows up to 225 ft² per head; extra hazard may limit coverage to 100 ft² per head.
• Design Area: The most hydraulically demanding area based on occupancy and storage arrangement. Ranges from 1,500 ft² for light hazard to 5,000 ft² or more for high-piled storage.
• Hose Stream Allowance: Additional water demand for manual firefighting operations. Light hazard requires 100 gpm; extra hazard requires 250-500 gpm depending on the group.
• System Components: Listed components including sprinklers, piping, valves, and hangers. All components must be UL listed or FM approved for their intended use.
• Seismic Protection: Bracing requirements for areas subject to earthquakes. Lateral and longitudinal bracing required per ASCE 7 seismic design categories.

Pipe Materials

NFPA 13 permits several piping materials, each with different cost, installation, and performance characteristics.

Obstruction Rules

Proper clearance between sprinkler deflectors and obstructions is critical for spray pattern development. Obstructed sprinklers are one of the leading causes of sprinkler system failure in actual fires.

• Deflector to Ceiling: Pendant and upright sprinklers require 1-12 inches between the deflector and the ceiling, depending on head type and construction. Standard pendant heads typically require 1-6 inches.
• Beam Clearance: Sprinklers must be positioned so that beams and other continuous obstructions do not impede the spray pattern. The distance from the obstruction determines whether additional heads are needed.
• 18-Inch Rule: A minimum 18-inch clearance must be maintained between the top of stored materials and the sprinkler deflector. This space allows the sprinkler discharge pattern to develop and reach the fire. Violations of this rule are among the most common inspection findings.
• Lights, Ducts, and Other Obstructions: NFPA 13 includes detailed tables for spacing around obstructions based on distance and depth below the deflector. The general rule: if an object is close enough to interfere with the spray pattern, sprinklers must be repositioned or additional heads added. Check the obstruction tables in Chapter 8 for exact distances.

NFPA publishes three separate sprinkler installation standards, and all three are currently in their 2025 editions. They are not tiers of quality. They have different goals, and the goal is what explains every other difference between them.

• NFPA 13, Standard for the Installation of Sprinkler Systems: aims at a reasonable degree of protection for both life safety and property protection. Because it targets property protection too, it leaves fewer unsprinklered areas and carries more robust design and installation requirements than the other two. At a minimum its goal is to control the fire and keep it from spreading until emergency services arrive.
• NFPA 13R, Standard for the Installation of Sprinkler Systems in Low-Rise Residential Occupancies: written to fill the gap between the other two and get more multi-family buildings sprinklered at all. It focuses on life safety and reduces cost through materials, design requirements, and permitted sprinkler omissions. It is more stringent than 13D because multifamily buildings carry higher occupant loads, stacked dwelling units, and longer egress times.
• NFPA 13D, Standard for the Installation of Sprinkler Systems in One- and Two-Family Dwellings and Manufactured Homes: applies only to one- and two-family dwellings, townhouses, and manufactured homes. Its goal is life safety by preventing flashover for the first 10 minutes of the fire, which buys occupants time to get out. Cost comes down through materials, design, and omitting sprinklers from spaces where fire loss statistics show few deadly fires start.

The practical consequence: all three deliver life safety, but NFPA 13 and NFPA 13R deliver a higher level of property protection than NFPA 13D. If the building owner cares about the building surviving rather than only the occupants getting out, that difference is the whole conversation.

NFPA 13R carries a hard ceiling on where it can be used. NFPA states that 13R systems can only be installed in residential occupancies up to four stories in height that do not exceed 60 ft (18 m) in height above grade plane. Both limits have to hold. A four-story residential building that clears 60 ft above grade plane is outside 13R, and the project falls back to a full NFPA 13 design. Adopted codes can be stricter than the NFPA scope statement: the 2021 IBC and IFC (Section 903.3.1.2) add fire department vehicle access elevation limits on top of the four-story and 60 ft caps, and local amendments vary.

Which standard a given project has to follow is set by the code the jurisdiction has adopted, not by NFPA 13 itself. Confirm it against the adopted code before design starts, because the choice cascades into water supply, coverage, and cost.

Three standards govern the water-based fire protection in most commercial buildings, and people mix them up constantly. The clean way to keep them apart is to ask who owns the obligation and when it applies. NFPA 13 is a construction-phase standard that binds the designer and the installing contractor. NFPA 25 is an operations standard that binds the building owner for as long as the building stands. NFPA 14 is a separate system entirely: piping and hose connections for the fire department, not automatic sprinklers.

Editions move independently, which is a common source of confusion on a spec. NFPA 13 is on its 2025 edition, NFPA 25 on its 2026 edition, and NFPA 14 on its 2024 edition. Your jurisdiction may enforce older ones. Never assume that adopting a current NFPA 13 means the other two moved with it.

Standpipes and sprinklers frequently share a supply main and a riser room, so the two designs get coordinated even though they answer to different standards. Where a building is under construction, alteration, or demolition, and the sprinkler system is not yet in service or has been taken out of service, the controlling document is NFPA 241, Standard for Safeguarding Construction, Alteration, and Demolition Operations. That is the window in which most sprinklered buildings are actually unprotected.

NFPA 13 prescribes requirements for piping, hanging, sprinkler positioning, valves, alarms, and fire department connections.

• Piping: Steel, copper, or CPVC materials meeting specific standards. Pipe sizing follows either hydraulic calculations or pipe schedule tables. Schedule 10 steel is most common for aboveground wet systems.
• Hangers: Proper spacing and type based on pipe size and material. Steel pipe 1-1/2" and smaller requires hangers at 12-foot intervals; 2" and larger requires 15-foot intervals. Seismic areas require additional lateral and longitudinal bracing.
• Sprinkler Position: Deflector orientation and distance from ceilings/walls must match the listing of the specific sprinkler model. Installing a pendant head in an upright position invalidates its listing.
• Obstructions: Rules for sprinkler placement around beams, ducts, and fixtures. The distance between the obstruction and the sprinkler determines whether additional heads are required on both sides.
• Control Valves: Listed indicating valves in accessible locations. OS&Y gate valves or butterfly valves with tamper switches are standard. All control valves must be supervised, either electronically or by a locked-open chain.

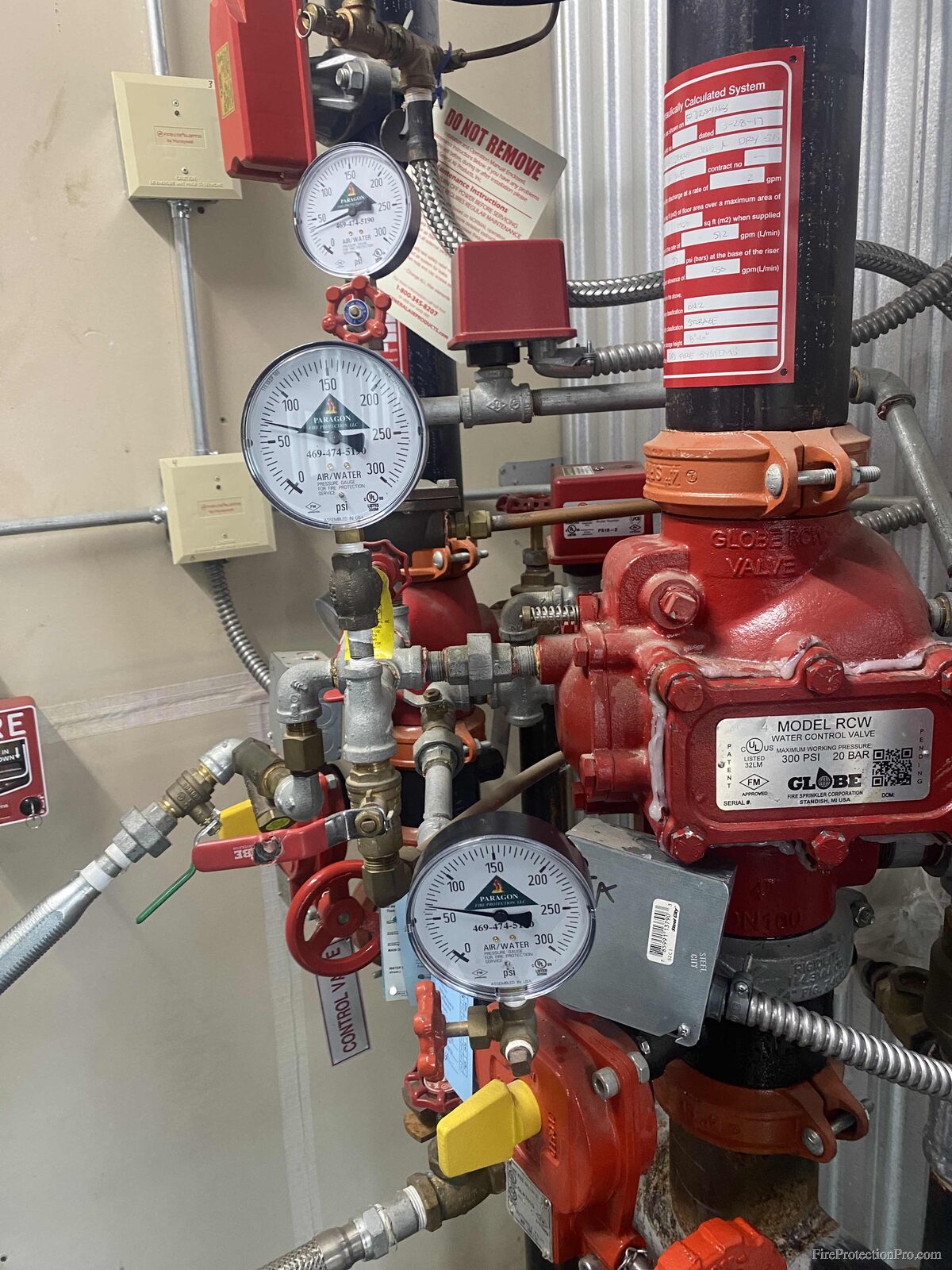

• Alarms: Waterflow alarm devices on all sprinkler systems. Vane-type or pressure-switch waterflow detectors must activate within 90 seconds of sustained flow. Local alarm bells and remote monitoring connection required.
• Fire Department Connection: Required for systems with standpipes and when required by the AHJ. Must be located on the street side of the building, clearly marked, and accessible to fire apparatus.

Upon completion, systems must be tested per NFPA 13 requirements before they are placed in service. The contractor is responsible for conducting acceptance tests and providing documentation to the building owner and AHJ.

• Hydrostatic Test: 200 psi for 2 hours or 50 psi above system pressure, whichever is greater. No pressure loss is permitted during the test. All joints and fittings must be visually inspected for leaks.
• Flushing: Underground and aboveground piping before final connection. Required flow rates for flushing depend on pipe size. Foreign materials must be removed before the system is placed in service.
• Main Drain Test: Verify water supply adequacy by fully opening the main drain valve and recording static and residual pressures. Results are compared to the original water supply test data.
• Alarm Test: Verify waterflow alarm activation by opening the inspector test connection. The alarm must sound within 90 seconds of sustained flow.
• Documentation: As-built drawings, hydraulic calculations, and material certifications must be provided to the building owner. A contractor material and test certificate (NFPA 13 form) is required.
• Ongoing Maintenance: Follow NFPA 25 for inspection, testing, and maintenance. Weekly, monthly, quarterly, annual, and 5-year testing intervals apply to different components.

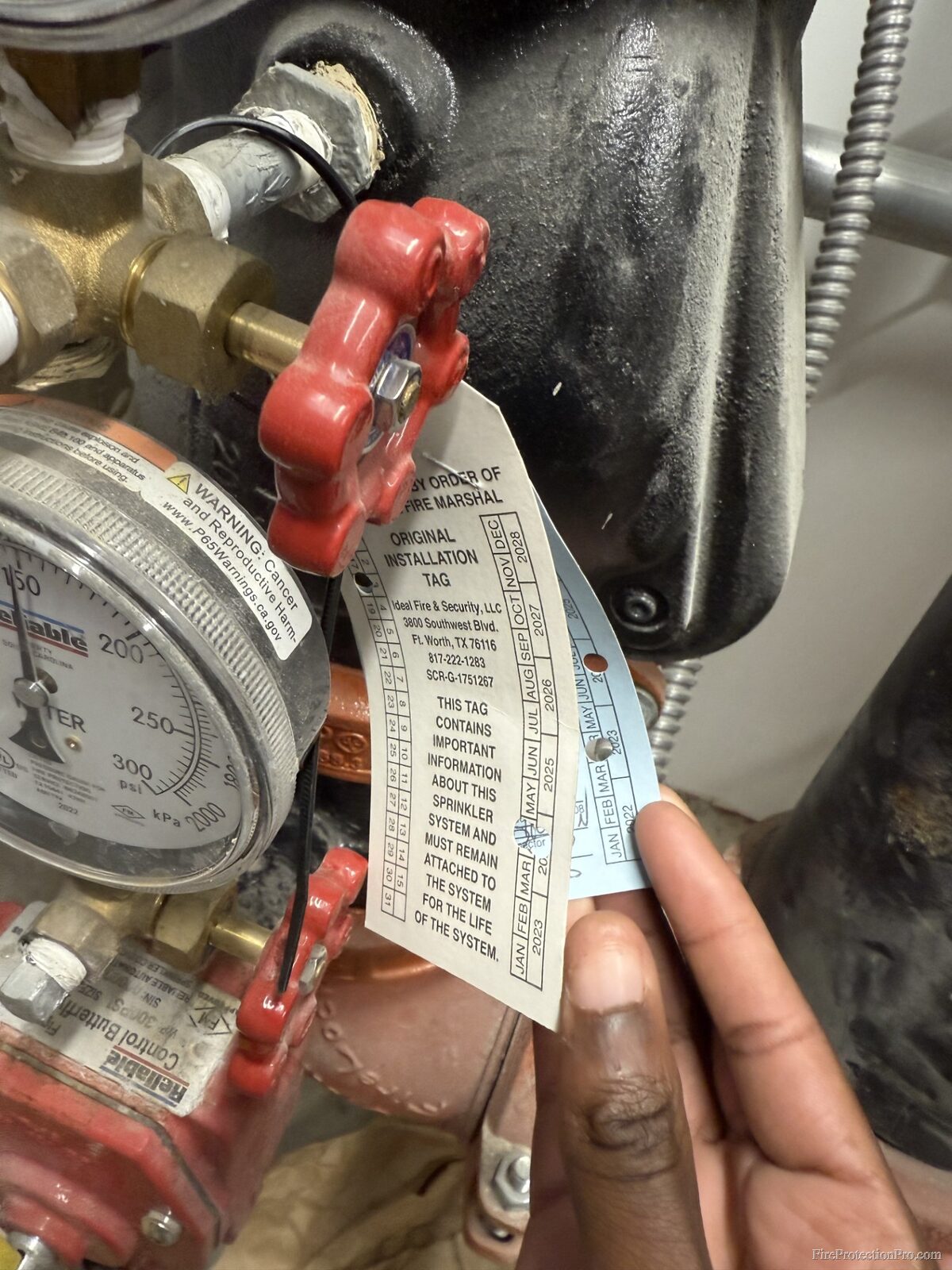

Ongoing Inspection Schedule (per NFPA 25)

NFPA 13-2025 is the current edition, and 2028 is next on the cycle. The 2022, 2019, and 2016 editions precede it. Knowing which one is current matters less than knowing which one your jurisdiction enforces, and those are routinely different.

What NFPA changed for 2025

NFPA's own summary of the 2025 revision describes the changes below. Treat it as a guide to where to look in the standard rather than as a substitute for the adopted text, and confirm anything load-bearing against the edition your project is designed to.

• Storage under sloped ceilings: the largest change, driven by a Fire Protection Research Foundation report on protecting storage under sloped ceilings. Large-scale testing showed fire control is achievable for storage under ceilings sloped up to and including 4 in 12, roughly 18.5 degrees. ESFR and CMSA sprinklers can now be installed at slopes up to 4 in 12. The new provisions apply where the pitch is steeper than 2 in 12, about 9.5 degrees.
• Vacuum systems: a new section in Chapter 8 covers vacuum systems, also called negative pressure systems. These are dry or preaction systems whose piping is held under negative gauge pressure, which lowers oxygen and removes condensation so the pipe corrodes less. Because of that, they are credited with a higher Hazen-Williams C-value (120) than a conventional dry or preaction system, meaning less friction loss is assumed in hydraulic calculations.
• Supplemental sprinklers: the term is defined in Chapter 3 as a sprinkler installed below an obstruction, and several obstruction sections were rewritten around it. Chapter 28 adds language on when and how supplemental sprinklers get hydraulically calculated.
• Seismic bracing: overhauled to correlate with ASCE/SEI 7, Minimum Design Loads and Associated Criteria for Buildings and Other Structures, including the horizontal-force calculation and the maximum intervals between piping restraints.
• Elevator hoistways: sprinklers are no longer required in elevator pits, and are required at the top of hoistways only under certain conditions.
• Existing systems: the language on evaluating or modifying existing systems, and the density and area curves that went with it, was removed. Chapter 30 now states that an existing system should be evaluated against the edition it was originally designed and installed to, or against the current edition. This is the change most likely to affect an owner with an older building.
• Storage reorganization: the miscellaneous and low-piled storage sections were simplified, reorganized, and separated so they are easier to follow.
• High ceilings: the 2025 edition carries dedicated criteria for ceiling heights over 30 ft (9.1 m), tying together occupancy hazard, sprinkler coverage, K-factor, response type, and orientation.

Amendments between editions

A published edition is not frozen. NFPA can amend one mid-cycle through a Tentative Interim Amendment, and those amendments are binding on the edition they modify. The 2025 edition has already picked several up. TIA 25-5, for example, was issued December 2, 2025 with an effective date of December 22, 2025, and it revised the ceiling-height provisions in 19.2.3.2.5. If you are working from a printed copy or an older PDF, check NFPA's document information page for the standard before you rely on a section.

Sprinkler system costs depend on building type, hazard level, and whether the work is new construction or a retrofit. The ranges below are industry estimates and will vary by region, contractor, and project specifics. Get multiple bids for your project.

Typical Installation Costs

Retrofit costs are significantly higher than new construction because existing finishes must be removed and restored, access to concealed spaces is limited, and existing water supplies may require upgrades. Fire pumps, when required, add $25,000-$100,000+ to the project depending on size and configuration.

Insurance and Code Trade-offs

• Premium Reductions: Commercial property insurance premiums are typically reduced 5-15% for fully sprinklered buildings. High-risk occupancies such as woodworking shops, chemical storage, and plastics manufacturing can see reductions of 20-50%.
• Building Code Trade-offs: The IBC allows increased building area, additional stories, and reduced fire-resistance ratings when a building is fully sprinklered. These trade-offs can reduce structural costs enough to partially or fully offset the sprinkler system investment.
• Business Continuity: Sprinkler-controlled fires result in significantly less property damage and shorter business interruption. The average fire loss in a sprinklered building is 50-66% less than in an unsprinklered building.

These are the most frequent deficiencies flagged by authorities having jurisdiction (AHJs) and fire inspectors during installation acceptance and periodic inspections. Fixing these before inspection avoids failed inspections, costly re-work, and potential impairment of fire protection.

• Improper Head Spacing: Sprinklers installed too close to walls, too far apart, or with coverage gaps. Maximum and minimum spacing requirements are specific to head type and hazard classification.
• Missing Escutcheons: Ceiling plates (escutcheons) missing from pendant sprinklers in finished ceilings. Required to maintain the fire rating of the ceiling assembly and for proper sprinkler aesthetics.
• Obstructed Sprinklers (18-Inch Rule): Storage, shelving, equipment, or signage stacked within 18 inches of the sprinkler deflector. This is the single most common violation in occupied buildings and is entirely within the building owner's control.
• Painted Sprinkler Heads: Sprinkler heads that have been painted by building maintenance or renovation contractors. Paint on the thermal element can prevent or delay activation. Painted heads must be replaced. They cannot be cleaned and reused.
• Wrong Temperature Rating: Standard temperature heads (135-170°F) installed near heat sources that require intermediate (175-225°F) or high (250-300°F) rated heads. Common locations include skylights, attics, commercial kitchens, and mechanical rooms.
• Corroded or Leaking Piping: Microbiologically influenced corrosion (MIC) or oxygen corrosion causing pinhole leaks, blockages, and reduced flow. Particularly common in systems with trapped air, dead-end piping sections, and raw water supplies.
• Missing Spare Head Cabinet: NFPA 13 requires a spare sprinkler cabinet with a minimum number of spare heads matching the types and temperature ratings installed in the building, plus a sprinkler wrench. The cabinet must be located where temperatures will not damage the spare heads.
• Inadequate Signage: Missing or incorrect signage on control valves, risers, fire department connections, and spare head cabinets. Each riser must be labeled with the area it serves.
• Valve Accessibility: Control valves obstructed by storage, equipment, or construction. All valves must remain accessible for inspection, testing, and emergency operation.

NFPA 13 works in conjunction with NFPA 25 for inspection, testing, and maintenance after acceptance. Fire alarm connections follow NFPA 72 Fire Alarm Code requirements. For portable protection, see NFPA 10 Fire Extinguisher Standards.

Learn about inspector certification requirements in our Fire Inspection & Compliance Guide.

For a practical breakdown of how NFPA 13 design requirements connect to NFPA 25 inspection and maintenance obligations, see this NFPA 13 vs NFPA 25 operational guide for commercial owners.

For standpipe and fire riser systems that share supply mains with sprinkler systems, see NFPA 14 Standpipe Standards.

A sprinkler system is at its least useful while the building is being built or renovated, which is exactly when the system is incomplete or impaired. For that window, see NFPA 241 construction fire safety, which covers safeguarding construction, alteration, and demolition operations.
