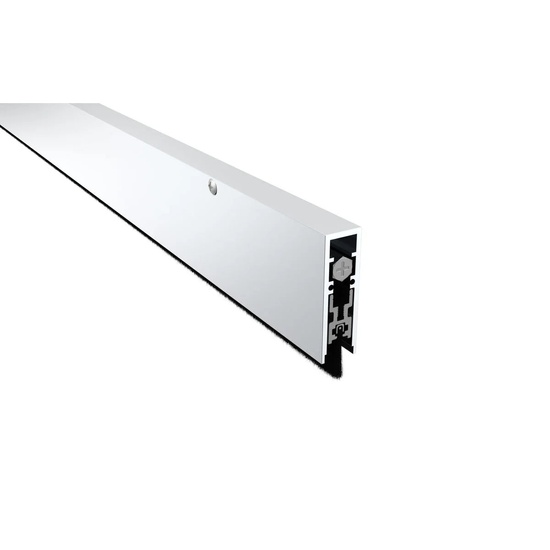

Pemko 4131CRL36 36" 3' Surface Mounted Automatic Door Bottom with EPDM Clear Aluminum Finish

The 4131CRL36 automatic door bottom seals the gap under doors to block light, sound, and air infiltration. This surface-mounted unit activates when the door closes, lowering an EPDM sponge seal to create a tight barrier against the floor. Pemko designed this 36-inch unit for exterior doors and interior spaces where draft control matters most.

The clear anodized aluminum housing contains a spring-loaded mechanism that raises the seal when doors open and lowers it automatically upon closing. The sponge EPDM material compresses against uneven floor surfaces while maintaining its sealing properties over thousands of cycles. Installation hardware and end plates come included for direct mounting to door faces.

Material	Anodized Aluminum with Sponge EPDM
Length	36 inches
Mounting	Surface Mount
Finish	Clear Anodized Aluminum
Warranty	5 Years Limited

This door bottom meets UL 10C fire door assembly testing standards and UL 1784 air leakage requirements. It also complies with ANSI/BHMA A156.22 gasketing standards and ASTM E283 air infiltration testing. For fire door applications, see UL 10C fire-rated door assemblies for complete testing requirements. For broader code context, see NFPA 101 Life Safety Code egress provisions.
