UL 1784 Smoke Seals & Air Leakage Testing

S-label gasketing requirements for smoke barriers and corridor doors

Last updated: April 9, 2026

Overview

Most people killed in commercial building fires die from smoke, not from burns. Smoke moves through the gap around the door long before the door leaf itself gives up. A solid fire door with no gasketing can leak enough smoke into a stairwell or corridor to make that path unusable for anyone still trying to get out.

UL 1784 is the air leakage test for door assemblies. It measures how much air and smoke the assembly leaks under defined pressures at ambient and elevated temperatures. A door that passes UL 1784 carries an S-label, and the gasketing is what closes the gaps that the test exposes.

The International Building Code (IBC) references UL 1784 for smoke and draft-control doors in smoke barriers, smoke partitions, and corridor enclosures. If an inspector writes up your building for missing or painted-over smoke seals, this is the standard behind the citation.

Why it matters: A fire-rated door does not automatically stop smoke. UL 10C proves the door resists flame. UL 1784 proves the assembly resists air leakage. These are separate tests, and smoke barriers need both ratings to perform their job during evacuation.

What UL 1784 Measures

The full title is "Air Leakage Tests of Door Assemblies and Other Opening Protectives." The test places a complete door assembly (leaf, frame, hardware, and gasketing) in a chamber and measures air leakage through the assembly at defined pressure differentials on both sides of the door.

Testing happens in two phases. The ambient phase measures leakage at room temperature at several pressure differentials, with 0.10 inches of water column (w.c.) as the standard reporting condition. The elevated temperature phase repeats the measurement after the assembly has been heated to around 400 degrees Fahrenheit, simulating smoke-side conditions early in a fire.

To earn an S-label that the IBC accepts for smoke barriers, the assembly must not exceed 3.0 cubic feet per minute per square foot of door opening at the 0.10 inch w.c. differential, at both ambient and elevated temperature.

Test Condition	Pressure Differential	Max Allowable Leakage
Ambient (room temp)	0.10 inch w.c.	3.0 cfm per sq ft of opening
Elevated (~400°F)	0.10 inch w.c.	3.0 cfm per sq ft of opening

The assembly is tested as a complete system. Swapping the listed gasket for a different profile, or omitting a door bottom the listing called for, voids the rating. The label on the door references the listing the assembly was tested against.

UL 10C vs UL 1784: Common Confusion

Contractors and facility managers often conflate fire rating with smoke rating. The two tests measure different things, and a door can carry one label, the other, or both. A smoke barrier that is not a fire barrier still needs S-label doors. A fire door in a non-smoke-barrier location may not need gasketing at all. The requirement comes from where the wall is, not from the door itself.

Attribute	UL 10C	UL 1784
What it tests	Fire endurance + hose stream	Air leakage at ambient + elevated temp
Measures	Minutes the assembly resists flame	cfm per sq ft of opening at 0.10 inch w.c.
Label	20 min, 45 min, 60 min, 90 min, 3 hr	S (smoke) with max temperature noted
Required by	Fire barriers, fire partitions, exit enclosures	Smoke barriers, smoke partitions, corridors
IBC reference	Section 716 (fire door assemblies)	Section 710 (smoke barriers) + 711 (smoke partitions)
Gasketing role	Intumescent may or may not be part of listing	Gasketing is always part of the listed assembly

A door can carry both labels. Most corridor doors in hospitals and hotels are rated for both a fire endurance and a smoke leakage class because the wall is both a fire partition and a smoke barrier. One label does not imply the other. Check the door label directly and confirm against the specific wall assembly it protects.

Warning: A 20-minute fire door in a corridor does not automatically stop smoke. If the wall is also a smoke partition, you still need S-label gasketing. Asking "is the door fire-rated?" is the wrong question at a smoke barrier. The right question is "does this assembly meet UL 1784?"

When S-Label Gasketing Is Required

The IBC and NFPA 101 call for smoke-rated doors at specific locations. If the wall shows up on the life-safety drawings as a smoke barrier, smoke partition, or corridor enclosure, the doors in that wall need to meet UL 1784.

Smoke barriers (IBC Section 710)

Smoke barriers divide a building into smoke compartments. They are continuous from outside wall to outside wall and from floor slab to deck above. Hospitals, nursing homes, and other I-2 occupancies use smoke barriers to create areas of refuge. Doors in smoke barriers must be S-labeled and tested per UL 1784.

Smoke partitions (IBC Section 711)

Smoke partitions are lighter-duty than smoke barriers but still need to resist smoke passage. They are common in ambulatory care facilities and some corridor applications. S-label doors are required unless the AHJ accepts another method.

Corridor enclosures (IBC Section 1020)

Corridor walls in most occupancies are fire-resistance rated and must also limit smoke transfer. Door assemblies in these walls typically need both a fire rating and an S-label.

Stairwell enclosures

Exit stairwells are the primary egress path in high-rise and mid-rise buildings. Any smoke that leaks into the stairwell during a fire shuts down that egress route. S-label doors at stairwell entrances are the single most important place gasketing lives.

Smoke compartment boundaries in I-2 occupancies

Hospitals, nursing homes, and detention facilities rely on horizontal evacuation: patients who cannot leave the building move into an adjacent smoke compartment. The boundary between compartments is only as good as the doors in it. UL 1784 is what makes that strategy work.

NFPA 101 Chapter 8 (Features of Fire Protection) carries parallel language for smoke compartments and smoke-resistive doors. Most AHJs enforce both the IBC and NFPA 101 in I-2 occupancies, and both reference UL 1784 for the air leakage test.

Required Gasketing Locations

A UL 1784 assembly closes gaps around the full perimeter of the door. Each location has its own product type, and the listing specifies what is required. Installing head and jamb gasket but skipping the door bottom is a common violation because the bottom gap leaks more air than the rest of the perimeter combined.

Head and jamb seals

Perimeter gasket attached to the frame rabbet or the face of the stop. Silicone is the most common material for smoke applications because it retains compression across the temperature range the test requires. Neoprene and EPDM are also used depending on the listing.

Meeting stile seal (for pairs)

Pairs of doors need a seal or astragal where the two leaves meet. Overlapping astragals are common on fire-rated pairs, but the listing has to cover the smoke case too. Without a meeting stile seal, the gap between the two leaves leaks smoke freely even if the rest of the perimeter is sealed.

Door bottom

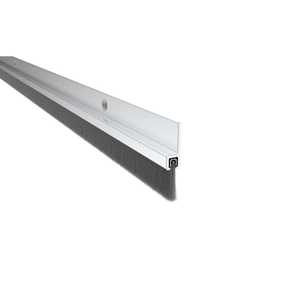

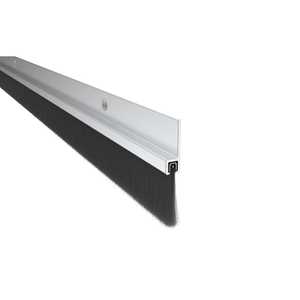

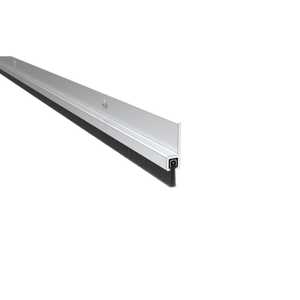

The gap under the door is usually the biggest single leak path. Options include an automatic door bottom (drop-down seal that retracts when the door is opened and drops when it closes), a surface-mounted sweep, or a threshold with integrated gasket. The drop-down is preferred where threshold height would create an ADA conflict.

Astragals

On pairs with an active and inactive leaf, an overlapping astragal on the inactive leaf closes the meeting stile gap. Some listings allow a flat astragal with a surface gasket instead. The listing governs.

Tip: The gasket on a smoke door is part of the listing. Swapping a silicone seal for a neoprene one because the stockroom was out voids the assembly. Always replace with the same product the original listing referenced, or pull a new listing that covers the substitute.

Common Inspection Issues

NFPA 105 (Smoke Door Assemblies and Other Opening Protectives) carries the annual inspection criteria for smoke doors, matching the NFPA 80 pattern for fire doors. Both standards are commonly enforced together because a door in a smoke barrier is usually also in a fire barrier.

What inspectors look for on smoke-labeled doors:

Missing gasket sections at the head, jambs, or door bottom
Gasket compressed flat or torn where the door hits the frame
Paint covering silicone or neoprene seals, which destroys the compression set
Visible daylight at the bottom of a closed door
Automatic door bottoms that do not drop when the door closes
Meeting stile gaps on pairs where the astragal is damaged or missing
Gaskets torn out during door or frame replacement and never re-installed
Wrong gasket profile installed after repair, not matching the original listing

Warp is another silent killer. A door that swelled during a wet season may not sit flat in the frame, leaving a crescent-shaped gap along one edge. The gasket cannot close a gap it cannot reach. A door that will not stay flat is a door replacement, not a gasket replacement.

Warning: The most frequent write-up on smoke doors in hospitals is painted gasketing. When a corridor gets repainted, the seals need to be masked or replaced. Once paint has dried on the silicone, the compression set is gone and the seal no longer meets the listing even if it looks intact.

Frequently Asked Questions

Does a UL 10C fire door automatically meet UL 1784?

No. UL 10C tests fire endurance and hose stream resistance. UL 1784 tests air leakage. They are separate tests with separate listings. A door can carry a fire rating with no smoke rating at all. If the door is in a smoke barrier, you need a door that was tested against both standards or you need to add listed S-label gasketing to an already-rated fire door assembly.

What is the maximum allowable air leakage under UL 1784?

Three cubic feet per minute per square foot of door opening, measured at a 0.10 inch water column pressure differential. The assembly must meet this limit at both ambient temperature and at the elevated temperature condition (around 400 degrees Fahrenheit).

Can I paint over smoke seals during a corridor repaint?

No. Paint on silicone or neoprene seals changes the compression properties and voids the UL 1784 listing. Mask the seals before painting, or replace them after the paint job. Painted gaskets are one of the most common violations written up on smoke doors in hospitals and hotels.

Do I need gasketing on the door bottom or is head and jamb enough?

The door bottom gap is the biggest single leak path on most assemblies. Head and jamb seals alone will not pass UL 1784 on almost any door. The listing dictates what the bottom solution is, which can be an automatic drop-down seal, a surface sweep, or a threshold with an integrated gasket. You cannot skip this component and keep the S-label.

Who inspects UL 1784 smoke doors and how often?

NFPA 105 requires annual inspection of smoke door assemblies, matching the NFPA 80 schedule for fire doors. Inspection is performed by a qualified person, typically the facility maintenance team or a contracted fire door inspector. Records must be kept and made available to the AHJ. In I-2 occupancies, the Joint Commission also audits smoke compartment boundaries during accreditation surveys.

Can I retrofit an existing fire door with smoke gasketing?

Yes, and this is common in older buildings. You need gasketing that is individually listed for the door type and that carries its own UL 1784 classification. The retrofit seal becomes part of the assembly and must be inspected and maintained like any other rated component. Confirm the product data sheet calls out compatibility with the specific fire door listing you are applying it to.

Does the threshold count toward UL 1784 compliance?

Thresholds are often part of the listed assembly, especially when the bottom seal is an integral part of the threshold rather than a drop-down on the door. The threshold height still has to comply with ADA accessibility limits, so most smoke-rated assemblies at accessible openings use a low-profile threshold combined with a door bottom seal that drops to close the gap when the door is latched.
