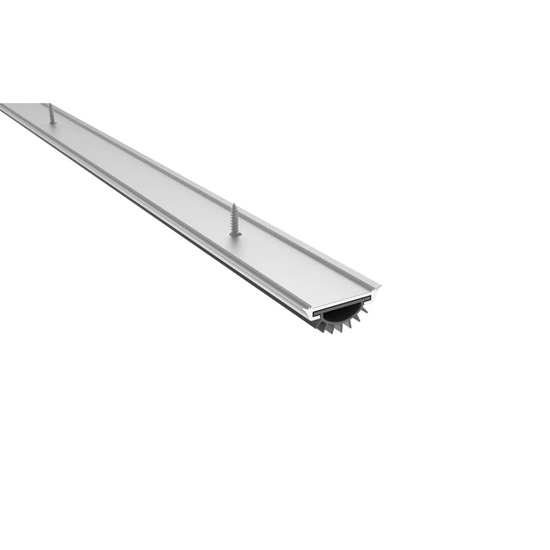

Pemko 209AV36 36" 3' Door Shoe with Vinyl Mill Finish Aluminum Finish

The 209AV36 door shoe installs at the bottom of doors to seal gaps against smoke, fire, dust, drafts, and light infiltration. This weatherization component gets mounted on doors with minimum 1.375" thickness where building codes require air leakage control. Pemko designed this aluminum track with fingered vinyl insert to maintain door appearance while providing reliable environmental sealing.

The aluminum construction with mill finish resists corrosion in high-traffic areas. The 0.5" vinyl fingers flex to accommodate floor irregularities while maintaining contact pressure. Installation hardware comes included and the vinyl insert can be field-replaced when worn. Custom cutting available to match exact door widths.

Material	Anodized Aluminum with Vinyl
Length	36 inches
Seal Height	0.5 inches
Door Thickness	1.375" minimum
Finish	Mill Aluminum
Warranty	5 years limited

This door shoe meets UL 10C positive pressure fire testing standards and UL 1784 air leakage requirements. ANSI/BHMA A156.22 compliance covers door gasketing performance standards. GREENGUARD Gold certification confirms low chemical emissions for indoor air quality.

Fire-rated door assemblies require UL 10C testing protocols to verify seal integrity under fire conditions. For broader code context covering egress requirements, reference NFPA 101 Life Safety Code standards.
