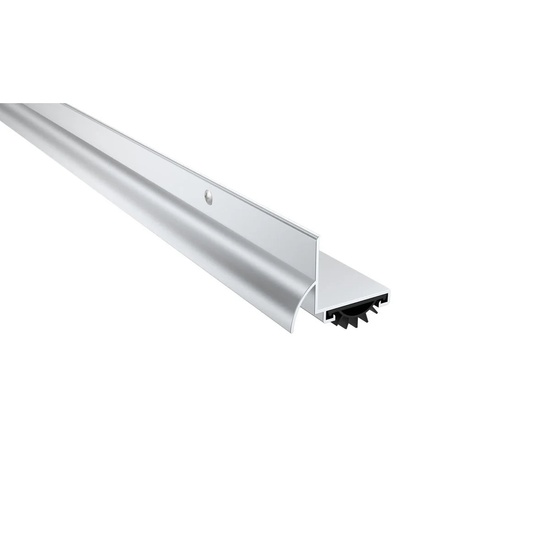

Pemko 210AV36 36" 3' Door Shoe with Vinyl Mill Finish Aluminum Finish

This L-shaped door shoe mounts to the surface of door bottoms to seal gaps up to 0.5 inches against air leakage, smoke infiltration, and weather. The 210 Series features a rain drip design that deflects water away from the door bottom. Pemko manufactures this shoe with anodized aluminum construction and vinyl insert for durability in high-traffic commercial openings.

The surface mount design fits all door thicknesses without mortising. The vinyl insert compresses against thresholds and floor surfaces to create an effective seal. This door shoe addresses air infiltration requirements in fire-rated and smoke-rated door assemblies where weather protection is also needed.

Material	Anodized Aluminum with Vinyl Insert
Length	36 inches
Gap Fill	Up to 0.5 inches
Mounting	Surface mounted, hardware included
Warranty	5 years limited

This door shoe meets UL 10C positive pressure fire testing standards and UL 1784 air leakage testing for door assemblies. For complete fire door assembly compliance, see UL 10C fire-rated door requirements. ANSI/BHMA A156.22 certification ensures consistent gasketing performance. For broader code context on egress requirements, see NFPA 101 Life Safety Code standards.
