OSHA 29 CFR 1926.1153: Respirable Crystalline Silica in Construction
Exposure control requirements, Table 1 engineering controls, and compliance equipment for construction operations
Last updated: March 10, 2026
Overview
Respirable crystalline silica is a fine dust generated when workers cut, grind, drill, or crush materials containing silica — concrete, brick, block, mortar, stone, sand, and asphalt. Particles small enough to reach the deep lung (under 10 µm) cause silicosis, lung cancer, chronic obstructive pulmonary disease (COPD), and kidney disease. There is no cure for silicosis.
OSHA's construction silica standard, 29 CFR 1926.1153, took full effect on September 23, 2017. It applies to all construction employers whose workers are exposed — or may be exposed — to respirable crystalline silica. OSHA estimates the standard affects approximately 2.3 million construction workers nationwide.
Health Impact: Silicosis can develop after as little as a few months of intense exposure. Between 2001 and 2019, silicosis was listed as a contributing cause of death for over 1,800 U.S. workers. Engineered stone countertop fabrication has emerged as a particularly high-risk activity, with cases of accelerated silicosis reported in workers in their 20s and 30s.
Exposure Limits
Permissible Exposure Limit (PEL)
50 µg/m³
8-hour time-weighted average (TWA). Employers must keep exposure at or below this limit using engineering controls, work practices, and respirators.
Action Level (AL)
25 µg/m³
8-hour TWA. Triggers medical surveillance and other requirements even when exposure is below the PEL. Calculated the same way as the PEL.
Context: The previous PEL for construction was approximately 250 µg/m³ (calculated from the formula-based standard). The 2016 rule cut the limit by 80%. Many common construction tasks — cutting concrete block, grinding mortar joints, drilling into concrete — generate exposures 10 to 50 times the current PEL without controls.
Two Compliance Paths
OSHA gives construction employers two ways to comply. Most employers use Table 1 because it eliminates the need for exposure monitoring. The alternative path requires industrial hygiene sampling and analysis.
Table 1 — Specified Exposure Control Methods
- Find your task in the table, implement the listed engineering controls and respirator requirements exactly as specified
- No air monitoring required — OSHA has already determined that full implementation keeps exposure at or below the PEL
- All-or-nothing: partial implementation means you are not following Table 1 and must use the Alternative path instead
- Most contractors choose this path because it is simpler and does not require hiring an industrial hygienist
Alternative Exposure Assessment
- Assess actual exposure through personal air sampling per NIOSH Method 7500 or equivalent
- Required when your task is not listed in Table 1, or you cannot fully implement the Table 1 controls
- Must reassess whenever conditions change (new tasks, new materials, new controls)
- Typically requires an industrial hygienist — adds cost but allows flexibility in control methods
Important: Table 1 is all-or-nothing. If you follow Table 1 for a task but skip the respirator requirement or use an unapproved shroud, you are not in compliance with Table 1. You must then either correct the deficiency or switch to the Alternative path — which means conducting exposure monitoring.
Table 1: Specified Exposure Control Methods for Construction
This table summarizes the key tasks from OSHA's Table 1. For each task, OSHA specifies the required engineering control and whether a respirator is needed. If you fully implement these controls, no air monitoring is required.
| Construction Task | Required Engineering Control | Respirator Requirement | Duration Threshold |
|---|---|---|---|
| Stationary masonry saws | Integrated water delivery system that feeds water to the blade | None required | All durations |
| Handheld power saws (any blade diameter) | Integrated water delivery system that feeds water to the blade | APF 10 (e.g., N95) when used for more than 4 hours/shift | > 4 hours/shift triggers respirator |
| Handheld grinders for mortar removal (tuckpointing) | Commercially available shroud + HEPA-filtered vacuum with minimum 25 CFM airflow | APF 10 (e.g., N95) at all durations | All durations |
| Handheld grinders for uses other than mortar removal | Commercially available shroud + HEPA-filtered vacuum with minimum 25 CFM airflow | APF 10 (e.g., N95) when used for more than 4 hours/shift | > 4 hours/shift triggers respirator |
| Walk-behind saws | Integrated water delivery system that feeds water to the blade | APF 10 (e.g., N95) when used for more than 4 hours/shift | > 4 hours/shift triggers respirator |
| Jackhammers and handheld powered chipping tools | Water delivery system that supplies a continuous stream, OR HEPA-filtered vacuum used in conjunction with the tool | APF 10 (e.g., N95) when used for more than 4 hours/shift | > 4 hours/shift triggers respirator |
| Rotary hammer drills and similar drilling tools | HEPA-filtered vacuum dust collection system, OR commercially available shroud + HEPA-filtered vacuum | APF 10 (e.g., N95) when used for more than 4 hours/shift | > 4 hours/shift triggers respirator |
| Milling machines and cold planers | Continuous water delivery to the cutting surface, OR HEPA-filtered vacuum + enclosed cab with HEPA-filtered air supply | APF 10 (e.g., N95) when used for more than 4 hours/shift (outside enclosed cab) | > 4 hours/shift triggers respirator |
| Abrasive blasting (using crystalline silica or disturbing coatings containing it) | Abrasive blasting enclosure/containment + dust collector | Continuous-flow supplied-air respirator operated in positive-pressure mode (APF 1,000) | All durations — no exceptions |
Tuckpointing and abrasive blasting are highlighted because they generate the highest silica exposures of any common construction task. Tuckpointing requires a respirator at all durations. Abrasive blasting requires an APF 1,000 supplied-air respirator — no filtering facepiece (N95) is sufficient.
Equipment by Task
Each Table 1 control maps to a specific equipment category. This section identifies what you need, which tasks require it, and the specification that matters for compliance.
Dust Shrouds
Required for all grinding and tuckpointing operations under Table 1. Must be commercially available for the specific tool — improvised shrouds do not satisfy the standard.
Table 1 tasks: Tuckpointing, general grinding, drilling (alternative)
Key spec: Must maintain seal around the grinding cup or disc while connected to HEPA vacuum
HEPA Vacuums
Required for grinding (≥25 CFM airflow at the shroud), drilling, and housekeeping. Regular shop vacuums are NOT compliant — HEPA filtration captures particles down to 0.3 microns.
Table 1 tasks: Grinding, tuckpointing, drilling, housekeeping, jackhammering (alternative)
Key spec: Minimum 25 CFM airflow for grinder shroud use; HEPA filter rated to 99.97% at 0.3 µm
Water Suppression Equipment
Required for saws (stationary, handheld, walk-behind), jackhammering, and milling. Continuous water delivery to the cutting or impact point keeps dust below the PEL.
Table 1 tasks: Masonry saws, concrete saws, walk-behind saws, jackhammers, milling machines
Key spec: Continuous stream to point of impact or cutting surface

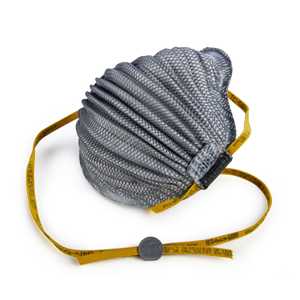

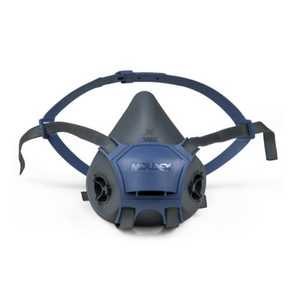

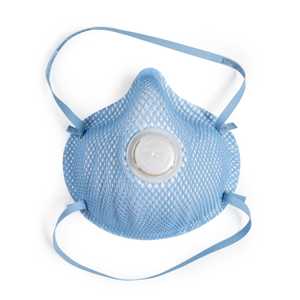

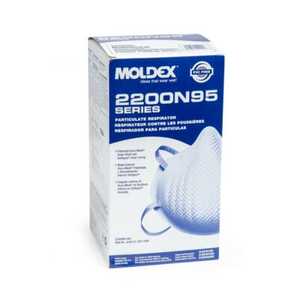

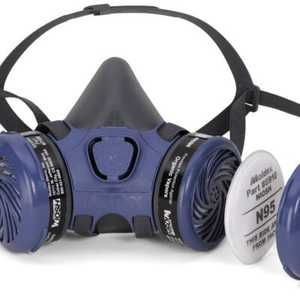

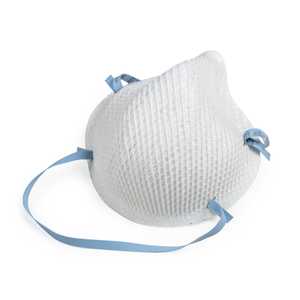

Respirators
Table 1 specifies the minimum APF (Assigned Protection Factor) by task and duration. N95 filtering facepiece (APF 10) for most tasks over 4 hours. Tuckpointing requires N95 at all durations. Abrasive blasting requires APF 1,000.
Table 1 tasks: All Table 1 tasks at specified durations
Key spec: APF 10 (N95/P100/half-face), APF 50 (full-face), APF 1,000 (supplied-air)
HEPA Vacuum Filters & Bags
Ongoing consumable that directly affects compliance. A clogged or degraded filter drops airflow below the 25 CFM minimum required for grinder shroud use, taking you out of Table 1 compliance.
Table 1 tasks: All tasks using HEPA vacuums
Key spec: Replace per manufacturer schedule; verify CFM after filter change
Air Monitoring Equipment
Required only under the Alternative Exposure Assessment path (not Table 1). Personal sampling pumps, respirable dust cyclones, and PVC filter cassettes measure actual worker exposure.
Table 1 tasks: Alternative Exposure Assessment — any silica-generating task
Key spec: Personal sampling pump at 2.5 L/min with 10 mm nylon cyclone and pre-weighed PVC filter
Silica Hazard Signs & Labels
Section 1926.1153(i) requires regulated areas to be demarcated and posted with signs. GHS-compliant labels must identify crystalline silica as the hazard.
Table 1 tasks: All work areas where exposure may exceed the PEL
Key spec: GHS-compliant labels; "DANGER — Respirable Crystalline Silica" signage at regulated area boundaries
Written Exposure Control Plan
Section 1926.1153(g) requires every construction employer with workers exposed to silica to establish and maintain a written exposure control plan. The plan must be reviewed and updated at least annually or whenever conditions change.
Required Elements
- Task identification: Description of each task that involves exposure to respirable crystalline silica
- Engineering and work practice controls: The specific controls used for each task (Table 1 controls or alternative controls based on exposure assessment)
- Competent person designation: Name of the competent person responsible for implementing the plan and making frequent inspections of job sites, materials, and equipment
- Housekeeping measures: How silica-containing dust will be cleaned up (HEPA vacuum, wet methods — never dry sweeping or compressed air)
- Restricted access procedures: How regulated areas will be established and access limited to authorized personnel
- Medical surveillance procedures: How the employer will offer and provide required medical exams
- Worker training: How and when workers will be trained on silica hazards, controls, and the exposure control plan itself
Medical Surveillance
Section 1926.1153(h) requires medical surveillance for workers who will use a respirator under the standard for 30 or more days per year. Under the Alternative path, surveillance is triggered when exposure exceeds the Action Level (25 µg/m³) for 30 or more days per year.
Who Is Covered
- Workers using a respirator per 1926.1153 for 30+ days/year
- Workers exposed above the Action Level for 30+ days/year (Alternative path)
Exam Schedule
- Initial exam within 30 days of assignment (or before if feasible)
- Follow-up every 3 years (every 2 years if recommended by physician)
What the Exam Includes
- Medical and work history with emphasis on respiratory system, cardiovascular system, and history of tuberculosis
- Physical exam focused on the respiratory system
- Chest X-ray (interpreted by a NIOSH B-Reader)
- Pulmonary function test (spirometry)
- Latent tuberculosis test
- Any additional tests deemed appropriate by the examining physician
Employer pays all costs — exams, tests, travel time, and lost wages. The physician must provide a written medical opinion to the employer, but it is limited to: (1) whether the worker has a condition increasing risk from silica exposure, (2) any recommended limitations, and (3) whether the worker can use a respirator. Detailed medical findings stay confidential between the physician and the worker.
Housekeeping Requirements
Section 1926.1153(f) prohibits cleaning methods that generate airborne dust. Housekeeping violations are among the most common silica citations because many contractors still use brooms or compressed air to clean up silica-containing dust.
Prohibited Methods
- Dry sweeping or dry brushing where it could contribute to employee exposure
- Compressed air to clean clothing or surfaces (unless combined with ventilation system that captures the dust)
Compliant Methods
- HEPA-filtered vacuum
- Wet sweeping / wet mopping
- Water hose or pressure washer (if it does not create additional hazards)
Common Violations
OSHA has cited 1926.1153 violations heavily since enforcement began. Silica consistently ranks among the top 10 most-cited construction standards. These are the violations inspectors find most often.
- No written exposure control plan — the most basic requirement and the easiest to cite. Inspectors ask for the plan first.
- Dry sweeping silica dust — workers or laborers sweeping up concrete dust with a broom instead of using HEPA vacuum or wet methods.
- Missing or inadequate engineering controls — cutting concrete without water, grinding without a shroud, or using a regular shop vacuum instead of HEPA.
- No respirator program — workers wearing N95 masks without a written respiratory protection program per 1910.134 (fit testing, training, medical evaluation).
- No medical surveillance — failing to offer exams to workers who qualify. Common when employers do not track how many days workers wear respirators.
- No competent person designated — the plan exists on paper but nobody on site is assigned to implement it and inspect controls.
- Inadequate training — workers were never trained on silica hazards, control methods, or the contents of the exposure control plan.
What inspectors look for: OSHA compliance officers typically start by requesting the written exposure control plan. They observe work in progress — looking for visible dust clouds, workers without respirators, uncontrolled cutting or grinding. They check equipment (is the vacuum HEPA? is the shroud connected? is water flowing?). They interview workers about training. A single walk-through can generate multiple citations across several subsections of 1926.1153.
Frequently Asked Questions
Do I need air monitoring if I follow Table 1?
No. Table 1 eliminates the need for exposure monitoring as long as you fully implement all specified controls for your task — engineering controls, respirator requirements, and duration thresholds. Partial implementation does not count.
What if my task is not listed in Table 1?
You must use the Alternative Exposure Assessment path. This requires personal air sampling (per NIOSH 7500 or equivalent) to measure actual worker exposure, then implementing controls sufficient to keep exposure at or below the PEL. You will need to reassess whenever conditions change.
Can I use a regular shop vacuum instead of a HEPA vacuum?
No. Table 1 specifically requires HEPA-filtered vacuums. Standard shop vacuums do not capture respirable-size particles (under 10 µm) and will blow silica dust back into the air through the exhaust. Using a non-HEPA vacuum means you are not following Table 1 and must conduct exposure monitoring under the Alternative path.
What respirator is required for tuckpointing?
Table 1 requires a minimum APF 10 respirator (such as a properly fitted N95 or P100 filtering facepiece) at all durations when tuckpointing. Unlike most other Table 1 tasks, there is no "under 4 hours" exemption — tuckpointing generates extremely high silica exposures. The required engineering control is a commercially available shroud connected to a HEPA vacuum with at least 25 CFM airflow.
How often do workers need silica training?
The standard does not specify a fixed retraining interval, but training must occur at initial assignment and whenever there is a change in the workplace that results in new or increased exposure. Best practice is annual refresher training plus task-specific training when workers take on new silica-generating tasks.
What is a competent person under 1926.1153?
The standard requires employers to designate a competent person to implement the written exposure control plan and make frequent and regular inspections of job sites, materials, and equipment. The competent person must be capable of identifying existing and foreseeable silica hazards and have authorization to take prompt corrective measures to eliminate or control them.
Does 1926.1153 apply to residential construction?
Yes. The standard applies to all construction work as defined in 29 CFR 1910.12, regardless of project type. If workers cut concrete, grind masonry, or drill into stone on a residential job site, 1926.1153 applies. There is no exemption for project size or type.
What are the penalties for violations?
OSHA maximum penalties are adjusted annually. As of 2025, a serious violation can carry a penalty of up to $16,131 per violation. Willful or repeated violations can reach $161,323 per violation. Each subsection of 1926.1153 cited is a separate violation, so a single inspection can result in multiple penalties. Failure to abate carries up to $16,131 per day.
How do I write an exposure control plan?
Start with the seven required elements: task identification, engineering and work practice controls for each task, competent person designation, housekeeping measures, restricted access procedures, medical surveillance procedures, and worker training procedures. OSHA provides a free small-entity compliance guide with a sample plan template.
Do I need medical surveillance if I use Table 1?
It depends on whether workers wear respirators under Table 1 for 30 or more days per year. If Table 1 requires a respirator for your task and your workers perform that task for 30+ days/year, you must offer medical surveillance. If Table 1 does not require a respirator for your task (e.g., stationary masonry saws), surveillance is not triggered by Table 1 compliance alone.
