ANSI B165.1: Power Brush Safety

Safety requirements for power-driven brushing tools: speed ratings, guards, PPE, and safe operating procedures

Last updated: April 4, 2026

Overview

ANSI B165.1 is the American National Standard for the safety of power-driven brushing tools. Published by the American Brush Manufacturers Association (ABMA) and approved through ANSI, it covers the design, care, and use of wire wheels, cup brushes, end brushes, and other power brushes used across metalworking, welding, construction, and maintenance operations.

The standard applies to brushing tools with elements made of ferrous wire, nonferrous wire, plastic, abrasive filaments, vegetable fibers, animal hair, or any combination. It establishes maximum safe free speed (MSFS) requirements, guard specifications, PPE mandates, and safe operating procedures. The current purchasable edition is ANSI B165.1-2019, with a 2026 revision recently approved by the ANSI Board of Standards Review.

Why this standard matters: Wire brush injuries are among the most common in metalworking shops. Broken filaments travel with significant force and can penetrate skin or eyes from over 50 feet away. ANSI B165.1 is the industry consensus standard for preventing these injuries, and it fills a critical gap in OSHA regulations since wire wheels are explicitly excluded from the abrasive wheel standard (OSHA 1910.215).

A companion standard, ANSI B165.2, covers brushes with wood, plastic, or composition hubs specifically. B165.1 is the broader, general standard that most facilities and safety programs reference.

Maximum Safe Free Speed (MSFS)

Maximum Safe Free Speed (MSFS) is the single most important safety concept in power brush operation. It is the highest RPM at which a brush can safely operate with no load (spinning free, not touching the workpiece). Exceeding MSFS is the leading cause of serious power brush injuries.

What Happens When MSFS Is Exceeded

Wire filaments flare outward under centrifugal force, reducing cutting effectiveness
Filaments fatigue and break at the crimp or base, ejecting wire fragments at high velocity
Cup brush sidewalls can deform or separate from the hub
The brush becomes unbalanced, causing vibration and loss of tool control
In extreme cases, the entire brush can disintegrate

Critical rule: The brush MSFS must always be equal to or greater than the tool's rated RPM. A 12,500 RPM angle grinder requires a brush rated for at least 12,500 RPM. Always check both numbers before mounting. The MSFS is marked on the brush, its packaging, or the manufacturer's literature.

MSFS by Brush Type

Typical MSFS ranges vary by brush diameter and type. Smaller diameter brushes generally have higher safe speed ratings because the tip velocity (surface speed) is lower at the same RPM.

Brush Type	Typical Diameters	Common MSFS Range	Typical Tool

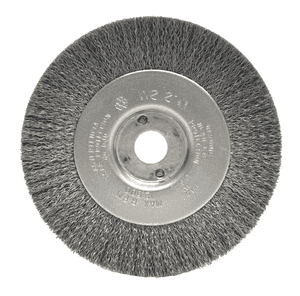

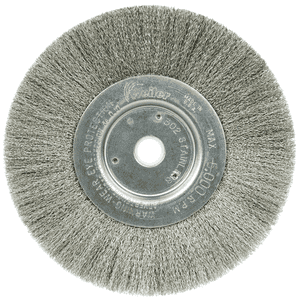

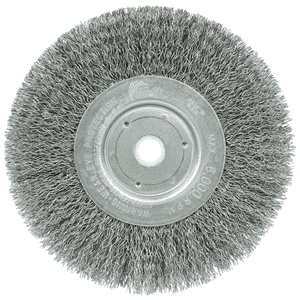

Wire wheel (bench grinder)	6-10 in	4,000-6,000 RPM	Bench or pedestal grinder
Cup brush (angle grinder)	3-6 in	6,000-12,500 RPM	4.5-7 in angle grinder
Wheel brush (angle grinder)	4-7 in	6,000-12,500 RPM	4.5-7 in angle grinder

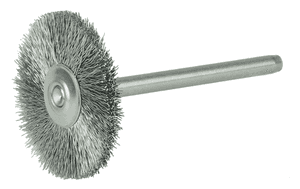

End brush (die grinder)	0.5-1.5 in	15,000-25,000 RPM	Die grinder, Dremel
Tube brush	0.25-3 in	Varies by shank size	Drill, die grinder

Always verify the specific MSFS printed on the brush. These ranges are general guidelines and vary by manufacturer, wire gauge, and fill density.

Brush Types & Selection

Choosing the right brush for the job is both a performance and safety decision. Using too aggressive a brush wastes material and increases hazard; using too light a brush leads operators to apply excessive pressure, which accelerates filament breakage.

Wire Material

Wire Material	Best For	Notes
Carbon steel	Steel and iron workpieces	Most common and economical. Can leave carbon residue on stainless steel, causing corrosion.
Stainless steel	Stainless steel, aluminum, food-grade surfaces	Prevents cross-contamination. Required when carbon transfer would compromise the workpiece.
Brass	Non-ferrous metals, spark-sensitive areas	Non-sparking. Softer wire for light cleaning and polishing without scratching.

Wire Configuration

Configuration	Action	Application

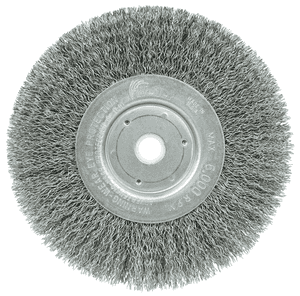

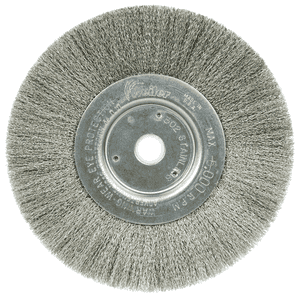

Crimped wire	Flexible, conforming contact	Light cleaning, deburring, surface blending, paint and coating removal
Knot wire (twist)	Aggressive, concentrated contact	Heavy slag removal, weld spatter cleanup, rust and scale removal

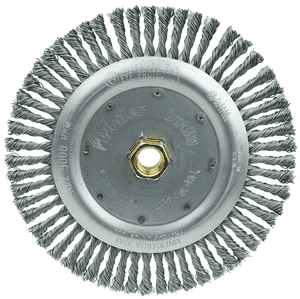

Stringer bead knot	Narrow, focused cleaning path	Weld bead cleaning, tight areas, pipe joints

Selection Factors

Wire gauge: Lower gauge number = thicker wire = more aggressive cut. Typical range is 0.006 in (finishing) to 0.035 in (heavy removal).
Trim length: Shorter trim = stiffer brush, more aggressive for flat surfaces. Longer trim = more flexible, better for contoured or irregular shapes.
Fill density: More wires per inch = faster cleaning and longer brush life, but reduced flexibility on contoured surfaces.
Brush diameter: Larger diameter = faster surface speed at the same RPM, more aggressive cutting action.

Guard Requirements

ANSI B165.1 requires that machine guards remain in place during all power brush operations. Guards must be positioned before the tool is activated, and the workpiece must be secured before starting.

Tool Type	Guard Requirement	Coverage
Bench/pedestal grinder	Peripheral guard enclosing the upper half of the wheel	Guard must cover at least 180 degrees of the brush. Tongue guard adjusted to within 1/4 inch of the wheel.
Angle grinder (cup/wheel brush)	Side guard (type 27 guard or equivalent)	Guard positioned between the brush and the operator. Must be adjusted so the open end points away from the operator.
Die grinder (end brush)	No peripheral guard typically required	Small diameter and enclosed collet reduce ejection risk. Eye/face protection is the primary safeguard.
Drill-mounted brush	No guard standard on drills	Operator must rely entirely on PPE and safe technique. Keep hands and body behind the brush at all times.

Never remove the guard. Removing or repositioning guards to get a better angle at the work is one of the most common violations in metalworking shops. If you cannot reach the work area with the guard in place, use a smaller brush or a different tool. A guard that does not fit the brush diameter is not an acceptable substitute.

PPE Requirements

ANSI B165.1 mandates personal protective equipment for anyone operating a power brush and for bystanders within the danger zone. Broken wire filaments, sparks, and debris are projected with significant force during normal operation.

PPE	Requirement	Standard

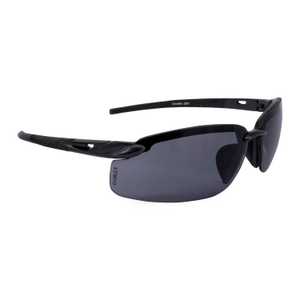

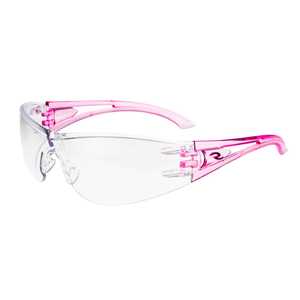

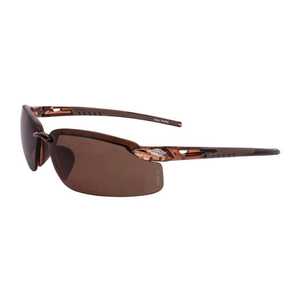

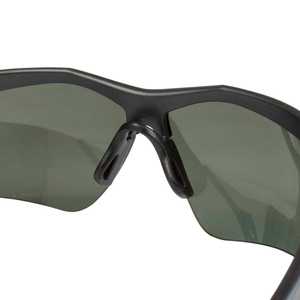

Eye protection	Safety goggles or face shield over safety glasses with side shields. Required for operators AND bystanders.	ANSI Z87.1
Face shield	Recommended for all operations; strongly recommended for bench grinder and heavy-duty applications.	ANSI Z87.1
Body protection	Long-sleeve shirt, full-length pants, leather or heavy-duty gloves, leather apron for extended operations.	Employer PPE policy

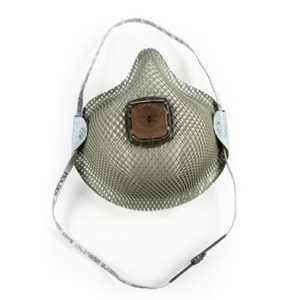

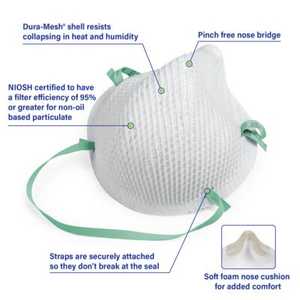

Respiratory protection	Dust mask for general brushing. Respirator required when brushing toxic metals (chromium, lead, cadmium, beryllium).	OSHA 1910.134

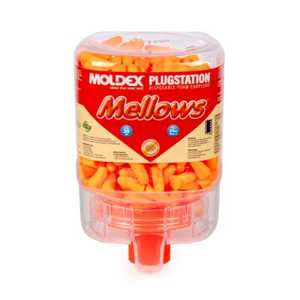

Hearing protection	Recommended for extended operations, especially in enclosed areas.	OSHA 1910.95

50-foot danger zone: ANSI B165.1 identifies a danger radius of over 50 feet from the brush. Anyone within this area, including passersby and coworkers, needs eye protection at minimum. This is often overlooked in open shop environments where multiple operations happen simultaneously.

Glove caution: Gloves protect against wire puncture and heat but introduce an entanglement risk. Loose-fitting gloves can catch on rotating filaments and pull the hand into the brush. Use snug-fitting leather gloves and never reach around the side of a spinning brush.

Safe Operating Procedures

Before Use

Inspect the brush for cracks, broken or missing wires, loose hub or arbor hole, and damage to the mounting hardware
Verify the brush MSFS is equal to or greater than the tool RPM
Confirm the brush diameter matches the tool and guard
Check that the guard is in place and properly adjusted
Secure the workpiece so it cannot shift or spin during brushing
Perform a one-minute spin test: Run the brush at operating speed in a protected enclosure or aimed at a solid backstop (not toward people) for at least one minute before applying it to the workpiece. This catches defective brushes before they fail under load.

During Use

Let the brush do the work. Apply light, steady pressure. Excessive force bends wire tips, accelerates breakage, and reduces brush life.
Keep the brush moving across the surface. Holding it in one spot causes heat buildup and uneven wear.
Position yourself so debris is thrown away from your body, not toward you.
Never reach around or under a spinning brush.
Do not use a brush that vibrates excessively, wobbles, or produces an unusual sound.
Keep loose clothing, hair, jewelry, and rags away from the brush.

Storage & Disposal

Store brushes so they are not resting on the wire tips (hang or lay flat)
Protect brushes from moisture to prevent rust on carbon steel wire
Dispose of worn brushes when the wire trim is worn to half its original length or when the brush throws filaments during the spin test
Never straighten bent wires. Replace the brush.

OSHA Regulatory Connection

There is a common misconception that OSHA 1910.215 (Abrasive Wheel Machinery) covers wire wheels. It does not. An Oregon OSHA Letter of Interpretation (IM-94-25) explicitly confirmed that wire wheels "are not abrasive wheels and therefore were removed from this section of the code."

This creates a regulatory gap where no OSHA standard contains detailed requirements specific to wire brush guarding, speed ratings, or brush-specific PPE. ANSI B165.1 fills this gap as the industry consensus standard, and OSHA can cite employers under the General Duty Clause (Section 5(a)(1)) for failing to follow it.

OSHA Standard	What It Covers	Wire Brush Relevance
1910.212	General machine guarding	Primary OSHA standard for wire brush guards. General requirement that machines with rotating parts must be guarded.
1910.215	Abrasive wheel machinery	Does not apply to wire wheels. Covers bonded abrasive wheels only.
1910.243	Portable powered tools	General guard requirements for portable grinders. Applies to the tool itself, not the brush specifically.
1910.134	Respiratory protection	Applies when brushing generates hazardous dust (toxic metals, coatings with lead or chromium).
1910.132-138	General PPE requirements	1910.133 covers eye/face protection. Requires hazard assessment to determine PPE needs.
Section 5(a)(1)	General Duty Clause	OSHA can cite employers for recognized hazards where no specific standard exists. ANSI B165.1 establishes the recognized safe practice.

Practical implication: Even though OSHA does not have a wire-brush-specific standard, following ANSI B165.1 is the strongest defense against a General Duty Clause citation. If an inspector finds wire brush operations without guards, proper PPE, or MSFS compliance, they will look to ANSI B165.1 as the benchmark for what a "recognized" safe practice looks like.

Common Hazards & Violations

Hazard	What Goes Wrong	Prevention
Exceeding MSFS	Using a brush on a tool that spins faster than the brush is rated for. Most dangerous and most common violation.	Check MSFS on brush and RPM on tool before every use. Match or derate.
Wire ejection	Broken filaments travel 50+ feet with enough force to penetrate skin and corneas.	Eye/face protection, guards, one-minute spin test, replace worn brushes.
Guard removal	Removing the guard to access tight areas or use an oversized brush.	Use a smaller brush. Never operate without the guard.
Excessive pressure	Pressing the brush hard into the work. Causes filament breakage, heat buildup, and premature brush failure.	Let the wire tips do the cutting. Light, steady pressure only.
Entanglement	Loose clothing, hair, gloves, or shop rags caught by the rotating brush.	Snug-fitting clothing and gloves. Tie back hair. No loose rags near the brush.
Kickback	Brush grabs the workpiece edge and throws it or jerks the tool out of the operator's hands.	Secure the workpiece. Maintain a firm grip. Approach edges at a shallow angle.
Skipping the spin test	Defective brush fails under load, throwing wire fragments and hub pieces.	One-minute spin test in a protected area before every new brush or start of shift.
Bystander exposure	Coworkers within 50 feet hit by wire fragments or debris without warning.	Clear the area or provide eye protection. Use barriers or screens for shared workspaces.

Frequently Asked Questions

Is ANSI B165.1 legally enforceable?

ANSI standards are voluntary consensus standards, not regulations. However, OSHA can enforce the requirements indirectly through the General Duty Clause (Section 5(a)(1)), which requires employers to maintain a workplace free from recognized hazards. ANSI B165.1 establishes what the "recognized" safe practice is for power brush operations, so failing to follow it can result in a citation.

Do wire wheels fall under OSHA's abrasive wheel standard (1910.215)?

No. OSHA 1910.215 applies only to bonded abrasive wheels (grinding wheels, cut-off wheels). Wire wheels were explicitly removed from this standard. Oregon OSHA Letter of Interpretation IM-94-25 confirmed this. Wire brush guarding falls under the general machine guarding standard, OSHA 1910.212.

Can I use a wire wheel on a variable-speed grinder set below the MSFS?

Yes, as long as the tool's actual operating speed does not exceed the brush's MSFS at any point during operation. With variable-speed tools, verify that the speed control is reliable and won't drift upward. Some variable-speed grinders increase RPM when load is reduced (when you lift the brush off the work), so check the no-load speed as well.

How do I know when to replace a wire brush?

Replace the brush when the wire trim has worn to half its original length, when the brush throws filaments during the spin test, when you see cracked or loose hub components, or when the brush produces excessive vibration. Never attempt to straighten bent wires or re-true a worn brush.

Why can't I use a carbon steel wire brush on stainless steel?

Carbon steel wire leaves microscopic iron particles embedded in the stainless surface. These particles corrode, creating rust spots (often called "tea staining") that compromise the corrosion resistance of the stainless steel. Always use stainless steel wire brushes on stainless steel workpieces. Many shops color-code brushes (yellow for stainless, black for carbon steel) to prevent cross-contamination.

What is the one-minute spin test?

Before using a new brush or at the start of each shift, ANSI B165.1 requires running the brush at operating speed for at least one minute in a protected area (behind a guard, aimed at a solid backstop, away from people). This test catches manufacturing defects, damage from storage or transport, and hub looseness before the brush is applied to a workpiece under load.

Do I need a respirator when using a wire brush?

A dust mask is adequate for general wire brushing on carbon steel. A respirator is required when brushing materials that contain toxic metals such as chromium, lead, cadmium, or beryllium, or when removing coatings that may contain these substances (old paint, plating, certain primers). Follow your facility's respiratory protection program per OSHA 1910.134.
