NFPA 70E: Electrical Workplace Safety

Arc flash hazard analysis, PPE categories, insulated tool requirements, and approach boundaries for electrical workers

Last updated: April 4, 2026

Overview

NFPA 70E, Standard for Electrical Safety in the Workplace, is the primary US standard for protecting workers from electrical hazards including arc flash, arc blast, and shock. Published by the National Fire Protection Association, it is updated on a three-year cycle. The current edition is NFPA 70E-2024.

While the National Electrical Code (NFPA 70) governs how electrical systems are installed, NFPA 70E governs how workers interact with those systems safely. OSHA does not have its own arc flash standard. Instead, OSHA's electrical safety regulations (29 CFR 1910.331-335, Subpart S) reference NFPA 70E as the recognized industry practice. OSHA inspectors routinely cite employers under the General Duty Clause for failing to follow NFPA 70E requirements.

Why this matters: Arc flash incidents cause severe burns, blindness, and fatalities. An arc flash can reach temperatures of 35,000 degrees Fahrenheit and blast pressure waves strong enough to throw a worker across a room. NFPA 70E exists because de-energizing equipment before work (lockout/tagout) is always the safest approach, but when energized work is unavoidable, the standard defines the protective measures that must be in place.

Arc Flash Hazard Analysis

Before any work on or near energized electrical equipment, NFPA 70E requires an arc flash risk assessment. This determines the incident energy (measured in cal/cm²) a worker could be exposed to, which dictates the PPE category and arc flash boundary distance.

Two Methods for Determining PPE

NFPA 70E provides two approaches. Employers must choose one and apply it consistently across a facility.

Method	How It Works	When to Use
Incident Energy Analysis	Engineering calculation using IEEE 1584 or NFPA 70E Annex D. Determines exact cal/cm² at working distance based on available fault current, clearing time, and equipment type.	Large facilities, complex systems, or when equipment labels require specific incident energy values.
PPE Category Method (Table Method)	Lookup tables in NFPA 70E (Table 130.7(C)(15)(a) and (b)) assign a PPE category (1-4) based on equipment type and task. No engineering calculation needed.	Facilities within the table parameters (available fault current and clearing time limits listed in the tables).

Key Inputs for Incident Energy Calculation

Available fault current (amps) at the equipment
Clearing time of the upstream protective device (seconds)
Working distance from the arc source (inches)
Equipment type and voltage
Electrode configuration (affects arc behavior)

Arc Flash Boundary

The arc flash boundary is the distance from the arc source at which the incident energy drops to 1.2 cal/cm², the threshold for a second-degree burn on unprotected skin. Anyone inside this boundary must wear arc-rated PPE appropriate to the incident energy level. The boundary distance is determined by the incident energy analysis or the PPE category tables.

PPE Categories

When using the PPE Category Method, NFPA 70E assigns one of four categories based on the task and equipment type. Each category specifies minimum arc rating and required PPE items.

Category	Min Arc Rating	Required PPE	Example Tasks
1	4 cal/cm²	Arc-rated long-sleeve shirt and pants (or coverall), arc-rated face shield or hood, safety glasses, hearing protection, leather gloves, leather work shoes	Reading a panel meter, operating a CB or switch, removing/installing CBs with covers on
2	8 cal/cm²	Arc-rated long-sleeve shirt and pants (or coverall), arc-rated face shield and balaclava or arc-rated hood, safety glasses, hearing protection, leather gloves, leather work shoes	Voltage testing, thermography with covers off, racking a CB in/out, working on control circuits up to 120V
3	25 cal/cm²	Arc-rated shirt and pants plus arc flash suit jacket (or full suit), arc-rated hood with face shield, safety glasses, hearing protection, rubber insulating gloves with leather protectors, leather work shoes	Inserting/removing starters from MCC buckets, working on energized parts up to 600V with covers off
4	40 cal/cm²	Arc-rated shirt and pants plus multilayer arc flash suit, arc-rated hood with face shield, safety glasses, hearing protection, rubber insulating gloves with leather protectors, leather work shoes	Work on energized parts above 600V, tasks where incident energy analysis yields 25-40 cal/cm²

Above 40 cal/cm²: NFPA 70E does not permit energized work when the incident energy exceeds 40 cal/cm². At that level, the equipment must be de-energized before any work begins. No amount of PPE is considered adequate protection above this threshold.

Insulated Tools

NFPA 70E Section 130.7(D)(1) requires insulated tools when working on or near exposed energized electrical conductors or circuit parts. Insulated tools must be rated for the voltages on which they will be used, which means they must meet ASTM F1505 or IEC 60900 for 1000V AC / 1500V DC rated hand tools.

When Insulated Tools Are Required

Any task performed within the restricted approach boundary of energized parts
Working inside energized panels, switchgear, or motor control centers
Torquing connections on energized bus bars or terminals
Removing or installing covers on energized equipment
Any time a conductive tool could contact an energized conductor or ground simultaneously

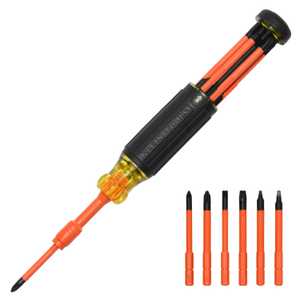

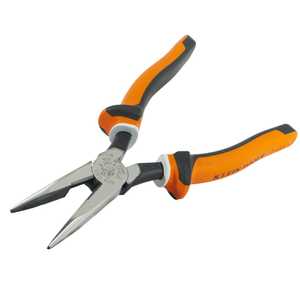

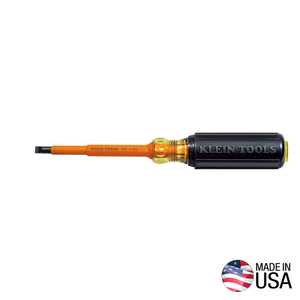

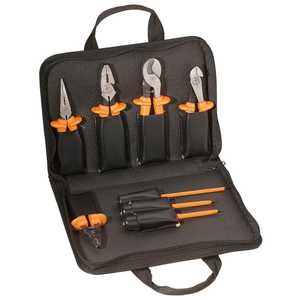

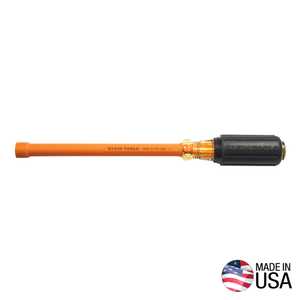

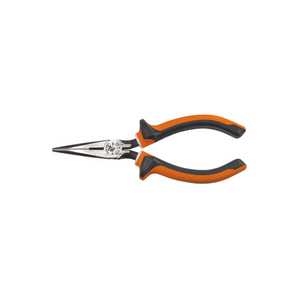

What Qualifies as an Insulated Tool

Rated voltage: Must be rated for at least the voltage of the circuit being worked on. Standard insulated tools are rated 1000V AC / 1500V DC.
Dual-layer insulation: Inner layer (typically yellow) provides primary insulation. Outer layer (red or orange) provides mechanical protection and a visual indicator. If the outer layer is damaged and the inner yellow layer is visible, the tool must be removed from service.
Individual testing: Each tool is proof-tested at 10,000V before leaving the factory per ASTM F1505.
Marking: Double triangle symbol, voltage rating, and manufacturer identification permanently marked on each tool.

Not the same as "insulated grip" tools: Standard hand tools with plastic-dipped handles are not insulated tools. The dip coating is for comfort, not electrical protection. Only tools manufactured and tested to ASTM F1505 or IEC 60900, with the double triangle marking, qualify as insulated tools under NFPA 70E. Using non-rated tools on energized circuits is a serious violation.

Approach Boundaries

NFPA 70E defines three shock protection boundaries around exposed energized conductors. Each boundary has different qualification and PPE requirements. These distances are listed in Table 130.4(E)(a) for AC systems and Table 130.4(E)(b) for DC systems.

Nominal Voltage (AC)	Limited Approach	Restricted Approach	Prohibited Approach
50-150V	3 ft 6 in	Avoid contact	Avoid contact
151-750V	3 ft 6 in	1 ft 0 in	0 ft 1 in
751V-15kV	5 ft 0 in	2 ft 2 in	0 ft 7 in
15.1-36kV	6 ft 0 in	2 ft 7 in	0 ft 10 in
36.1-46kV	8 ft 0 in	2 ft 9 in	1 ft 5 in

Distances shown for exposed movable conductors. Fixed circuit parts have different values. See NFPA 70E Table 130.4(E)(a) for the full table.

What Each Boundary Means

Limited Approach Boundary: Only qualified persons may enter. Unqualified persons may enter only when continuously escorted by a qualified person.
Restricted Approach Boundary: Qualified persons only. Must use insulated tools, wear shock protection PPE (rubber insulating gloves with leather protectors), and have an energized electrical work permit.
Prohibited Approach Boundary: Treated the same as making direct contact with energized parts. Requires the same training, justification, and PPE as direct contact.

Energized Electrical Work Permit

NFPA 70E Section 130.2(B) requires an Energized Electrical Work Permit (EEWP) when work will be performed within the restricted approach boundary or when an arc flash hazard exists. The permit documents the justification for performing work on energized equipment instead of de-energizing first.

Required Permit Contents

Description of the circuit and equipment to be worked on
Justification for why the work must be performed energized
Description of the safe work practices to be used
Results of the shock and arc flash risk assessments
PPE requirements determined by the risk assessment
Approach boundary distances
Evidence of completed job briefing
Energized work approval signatures (both the worker and a responsible manager)

Exceptions to the permit requirement: NFPA 70E allows certain tasks without a permit, including testing to verify de-energized status, thermographic scanning, voltage measuring for diagnostic purposes, and operating a disconnect switch or circuit breaker under normal conditions. These tasks still require a risk assessment and appropriate PPE.

Lockout/Tagout Connection

NFPA 70E and OSHA 1910.147 (Lockout/Tagout) work together. OSHA 1910.147 is the general LOTO standard for controlling hazardous energy. NFPA 70E Article 120 provides electrically-specific lockout/tagout procedures that go beyond the OSHA general requirement.

Requirement	OSHA 1910.147	NFPA 70E Article 120
Scope	All hazardous energy sources (mechanical, hydraulic, pneumatic, electrical, chemical, thermal)	Electrical energy only
Verification	Verify zero energy state	Test for absence of voltage with a rated voltage detector, then verify the tester works after testing
Stored energy	Dissipate or restrain stored energy	Specifically addresses capacitors, UPS systems, and regenerative drives that can re-energize
PPE during LOTO	Not specified beyond general PPE rules	Arc-rated PPE may still be required while applying/removing locks because the equipment is still energized until verified de-energized

Critical point: Workers often assume they are safe once a breaker is off. But NFPA 70E requires arc-rated PPE while performing the lockout/tagout steps themselves, because the equipment is still potentially energized until absence of voltage is confirmed. A breaker position indicator does not prove the circuit is dead.

Common Violations

Violation	Why It Happens	Risk
No arc flash risk assessment	Facility has never performed an arc flash study or labels are outdated	Workers have no idea what PPE category applies. Wrong PPE or no PPE.
Using non-insulated tools on energized circuits	Workers grab the nearest screwdriver instead of rated insulated tools	Short circuit, arc flash initiation, electrocution
No energized work permit	"It'll only take a minute" or unfamiliarity with the permit requirement	No documented justification, risk assessment, or PPE determination
Inadequate PPE for the category	Wearing Category 1 gear for a Category 3 task, or no arc-rated clothing at all	Severe burns if an arc flash occurs
No voltage verification after LOTO	Assuming the circuit is dead because the breaker is in the off position	Backfeed from another source, capacitor discharge, UPS energization
Outdated arc flash labels	Labels were installed years ago and the electrical system has been modified since	PPE selection based on wrong incident energy values
Missing approach boundary signage	Equipment doors lack arc flash and shock hazard labels	Unqualified persons enter hazard zones without awareness
Skipping the job briefing	Crew is experienced and considers the task routine	No discussion of hazards, boundaries, or emergency procedures for this specific task

Frequently Asked Questions

Is NFPA 70E an OSHA regulation?

No. NFPA 70E is a consensus standard published by the NFPA, not a federal regulation. However, OSHA's electrical safety standards (29 CFR 1910.331-335) were originally based on NFPA 70E, and OSHA inspectors use NFPA 70E as the benchmark for what constitutes recognized safe practice. Employers can be cited under the General Duty Clause for not following NFPA 70E requirements.

How often do arc flash labels need to be updated?

NFPA 70E requires that the arc flash risk assessment be reviewed and updated whenever a major modification or renovation takes place, and it must be reviewed for accuracy at intervals not to exceed five years. If the electrical system has changed (new transformers, different breaker settings, added loads), the labels may no longer reflect the actual incident energy.

What voltage threshold triggers NFPA 70E requirements?

NFPA 70E applies to all voltages, including 120V and below. The 2024 edition clarified that even 120V circuits can produce arc flash hazards under certain conditions (high available fault current, slow clearing times). The common belief that "it's only 120V, it's safe" has led to numerous injuries and fatalities.

Can I use regular tools with rubber tape wrapped around them?

No. Wrapping standard tools with electrical tape or rubber tape does not make them insulated tools. Insulated tools must be manufactured with a two-layer insulation system, individually proof-tested at 10,000V, and marked with the double triangle symbol per ASTM F1505 or IEC 60900. Field-modified tools do not meet these requirements and are not acceptable under NFPA 70E.

What is the difference between "arc-rated" and "flame-resistant" clothing?

All arc-rated clothing is flame-resistant, but not all flame-resistant clothing is arc-rated. Arc-rated clothing has been tested per ASTM F1959 to determine its arc thermal performance value (ATPV) in cal/cm². Flame-resistant clothing that has not been arc-tested does not have a cal/cm² rating and cannot be used to satisfy NFPA 70E PPE category requirements.

Who is considered a "qualified person" under NFPA 70E?

A qualified person is someone who has demonstrated skills and knowledge related to the construction and operation of electrical equipment and installations, and has received safety training to identify and avoid the hazards involved. This includes training on the specific equipment they will work on, arc flash and shock hazard awareness, proper use of PPE, and emergency procedures including CPR/AED.

Do I still need arc flash PPE if I am just taking voltage readings?

Yes. Voltage testing on energized equipment exposes the worker to both shock and arc flash hazards. The task must be assessed for its PPE category, and the worker must wear the appropriate arc-rated PPE. Voltage testing typically falls under PPE Category 1 or 2 depending on the equipment and voltage, but this must be determined by the risk assessment, not assumed.
