NFPA 30: Flammable and Combustible Liquids Code

NFPA 30 is the consensus code that governs how flammable and combustible liquids are stored, handled, and used in the United States. It covers everything from a single 5-gallon safety can on a shop bench to a 500,000-gallon aboveground tank farm. If a facility handles gasoline, solvents, paints, thinners, fuel oil, hydraulic fluid, or cooking oil, NFPA 30 applies.

NFPA 30 is developed and maintained by the National Fire Protection Association on a three-year revision cycle, so the requirements stay current with modern containers, tank construction, and fire protection engineering. It is adopted by reference in the International Fire Code (IFC) Chapter 57 and by most state and local fire codes, which means the version your Authority Having Jurisdiction (AHJ) enforces is typically whatever edition your jurisdiction has adopted.

Federal OSHA has its own flammable liquid rule, 29 CFR 1910.106, but that text was lifted from the 1969 edition of NFPA 30 and, aside from relabeling the liquid classes into GHS Categories 1-4 in 2012, has changed very little since. In practice, local fire marshals enforce current NFPA 30 directly, and OSHA accepts it in place of the older rule text when it protects employees at least as well. If you design your storage and handling around current NFPA 30, you will generally meet or exceed 1910.106 at the federal level.

NFPA 30 sorts liquids by flash point and boiling point into six classes. Flammable liquids are Class I (flash point below 100 F). Combustible liquids are Class II and III (flash point at or above 100 F). The class determines container size limits, cabinet capacity, separation distances, and nearly every other requirement in the code.

The examples are typical, not definitive. Products like paint thinner, diesel, and kerosene vary by formulation, so classify from the closed-cup flash point on the product's SDS, not the product name.

NFPA 30 caps the maximum container size by liquid class. The idea is simple: the more volatile the liquid, the smaller the allowable container, because a failed container of a Class IA solvent like diethyl ether is a much bigger problem than a failed container of diesel. The table below summarizes NFPA 30 Table 9.4.3, which covers Class I through IIIA; Class IIIB containers are governed by the quantity and storage-arrangement rules instead.

Plastic and composite IBCs are not permitted for any Class I liquid; only metal portable tanks and metal IBCs qualify there. One useful exception: water-miscible Class IB and IC liquids may go in listed plastic containers up to 60 gallons when stored with the required protection. The odd-looking 1.3 and 5.3 gallon figures are metric conversions (5 L and 20 L), which is why solvents are sold in 5-liter jugs.

OSHA 1910.106 keeps its own, stricter container table from the 1969 code: 60 gallons for drums and 660 gallons for portable tanks. A general-industry workplace has to satisfy both, so design to the tighter number when the two disagree.

NFPA 30 recognizes a hierarchy of indoor storage, each with progressively more stringent construction and fire protection. The practical order from smallest to largest is: storage cabinet, then inside liquid storage area, then cut-off room, then attached or detached storage building.

Storage cabinet limits

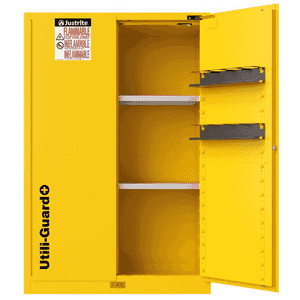

• Maximum 120 gallons of Class I, Class II, and Class IIIA liquid in a single cabinet under current NFPA 30 (section 9.5.1)
• OSHA 1910.106 still enforces the older, stricter split of no more than 60 gallons of Category 1-3 liquid (roughly Class I and II) per cabinet, so hold Class I/II to 60 gallons in any workplace and you satisfy both
• The total across a group of cabinets is capped at the maximum allowable quantity (MAQ) per control area (section 9.5.2). The old three-cabinets-per-fire-area rule is gone from current NFPA 30, but it survives in OSHA's construction standard (1926.152) and some local fire codes, so check what your AHJ enforces
• Cabinets must be listed (FM Approved or UL Listed) or built to the construction spec in NFPA 30 section 9.5.3
• Cabinet vents must remain sealed with the factory bung unless connected to an approved exhaust system, same as OSHA

Maximum allowable quantities per control area

Above cabinet capacity, the governing number in NFPA 30 section 9.6 is the maximum allowable quantity (MAQ) per control area: how much liquid can sit in one fire-separated portion of a building before the storage has to move into a dedicated liquid storage room or warehouse built to the Chapter 16 protection criteria. The base MAQs for general and industrial occupancies:

Base MAQs double when the liquid is kept in listed cabinets or safety cans, double again in a fully sprinklered building (up to 4x total), and drop sharply in assembly, educational, and health-care occupancies, where the cap is 10 gallons of Class I and II combined. OSHA's inside-storage-room rule works differently: a density limit of 2 to 10 gallons per square foot depending on fire rating and fire protection, with rooms capped at 500 square feet. Past these numbers you are into cut-off rooms, attached buildings, or a detached liquid warehouse with rated construction and engineered sprinkler protection.

Common engineering controls

• Mechanical or gravity ventilation designed to prevent vapor accumulation, with at least 1 cfm per square foot of floor area where Class I liquids are dispensed or transferred
• Classified electrical equipment (NFPA 70 Article 500, typically Class I Division 2) in areas where Class I liquids are dispensed or transferred. Storing sealed containers alone does not usually classify the area, though an inside liquid storage room holding Class I liquids still needs Division 2 wiring
• Spill containment with a raised sill, curb, or floor slope to hold the larger of the biggest container or 10 percent of aggregate volume
• Self-closing fire doors rated for the wall in which they sit, with signage identifying the hazard class
• No Class I liquids stored in basements unless specifically permitted for the occupancy

Aerosol products are not covered by the liquid classes above. They have their own companion code, NFPA 30B, the Code for the Manufacture and Storage of Aerosol Products. The reason is the package itself: a spray can holds a product plus a propellant that is often a flammable gas (propane, isobutane, or dimethyl ether), so a pallet of aerosols behaves more like a pressurized flammable hazard than an open liquid. If a facility stocks, sells, or warehouses aerosols above small quantities, NFPA 30B is the rule that applies. It is adopted by reference through IFC Chapter 51 and NFPA 1 Chapter 61, the same way NFPA 30 is adopted by reference through IFC Chapter 57.

Instead of flash point, NFPA 30B classifies aerosols by total chemical heat of combustion, the energy its contents and propellant can release in a fire. That single number sorts every aerosol into one of three levels, and the level drives the quantity limits and fire protection that follow.

Level 1 aerosols are the lowest hazard and are handled as an ordinary Class III commodity. Level 2 and Level 3 are the ones the code limits. In a general occupancy other than a warehouse, such as a workshop, business, or industrial space, NFPA 30B caps how much you can keep on hand per fire area, and the listed flammable storage cabinets covered above are what let you legally keep more.

These figures are the common general-occupancy limits and a simplified read of NFPA 30B, which sets separate quantity provisions for mercantile and retail display, back stock, and warehouse storage, and varies by the edition your AHJ has adopted. Confirm the exact limits for your occupancy against the adopted code.

Tank storage is where NFPA 30 goes well beyond what OSHA 1910.106 covers. Chapters 21 through 28 of the code handle aboveground tanks, underground tanks, vaulted tanks, protected aboveground tanks, and tank vehicles. The short version is that tanks must be built to a recognized standard (UL 142 for shop-built aboveground tanks, UL 58 for underground tanks, API 650 for large field-erected tanks), installed with proper spacing, vented for both normal and emergency relief, and protected against corrosion and overfill.

Aboveground storage tanks (AST)

• Separation distances from property lines and buildings, scaled by tank capacity and liquid class
• Secondary containment (dike, remote impoundment, or double-wall construction) sized for the full tank volume plus rain allowance
• Normal venting sized per API 2000 or equivalent; emergency venting sized to prevent rupture in a fire exposure
• Overfill prevention per NFPA 30 section 21.7: written procedures, high-level alarms, or automatic shutdown, scaled to tank size and how the tank receives product
• Listed protected tanks (UL 2085) or fire-resistant tanks (UL 2080) earn reduced separation distances

Underground storage tanks (UST)

• Minimum 2 feet of cover, or 1 foot with 4 inches of reinforced concrete slab
• Corrosion protection via cathodic system, fiberglass construction, or listed coating
• Secondary containment and interstitial monitoring for new installations per EPA 40 CFR 280 and NFPA 30
• Leak detection through automatic tank gauging, interstitial monitoring, or statistical inventory reconciliation
• Overfill equipment that either alarms at no more than 90 percent full or shuts off the fill at no more than 95 percent
• Vent piping terminating above grade in a safe location, minimum 12 feet above adjacent ground for Class I liquids

Static electricity is a documented ignition source for flammable liquid fires. When a Class I liquid flows through a pipe or into a container, friction builds a static charge on the liquid and the container. If that charge discharges to a grounded object through flammable vapor, it can ignite the vapor. NFPA 30 Chapter 18 requires transfer operations to control static using the bonding and grounding rules in section 6.5.4, and OSHA 1910.106 is blunt about the common case: a liquid with a flash point below 100 F is not to be dispensed into a container unless the nozzle and container are electrically interconnected.

The rules in practice

• Bond the source container to the receiving container with a flexible copper strap or wire with listed clamps on both ends
• Ground at least one of the two containers to a permanent earth ground, not to a painted surface or a floating rack
• Use a dead-man fill nozzle on bulk transfers to force operator attention
• Allow a settling time before disconnecting to let accumulated charge dissipate
• Keep transfer operations away from open flames, non-classified electrical equipment, and non-conductive containers

NFPA 30 Chapter 16 and the associated protection tables are where fire protection engineers spend most of their time. The density, area of operation, and hose stream allowance for a flammable liquid warehouse depend on the class of liquid, the container type, storage height, and rack or palletized configuration. A miscalculated sprinkler design is usually why a loss in a flammable warehouse becomes a total loss.

In simple terms, an unprotected Class I warehouse is not allowed. Storage must be limited to small quantities, protected by an automatic sprinkler system designed to the Chapter 16 tables (or an equivalent performance-based design), or kept in listed cabinets and rooms that break the storage into manageable units. Foam-water sprinklers are common for bulk processing, and dry chemical systems are used for specific hazards like dispensing pumps.

Related systems to cross-check

• NFPA 13 Sprinkler Systems for base sprinkler design and hydraulic calculations
• NFPA 17A Wet Chemical Extinguishing Systems for kitchen and cooking oil hazards (Class IIIB fryer fires)
• NFPA 2001 Clean Agent Systems for sensitive process areas and flammable liquid rooms where water is undesirable
• OSHA 1910.157 Portable Fire Extinguishers for placement near storage rooms and transfer stations

NFPA 30 is not federal law by itself. It becomes enforceable when a jurisdiction adopts it, either directly or through the International Fire Code. IFC Chapter 57 adopts NFPA 30 almost in full, so any jurisdiction on a current IFC edition is effectively on current NFPA 30. State fire codes in California (Title 24 Part 9), Florida, New York, and most others reference NFPA 30 as well. The version you have to meet is whichever edition your local AHJ has adopted, which is usually not the newest NFPA edition.

Federal OSHA 1910.106 is the legal baseline every workplace has to meet, but it is essentially frozen at the 1969 NFPA 30 edition. The modern container size table, Class IIIB designation, MAQ per control area, protected tank listings, and most of the tank storage detail in current NFPA 30 are missing from 1910.106. In a federal OSHA inspection, following the current edition of NFPA 30 in place of the older 1910.106 text is generally handled as a de minimis condition (technically a deviation, but not cited) provided the newer practice is at least as protective as the rule it replaces.

Flammable liquid storage is one of the most frequently cited areas in both federal OSHA inspections and local fire code inspections. The same handful of problems come up over and over.

• Exceeding 60 gallons of Class I-II liquid in a single cabinet, still the OSHA limit even though current NFPA 30 allows 120 gallons of Class I-IIIA total
• Using unlisted cabinets, or treating a metal storage cabinet bought from a big-box hardware store as a flammable cabinet
• Storing gasoline in a hardware-store plastic gas can on a shop bench instead of an FM-approved or UL-listed safety can
• Missing bonding and grounding during drum-to-container transfers, especially for solvents and fuels
• No spill containment on or under the storage area, or a sill that is too low to hold 10 percent of the aggregate volume
• Oily rags in open buckets or cardboard boxes instead of self-closing metal waste cans
• Storing Class I liquids in a basement or below-grade area without the ventilation and fire protection that the code requires
• Outdoor aboveground tanks without required separation distances, diking, or overfill protection
