Panic Hardware Requirements
IBC requirements for panic hardware: when required, mounting height, force limits, device types, and fire exit hardware
Last updated: February 25, 2026
Overview
Quick Answer
Panic hardware is required in assembly and educational occupancies with 50+ occupants, and all high-hazard occupancies regardless of count. Mount at 34–48 inches AFF. Maximum 15 lbs force, single motion to release.
Panic hardware is a critical egress component governed by IBC Section 1010.2.9. These devices are designed to allow instant exit under panic conditions by requiring only a single pushing motion to release the door latch. Unlike standard door hardware, panic devices must operate without any prior knowledge, key, or special effort from the occupant.
The International Building Code distinguishes between standard panic hardware and fire exit hardware. Both serve the same egress function, but fire exit hardware carries additional fire-resistance ratings for use on rated door assemblies. Proper specification requires understanding when panic hardware is mandated, how it must be installed, and which device types are appropriate for each application.
When Required
Quick Answer
IBC Section 1010.2.9: Assembly (A) and Educational (E) with occupant load greater than 50 must have panic hardware on egress doors. High-hazard (H) requires panic hardware at any occupant load.
| Occupancy Group | Occupant Load Threshold | Requirement |
|---|---|---|
| Assembly (A) | 50 or more | Required on egress doors |
| Educational (E) | 50 or more | Required on egress doors |
| High Hazard (H) | Any | Required regardless of count |
| Stairway doors | Varies | Required by some jurisdictions |
- Applies to doors in the path of egress travel, not storage or utility doors
- Occupant load is calculated per IBC Table 1004.5, not posted capacity
- Multiple rooms sharing a common egress path — aggregate the occupant loads
- Some jurisdictions extend the requirement to Group B (business) and M (mercantile) for large venues
Mounting Height
Quick Answer
Per IBC Section 1010.2.9 and UL 305: actuating bar or push pad must be 34 to 48 inches above the finished floor, extending at least half the width of the door leaf.
- Actuating bar: 34 inches minimum, 48 inches maximum above finished floor (AFF)
- Bar must extend at least half the width of the door leaf
- Touchpad devices: same height range, minimum 1/2 door width coverage
- No sharp edges or projections that could catch clothing
- ADA consideration: operable with one hand, no tight grasping required
Force & Operation
IBC Section 1010.2.9 establishes strict force and operation requirements for panic hardware. These limits ensure that any occupant, regardless of age, strength, or familiarity with the building, can exit quickly during an emergency.
- Maximum operating force: 15 pounds to release the latch
- Single motion: one push, no twisting, turning, or special knowledge required
- No key, tool, or special knowledge shall be required to release
- Door must swing in the direction of egress travel
- Self-closing or automatic-closing after release
- Cannot be locked from the egress side (exceptions for delayed egress)
Common Violation: Adding supplemental locks (deadbolts, slide bolts, chain locks) to doors equipped with panic hardware is a code violation. The panic device must be the sole securing mechanism on the egress side.
Types of Devices
Panic hardware is available in several configurations, each suited to different door types and security requirements. The choice depends on the door construction, frame type, fire rating, and level of security needed.

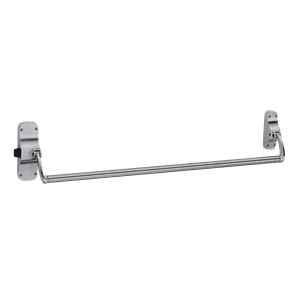

Rim Exit Device
- Most common type
- Latch engages the door frame strike at the lock edge
- Surface-mounted on the push side of the door
- Available in fire-rated and non-fire-rated versions
- Best for: single doors, most commercial applications
Mortise Lock Exit Device
- Latch mechanism mortised into the door edge
- Can include a keyed cylinder for locking from the outside
- Higher security than rim devices
- Best for: storefront doors, schools, offices requiring exterior locking
Surface Vertical Rod
- Rods extend to the top and bottom of the door
- Latches at head and sill of the frame
- Used primarily on double doors without a mullion
- Best for: double egress doors, wide openings
Concealed Vertical Rod
- Same function as surface vertical rod, concealed within the door
- Cleaner appearance, no visible rods
- More complex installation and maintenance
- Best for: architectural applications, high-end commercial
Fire-Rated Applications
Fire exit hardware is a specific category of panic hardware that has been tested and listed for use on fire-rated door assemblies. The distinction between standard panic hardware and fire exit hardware is critical for code compliance and occupant safety.
- Fire exit hardware: panic hardware listed for use on fire-rated door assemblies
- Must meet UL 10C (positive pressure fire test) AND UL 305 (panic hardware)
- Positive latching required — the latch bolt must fully engage automatically
- Vertical rod devices on fire doors: top rod only (bottom rod not permitted on fire doors in most jurisdictions)
- Fire exit hardware is labeled with a UL fire-rated sticker in addition to the panic hardware label
- Do not use standard panic hardware on fire-rated openings — it will not latch properly
Critical Distinction: Standard panic hardware and fire exit hardware are NOT interchangeable. Using non-fire-rated panic devices on fire-rated openings is a code violation and compromises fire compartmentalization. Always verify the fire-rating label on the device.
Delayed Egress
IBC Section 1010.2.11 permits delayed egress locking systems on doors equipped with panic hardware under specific conditions. These systems are commonly used in healthcare facilities, retail stores, and other buildings where security concerns require a brief delay before the door releases.
- Maximum 15-second delay after actuation of the panic device
- Building must be fully sprinklered (NFPA 13) and have fire detection (NFPA 72)
- Audible alarm must sound immediately upon pushing the device
- Signage required: "Push Until Alarm Sounds. Door Can Be Opened in 15 Seconds."
- Power failure must release the lock immediately
- ADA consideration: signage in raised letters and Braille
- Not permitted on doors serving high-hazard (H) occupancies
Testing Standards
Panic hardware must comply with two primary testing standards that govern operational durability and safety performance. Specifiers should understand the grade distinctions to match device performance with application demands.
- ANSI/BHMA A156.3: operational testing — Grade 1 requires 500,000 cycles
- ANSI/UL 305: safety testing — panic hardware safety listing
- UL 10C: fire test for fire exit hardware (positive pressure)
- Grade 1: heavy-duty commercial, 500,000 cycles (schools, hospitals, high-traffic)
- Grade 2: standard commercial, 250,000 cycles (offices, retail)
- Always specify Grade 1 for assembly and educational occupancies
Frequently Asked Questions
At what occupant load is panic hardware required?
50 or more for assembly (A) and educational (E) occupancies. High-hazard (H) requires panic hardware at any occupant load. The threshold is based on calculated occupant load per IBC Table 1004.5.
What is the mounting height for panic hardware?
The actuating bar or push pad must be between 34 and 48 inches above the finished floor (AFF), per IBC Section 1010.2.9 and UL 305. The bar must extend at least half the width of the door leaf.
What's the difference between panic hardware and fire exit hardware?
Panic hardware is a door-latching device designed for one-motion egress. Fire exit hardware is panic hardware that has been additionally tested and listed for use on fire-rated door assemblies per UL 10C. Fire exit hardware requires positive latching and carries both a UL 305 listing and a fire-rated label.
