NFPA 75 Firestop Compliance for Data Centers

NFPA 75 is the standard most data center operators encounter when an AHJ, insurer, or internal compliance team starts asking firestop questions. It layers on top of IBC and local fire codes and focuses on the specific ways IT equipment areas differ from a generic commercial building.

This guide covers the NFPA 75 sections that drive real firestop decisions, how data center topology maps to firestop zones, and the typical failure modes that show up when continuous cable churn meets passive fire protection. It is scoped to operational compliance and remediation, not new-construction spec authority.

For the broader cross-facility program view — audit cadence, contractor selection, documentation — see the firestop compliance and remediation for mission-critical facilities hub.

NFPA 75 — "Standard for the Fire Protection of Information Technology Equipment" — applies to facilities or portions of facilities containing IT equipment. That includes traditional computer rooms, data halls, colocation suites, hyperscale campuses, and any space where the primary use is processing or storing data.

NFPA 75 is a specialized overlay, not a replacement for IBC or NFPA 101. IBC sets the base fire-resistance requirements for walls, floors, and occupancy separations. NFPA 101 sets life-safety requirements. NFPA 75 adds IT-specific requirements for risk analysis, room construction, containment, detection, and fire protection specifically tailored to the equipment and occupancy.

When three codes apply to the same space, the most restrictive requirement governs. Firestop requirements in IBC for through-penetrations and joints still apply in full to IT rooms. NFPA 75 effectively raises the bar on how those penetrations get surveyed, documented, and maintained over time.

A handful of NFPA 75 requirements drive most of the firestop work. The section numbers below reference the 2024 edition; earlier editions use comparable language with different numbering.

Fire-rated construction around IT equipment rooms

NFPA 75 calls for fire-resistance-rated separation between IT equipment rooms and adjacent occupancies. Minimum rating depends on risk analysis and the specific equipment and materials inside. Every wall, floor, and ceiling assembly forming that separation has to maintain its rating — which means every pipe, conduit, cable tray, and duct crossing that boundary needs firestop.

Cable penetration continuity

Cable routing through rated assemblies is specifically addressed. The requirement is that each cable penetration be sealed to maintain the assembly's fire-resistance rating. This is where the MAC problem hits hardest: the standard was written assuming a static installation, but real data centers are anything but static.

Separation of incompatible uses

NFPA 75 distinguishes IT equipment areas from record storage, tape libraries, battery rooms, mechanical rooms, and offices. Each combination has its own separation requirements. In practice, this means a data hall next to a battery room has different firestop requirements than a data hall next to an office corridor.

Abandoned cables and equipment

NFPA 75 addresses abandoned cables — cables that were installed but are no longer in service. Abandoned cables that remain in place must still be accounted for in firestop seals. They can't be ignored just because they aren't carrying traffic. Surveys should reconcile the physical penetration inventory against the logical cable inventory to flag abandoned runs.

The firestop problem looks different depending on how the facility is laid out. Three common topologies and their characteristic penetration patterns:

Hyperscale

Large data halls, often sub-divided into smoke compartments at 25,000 or 50,000 sq ft. Cable runs move between Main Distribution Areas (MDA), Horizontal Distribution Areas (HDA), and Equipment Distribution Areas (EDA). Firestop-heavy zones: MDA wall penetrations, cross-aisle cable trays through smoke compartment boundaries, and penetrations into electrical and mechanical rooms that flank data halls. Rooftop HVAC penetrations are easy to miss and a common audit finding.

Colocation

Shared infrastructure with tenant-specific cages or suites. Firestop-heavy zones: tenant separation walls, shared Main Meet-Me Room (MMR) penetrations, and any cable path that crosses from tenant space into shared risers. The compliance question is usually "who owns this penetration" — the operator, the tenant, or the carrier who pulled the cable. Answer that contractually before work starts, not after an inspection finding.

Enterprise

A computer room inside a larger building. Firestop-heavy zones: the dedicated walls separating the computer room from adjacent office or warehouse space, raised floor penetrations through the floor slab below, cable pathways to telecom closets, and generator or UPS room separations. These facilities tend to have the oldest firestop installations and the most drift from original spec.

Moves, adds, and changes — the ongoing work of pulling cables, relocating equipment, and decommissioning old runs — are a fact of life in every active data center. They are also the single biggest driver of firestop non-compliance. A penetration that was compliant on day one drifts out of compliance the first time a cable is added, removed, or rerouted without the seal being restored to a listed system.

Three strategies reduce the damage:

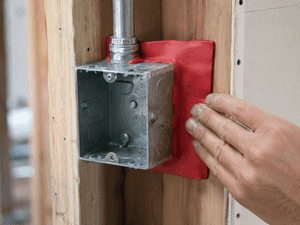

• Choose re-enterable products from the start. Firestop pillows, re-enterable putties, and pathway devices let technicians pass cables through without destroying the seal.
• Pre-install pathway devices where cables are expected to grow. A pathway device is a permanent penetration assembly that accepts additional cables without requiring any firestop work after the initial install. The up-front cost is higher, but the lifetime labor savings are typically decisive.
• Treat every MAC as a firestop repair ticket. Integrate firestop into the change-control process so no work order closes without the seal being restored. Staff and contractors need training; reviews need to be automatic; and the inventory record needs to be updated every time.

The same five or six penetration types show up in nearly every data center survey. Each has a dominant product category.

Product selection specifics and UL system matching are covered in the firestop product selection guide.

A defensible NFPA 75 firestop program runs on four recurring activities:

Pre-move-in baseline

Before IT equipment goes in, survey every penetration and produce a baseline inventory with photos, UL system mapping, and location tags. The baseline is the reference point for every future audit. Without it, later disagreements about whether a penetration was "pre-existing" have no authoritative answer.

Change-control photos

Every MAC that touches a rated penetration gets a before-and-after photo attached to the work order. This is both a compliance artifact and a training tool — technicians who know their work will be audited do better work.

Annual walkthrough

Walk the full inventory at least once a year. Focus on high-change zones first (MDA cross-aisle cable trays, colo cage boundaries, shared MMR risers). An annual walkthrough is the minimum that stands up to outside scrutiny. Quarterly is better for facilities with heavy churn.

Records for hyperscaler and insurer audits

Hyperscaler tenant agreements and large insurance policies often require documented firestop compliance as a condition of occupancy or coverage. Records need to be organized by penetration ID, searchable, and traceable to installation dates and product lot numbers. A flat folder of photos is not a record.

Patterns that show up on data center firestop audits often enough to predict:

• Raised-floor slab penetrations missed during fit-out. The work happened before the raised floor went in, photos were inadequate, and nobody caught it until the next audit.
• Cable trays through firewalls at row ends. Cable bundles grew beyond what the original listed system allowed.
• Generator and UPS room penetrations. Mechanical fit-outs happen late in the project and firestop often gets compressed.
• Rooftop HVAC penetrations. Frequently installed by a different contractor than the one who handled the rest of the building.
• MMR risers with multiple tenant cable pulls. Each pull damaged the seal; no one tenant owns the restoration.
• Abandoned cables left in place through rated penetrations. They still count toward the cable fill of the tested system.
• Engineering judgments that expired or referenced product lines the manufacturer no longer supports. A five-year-old EJ on a discontinued product is not a current EJ.
