JL Industries Economyline Steel Surface Mount Fire Extinguisher Cabinet 5 lb White 5013N20W
JL Industries
$69.00
In stock. Usually ships in 1-2 business days.
Volume pricing on 10+ units.

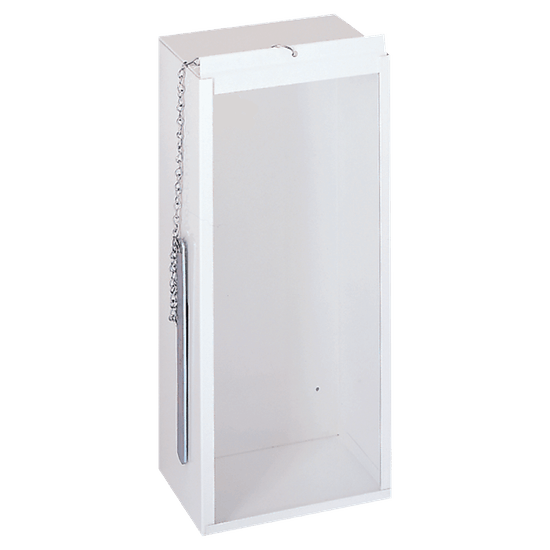

The JL Industries Economyline 5013N20W is a cost-effective surface-mounted steel fire extinguisher cabinet for a 5 lb extinguisher, made in the USA. The white powder-coated steel tub bolts to the wall face (no recess), with a sliding clear acrylic front, retainer clip, and a breaker bar and chain. It is a clean way to protect an extinguisher from tampering and damage in offices, shops, and light commercial spaces.
Specifications
| Model | Economyline 5013N20W |
| Mounting | Surface-mount |
| Fits extinguisher | 2.5 to 5 lb |
| Tub interior (W×H×D) | 8-1/8 in × 18 in × 5-1/2 in |
| Material / finish | Cold-rolled steel, white powder coat |
| Front | Sliding clear acrylic, retainer clip, breaker bar and chain |
| Fire rating | Non-rated |
| Weight | 11 lb |
| Country of Origin | USA |
Extinguisher compatibility
Sized for 2.5 to 5 lb portable extinguishers. A 5 lb dry-chemical cylinder fits this cabinet's compact tub; a 10 lb or larger unit needs a cabinet rated for that size. Confirm the cylinder diameter on your extinguisher's cut sheet against the tub dimensions above. See our Fire Extinguisher Cabinet Selection Guide for the full fit matrix.
Placement and mounting height follow the NFPA 10 requirements.
Frequently Asked Questions
Will a 5 lb fire extinguisher fit this cabinet?
Yes, this cabinet is sized for a 5 lb extinguisher. Fit is governed by the extinguisher's cylinder diameter versus the cabinet's interior depth, so confirm the cylinder dimensions on your extinguisher's cut sheet against the cabinet dimensions listed above.
Is this cabinet fire-rated?
No, this is a standard (non-rated) cabinet, which is fine in a non-fire-rated wall or for surface mounting. To recess a cabinet into a fire-rated wall, choose a fire-rated (FX2) model.
How does this cabinet mount?
It surface-mounts to the wall face, so it needs only blocking and no wall cavity. It suits masonry, thin walls, and back-of-house areas.
Is it made in the USA?
Yes. JL Industries / Activar manufactures these cabinets in the United States.
