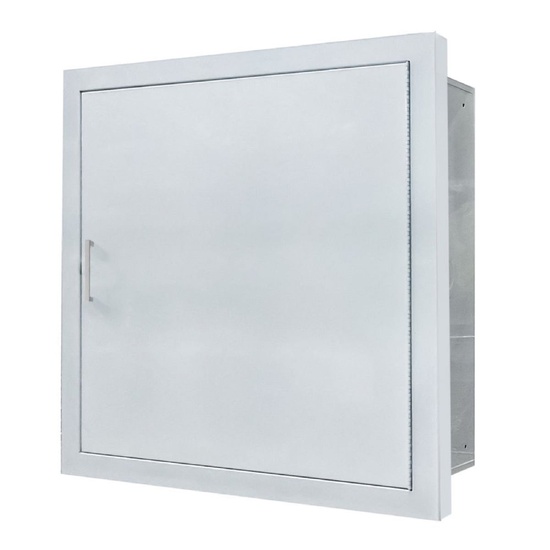

JL Industries Crownline Steel Dual Fire Department Valve and Extinguisher Cabinet 8716S21

The JL Industries Crownline 8716S21 is a semi-recessed steel cabinet that houses a fire department valve side by side with a portable extinguisher, or two fire department valves, made in the USA. The tub recesses into the wall with a 1-1/4 in square trim, keeping the station within the ADA 4 in projection limit. The solid steel door has a pull handle, roller catch, and a continuous hinge that opens 180 degrees. Dual knockouts for 1-1/2 in and 2-1/2 in pipe sit centered on each side of the tub.

Specifications

Model	Crownline 8716S21
Holds	Fire department valve + portable extinguisher, or two valves
Mounting	Semi-recessed, 1-1/4 in square trim
Tub interior (W×H×D)	26 in × 26 in × 8 in
Trim, outside (W×H)	29-3/8 in × 29-3/8 in
Rough wall opening (W×H×D)	27 in × 27 in × 6-7/8 in
Piping knockouts	1-1/2 in and 2-1/2 in, one centered each side of tub
Material / finish	Cold-rolled steel, white powder coat
Door	Solid steel, pull handle, 180° continuous hinge
ADA projection	1-1/4 in (4 in or less)
Weight	41 lb
Country of Origin	USA

What fits

The manufacturer rates the dual bay for a fire department valve plus a 2.5 to 10 lb dry-chemical extinguisher, or two fire department valves. Standpipe hose connections and their locations are governed by NFPA 14 and the local fire code; confirm valve placement with your fire-protection engineer or AHJ. Browse all fire hose and valve cabinets to match material and configuration.

Documents and downloads

For specification and installation: the manufacturer's Crownline steel series submittal (PDF). Need a project-specific submittal filled out? Send us the project details with a quote request.
