JL Industries Crownline Aluminum Fire Department Valve and Extinguisher Cabinet 8027F10

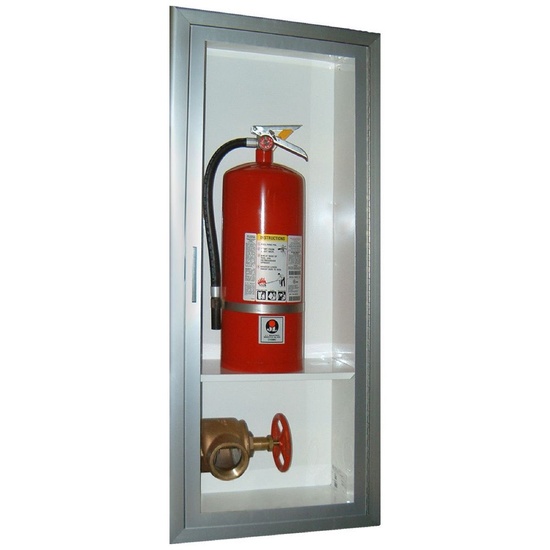

The JL Industries Crownline 8027F10 is a semi-recessed aluminum combination cabinet that houses a fire department valve below a portable extinguisher in one vertical enclosure, made in the USA. The clear satin anodized aluminum construction resists corrosion, and the full-view clear acrylic door shows both the valve and the extinguisher at a glance. The tub recesses into the wall with a 2-1/2 in rolled trim, keeping the station within the ADA 4 in projection limit. Dual knockouts for 1-1/2 in and 2-1/2 in pipe sit on each side of the tub.

Specifications

Model	Crownline 8027F10
Holds	Fire department valve + portable extinguisher
Mounting	Semi-recessed, 2-1/2 in rolled trim
Tub interior (W×H×D)	16 in × 40 in × 9 in
Trim, outside (W×H)	19-3/8 in × 43-3/8 in
Rough wall opening (W×H×D)	17 in × 41 in × 6-5/8 in
Piping knockouts	1-1/2 in and 2-1/2 in, each side of tub
Material / finish	Aluminum, clear satin anodized
Door	Full-view clear acrylic glazing, pull handle, 180° continuous hinge
Wall projection (ADA limit 4 in)	2-1/2 in (4 in or less)
Country of Origin	USA

What fits

The manufacturer rates the extinguisher bay for 5 to 10 lb dry-chemical, cartridge, and comparable clean-agent units above the fire department valve. Standpipe hose connections and their locations are governed by NFPA 14 and the local fire code; confirm valve placement with your fire-protection engineer or AHJ. Browse all fire hose and valve cabinets to match material and configuration.

Documents and downloads

For specification and installation: the manufacturer's Crownline aluminum series submittal (PDF), valve and hose cabinet installation guide (PDF), Crownline 3-part specification (Word), Crownline aluminum Revit model (ZIP), aluminum cabinet health product declaration (PDF), cabinet maintenance guide (PDF). Need a project-specific submittal filled out? Send us the project details with a quote request.
