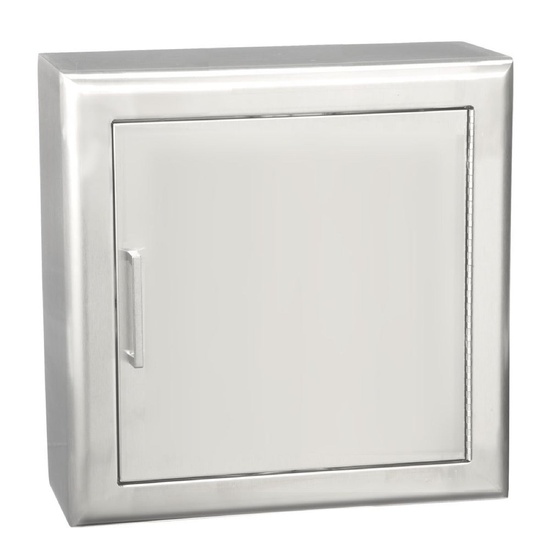

JL Industries Crownline Stainless Steel Surface Mount Fire Department Valve Cabinet 8439S21

The JL Industries Crownline 8439S21 is a surface-mounted stainless steel cabinet for a single fire department valve on a standpipe system, made in the USA. The #4 brushed stainless construction suits premium lobbies, health-care, and food-service interiors where finish and cleanability matter. It bolts to the wall face with no wall cavity required, making it the right choice for stairwells, masonry walls, and retrofit locations. The solid stainless door has a pull handle, roller catch, and a continuous hinge that opens 180 degrees.

Specifications

Model	Crownline 8439S21
Holds	Fire department valve
Mounting	Surface-mount, rolled edge
Tub interior (W×H×D)	18 in × 18 in × 10 in
Overall (W×H×D)	21-1/8 in × 21-3/16 in × 10-1/2 in
Piping openings	Field-cut during installation (surface-mount cabinets are not pre-punched)
Material / finish	#4 brushed stainless steel
Door	Solid stainless, pull handle, 180° continuous hinge
Wall projection (ADA limit 4 in)	Surface-mount, projects more than 4 in
Country of Origin	USA

What fits

The deep 10 in tub houses a standard fire department valve with room to operate the handwheel. Standpipe hose connections and their locations are governed by NFPA 14 and the local fire code; confirm valve placement with your fire-protection engineer or AHJ. Browse all fire hose and valve cabinets to match material and configuration.

Documents and downloads

For specification and installation: the manufacturer's Crownline stainless series submittal (PDF), valve and hose cabinet installation guide (PDF), Crownline 3-part specification (Word), Crownline stainless steel Revit model (ZIP), Crownline steel and stainless steel health product declaration (PDF), cabinet maintenance guide (PDF). Need a project-specific submittal filled out? Send us the project details with a quote request.
