Cato Warrior Plastic Outdoor Fire Extinguisher Cabinet 10 lb Red 95151

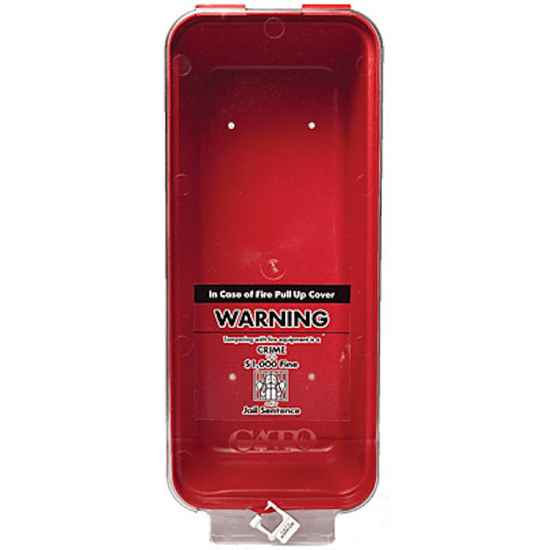

The Cato Warrior 95151 is an all-plastic, surface-mounted fire extinguisher cabinet for a 10 lb extinguisher, built for exterior use such as parking garages and fuel stations. Made in the USA from high-impact polystyrene, it is dent and rust proof. The two-piece cabinet uses a plastic pull-up locking seal instead of a padlock, so there is nothing to corrode outdoors: pull up on the bottom handle to break the seal and remove the cover.

Specifications

Model	Cato Warrior 95151
Mounting	Surface-mount, exterior-rated
Fits extinguisher	2.5 to 10 lb
Tub interior (W×H×D)	9 in × 23 in × 7 in
Overall (W×H×D)	9-1/4 in × 24-1/2 in × 7-1/4 in
Material	High-impact polystyrene, red body with clear cover
Opening	Two-piece pull-up seal (no padlock)
Weight	6 lb
Country of Origin	USA

Extinguisher compatibility

Sized for 2.5 to 10 lb portable extinguishers. The deep 7 in tub clears a standard 10 lb dry-chemical unit with room to spare; a 20 lb unit needs a larger cabinet. Confirm the cylinder diameter on your extinguisher's cut sheet against the tub dimensions above. See our Fire Extinguisher Cabinet Selection Guide for the full fit matrix.

Outdoor and parking-garage placement follows the NFPA 10 requirements.

Documents and downloads

For specification and installation: the manufacturer's Warrior series submittal (PDF). Need a project-specific submittal filled out? Send us the project details with a quote request.
