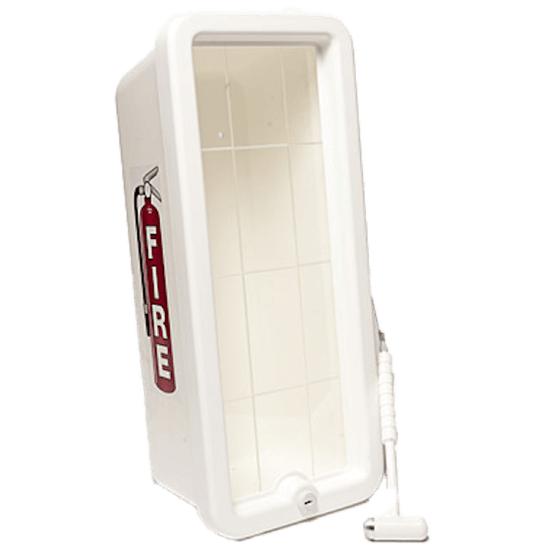

Cato Chief Plastic Fire Extinguisher Cabinet 10 lb White 11001H

The Cato Chief 11001-H is an all-plastic, surface-mounted fire extinguisher cabinet for a 10 lb extinguisher, made in the USA. Injection-molded high-impact polystyrene with UV inhibitors makes it a dent-proof and rust-proof alternative to a steel cabinet at a lower cost. The scored clear acrylic front panel breaks cleanly with the included aluminum-tipped hammer (tethered on a stainless cable) for emergency access, and a hexagonal security lock with two keys opens the cabinet for service. UV-resistant FIRE and Break Panel decals are included, and this cabinet ships fully assembled.

Specifications

Model	Cato Chief 11001-H (individually packaged)
Mounting	Surface-mount
Fits extinguisher	2.5 to 10 lb
Tub interior (W×H×D)	6-3/4 in × 20-1/2 in × 6 in
Overall (W×H×D)	9-1/4 in × 23-1/4 in × 7-1/4 in
Material	High-impact polystyrene, white body with clear scored acrylic panel
Access	Break hammer on stainless cable + hexagonal lock with 2 keys
Weight	4.5 lb
Country of Origin	USA

Extinguisher compatibility

Sized for 2.5 to 10 lb portable extinguishers (the manufacturer also rates comparable cartridge units to 11 lb). Fit is set by the extinguisher's cylinder diameter against this cabinet's 6 in interior (tub) depth, not by weight. Confirm the cylinder diameter on your extinguisher's cut sheet against the tub dimensions above. See our Fire Extinguisher Cabinet Selection Guide for the full fit matrix.

Placement and mounting height follow the NFPA 10 requirements.
