JL Industries Economyline Steel Surface Mount Fire Extinguisher Cabinet 10 lb Gray 5113N20

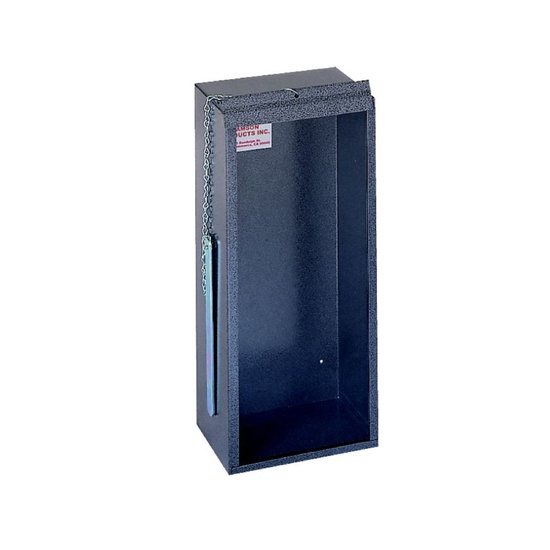

The JL Industries Economyline 5113N20 is a cost-effective surface-mounted steel fire extinguisher cabinet for a 10 lb extinguisher, made in the USA. The gray hammertone powder-coated steel tub bolts to the wall face, with a sliding clear acrylic front, retainer clip, and a breaker bar and chain. It suits warehouses, shops, and back-of-house areas where a recessed cabinet is not practical.

Specifications

Model	Economyline 5113N20
Mounting	Surface-mount
Fits extinguisher	2.5 to 10 lb
Tub interior (W×H×D)	9-1/8 in × 24 in × 5-1/2 in
Material / finish	Cold-rolled steel, gray hammertone powder coat
Front	Sliding clear acrylic, retainer clip, breaker bar and chain
Fire rating	Non-rated
Weight	16 lb
Country of Origin	USA

Extinguisher compatibility

Sized for 2.5 to 10 lb portable extinguishers. Fit is set by the extinguisher's cylinder diameter against this cabinet's 5-1/2 in interior (tub) depth, not by weight — a standard 10 lb dry-chemical unit fits, while a wide-body "short" 10 lb or a 20 lb unit is too deep and needs a larger cabinet. Confirm the cylinder diameter on your extinguisher's cut sheet against the tub depth above. See our Fire Extinguisher Cabinet Selection Guide for the full fit matrix.

Placement and mounting height follow the NFPA 10 requirements.
