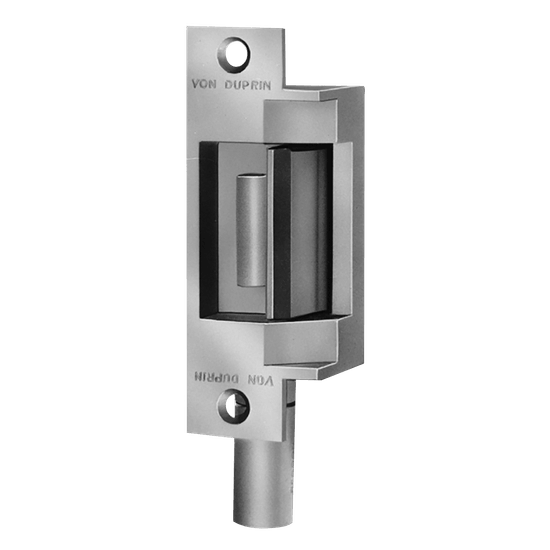

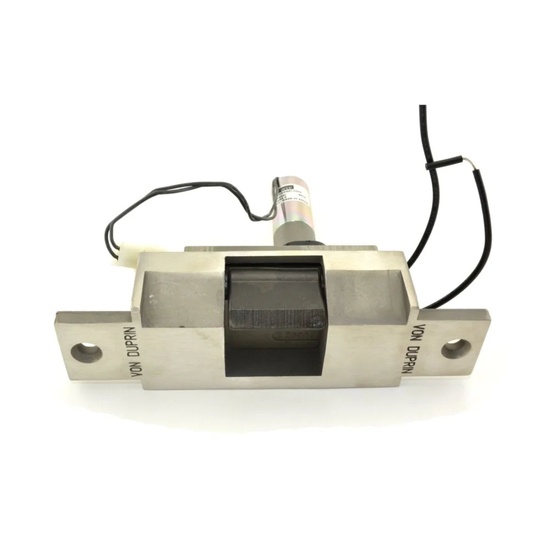

Von Duprin 622332D Fail Secure 24V DC Electric Strike 630 Satin Stainless Steel Finish
Von Duprin$1,279.00
Typically ships in 1-3 business days.
Volume pricing on 10+ units.
US Made Products
Flat Rate Shipping
Business Support
American businesses trust US Made Supply because we do the research.
Call 714-248-6555 or email us.
The Von Duprin 6223 is a 6200 Series electric strike for a pair of doors in a closed-back application, used with mortise locks without a deadbolt or with cylindrical locks. Von Duprin specifies it for doors 1-3/4 in thick with a stile of at least 4-3/4 in, in hollow metal, aluminum or wood frames. This one is 24 V DC, fail secure (Von Duprin FSE): the strike stays locked when power is removed. Von Duprin lists the fail-secure 6223 under UL 10C for fire-rated pairs with an inactive leaf. Its data sheet and its web page give different maximum ratings, so check the listing against your door's rating. A fail-safe strike is never fire rated. Finish: satin stainless steel (630).
| Series | 6000 Series |
|---|---|
| Finish | Satin Stainless Steel |
| Material | Stainless Steel |
| Length | 10.3 |
| Width | 5.7 |
| Height | 2.6 |
| Weight | 2 |
| UPC | 194555706248 |
Electric strikes are graded under ANSI/BHMA A156.31, and Von Duprin's fail-secure 6200 Series strikes carry UL 10C fire listings. Refer to the 6200 Series electric strike data sheet for full installation and ordering details.
The Von Duprin 6223 is a 6200 Series electric strike for a pair of doors in a closed-back application, used with mortise locks without a deadbolt or with cylindrical locks. Von Duprin specifies it for doors 1-3/4 in thick with a stile of at least 4-3/4 in, in hollow metal, aluminum or wood frames. This one is 24 V DC, fail secure (Von Duprin FSE): the strike stays locked when power is removed. Von Duprin lists the fail-secure 6223 under UL 10C for fire-rated pairs with an inactive leaf. Its data sheet and its web page give different maximum ratings, so check the listing against your door's rating. A fail-safe strike is never fire rated. Finish: satin stainless steel (630).
| Series | 6000 Series |
|---|---|
| Finish | Satin Stainless Steel |
| Material | Stainless Steel |
| Length | 10.3 |
| Width | 5.7 |
| Height | 2.6 |
| Weight | 2 |
| UPC | 194555706248 |
Electric strikes are graded under ANSI/BHMA A156.31, and Von Duprin's fail-secure 6200 Series strikes carry UL 10C fire listings. Refer to the 6200 Series electric strike data sheet for full installation and ordering details.
