Von Duprin 98EO Rim Exit Device Smooth Case Exit Only

The Von Duprin 98EO is a 98 series rim exit device, the latch that mounts on the face of the door and catches a strike on the frame, for single doors and pairs with a mullion. The 98 has a smooth mechanism case (the 99 is the grooved case version), and only the 98 comes in 630 satin stainless steel. This build is exit only (EO): it has no outside trim, so the door opens from the push side only. See all our rim exit devices.

Specifications

Model	98EO, 3 ft or 4 ft device, in the finish you choose. Selected above
Function	Exit only, ANSI function 01. Von Duprin's catalog notes the device ships field selectable between exit only, dummy trim and night latch functions. Any outside trim is a separate part
Dogging	Von Duprin's standard hex key dogging, which holds the latch retracted for push-pull traffic
Device length	3 ft fits doors 2 ft 4 in to 3 ft wide. 4 ft fits doors 2 ft 10 in to 4 ft wide
Latch bolt	Deadlocking, 3/4 in throw
Strike	Von Duprin 299 strike ships standard, dull black
Projection	3-13/16 in with the push pad at rest, 3-1/16 in pushed
Case sizes	Center case 8 x 2-3/4 x 2-3/8 in. Mechanism case 2-1/4 x 2-1/4 in
Centerline	39-13/16 in above the finished floor (39-11/16 in with a mullion)

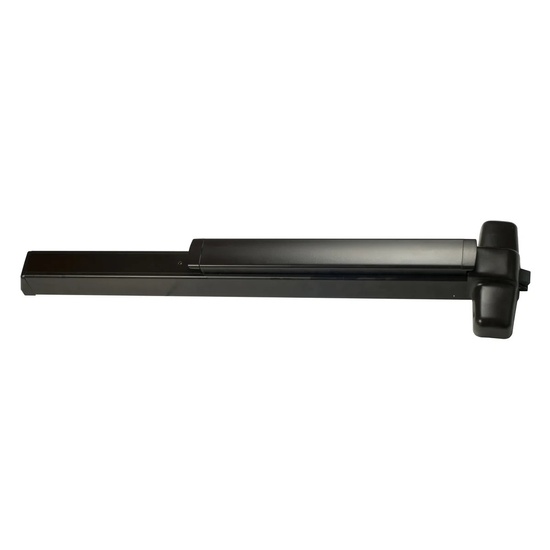

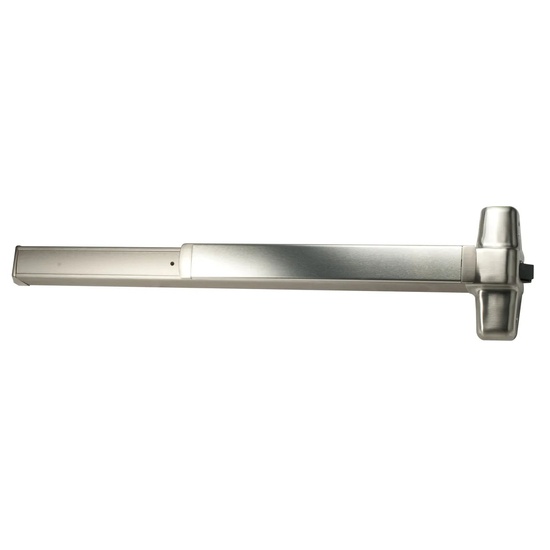

Finishes	626 satin chrome (US26D), 628 anodized aluminum (US28), 710 Duranodic dark bronze (313), black, BHMA 711 (315), 630 satin stainless steel (US32D), 643E aged bronze. Selected above
Door stile	Von Duprin's stile chart lists a minimum stile of 4-3/8 to 4-1/2 in on a single door with the 299 strike, depending on the trim, and 4-3/4 to 4-7/8 in on a pair with a 4954 mullion. Check the chart for your trim and strike
Doors	On a single door the device covers the 86 or 161 lock cutouts of a stock hollow metal door. Screw pack for 1-3/4 and 2-1/4 in thick metal or wood doors, sex bolts optional
Warranty	Allegion's commercial warranty: 10 years mechanical and 3 years electro-mechanical for 98/99 Series devices, from shipment from the factory

What else the opening needs

Outside trim if the door must open from the outside. This exit only build has none, and Von Duprin's trim is ordered as its own part. A mullion on a pair of doors, such as a Von Duprin 4954 or KR4954 steel mullion prepared for 299 strikes.

Listings

Von Duprin lists the 98/99 rim device as panic exit hardware under UL 305 and certifies it to ANSI/BHMA A156.3 Grade 1. It is not fire exit hardware and must not go on a fire-rated door. Von Duprin's fire exit version is the separate 98EO-F, which has no mechanical dogging. Our guides cover where the IBC requires panic hardware, UL 305 and ANSI/BHMA A156.3.

Documents

Von Duprin 98/99 Series product page
Von Duprin 98/99 Series catalog
Von Duprin 98/99 EO and DT rim device template
