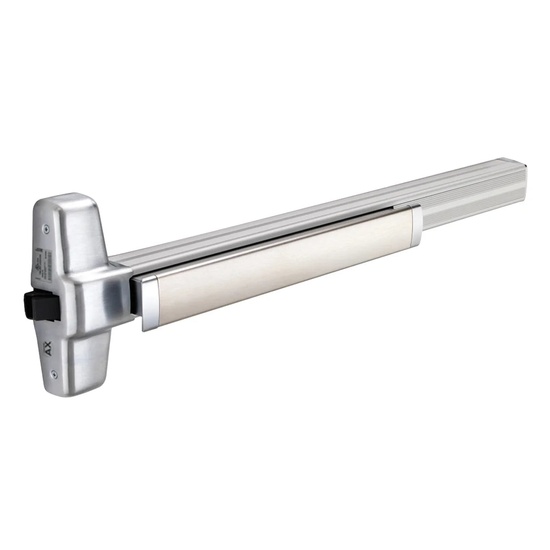

Von Duprin QEL99EO Rim Exit Device with Quiet Electric Latch Retraction

The Von Duprin QEL99EO is a 99 series rim exit device, the latch that mounts on the face of the door and catches a strike on the frame, for single doors and pairs with a mullion. The 99 has a grooved mechanism case (the 98 is the smooth case version). QEL is Von Duprin's quiet electric latch retraction: on a signal from an access control system, a button or an automatic operator, the device retracts its latch bolt and pushpad, and it can hold them retracted for free entry. Mechanical egress always works. This build is exit only (EO), with no outside trim. See all our rim exit devices.

Specifications

Model	QEL99EO, 3 ft or 4 ft device, in the finish you choose. Selected above
Function	Exit only, ANSI function 01, with electric latch retraction
Power	24 V DC. 1.0 A inrush for 0.5 seconds, then 0.14 A holding. UL approved for Class II circuits
Power supply	Von Duprin names a PS902 or PS914 with the 2RS, 4RL or 4R board as the minimum. Not included
Dogging	None mechanical: the electric latch retraction holds the latch back. Von Duprin's version with hex key dogging as well is ordered as HD-QEL
Device length	3 ft fits doors 29-1/4 in to 3 ft wide. 4 ft fits doors 35-1/4 in to 4 ft wide. These are Von Duprin's QEL minimums, wider than the mechanical device's
Latch bolt	Deadlocking, 3/4 in throw
Strike	Von Duprin 299 strike ships standard, dull black
Projection	3-13/16 in with the push pad at rest, 3-1/16 in pushed
Case sizes	Center case 8 x 2-3/4 x 2-3/8 in. Mechanism case 2-1/4 x 2-1/4 in
Centerline	39-13/16 in above the finished floor (39-11/16 in with a mullion)
Finishes	626 satin chrome (US26D), 628 anodized aluminum (US28), 710 Duranodic dark bronze (313), black, BHMA 711 (315). Selected above
Door stile	Von Duprin's stile chart lists a minimum stile of 4-3/8 to 4-1/2 in on a single door with the 299 strike, depending on the trim, and 4-3/4 to 4-7/8 in on a pair with a 4954 mullion. Check the chart for your trim and strike
Doors	On a single door the device covers the 86 or 161 lock cutouts of a stock hollow metal door. Screw pack for 1-3/4 and 2-1/4 in thick metal or wood doors, sex bolts optional
Warranty	Allegion's commercial warranty: 10 years mechanical and 3 years electro-mechanical for 98/99 Series devices, from shipment from the factory

What else the opening needs

A power supply, as above. A power transfer from the door to the frame, and the control that signals the device (card reader, push button or operator): Von Duprin does not include either. A mullion on a pair of doors, such as a Von Duprin 4954 or KR4954 steel mullion prepared for 299 strikes.

Listings

Von Duprin lists the 98/99 rim device as panic exit hardware under UL 305 and certifies it to ANSI/BHMA A156.3 Grade 1. It is not fire exit hardware and must not go on a fire-rated door. Von Duprin's fire exit version is the separate QEL99EO-F. Our guides cover where the IBC requires panic hardware, UL 305 and ANSI/BHMA A156.3.
