These are JL Industries entrance grates, grilles and mats. They scrape dirt and water off shoes at the door and let it fall between the rails below the walking surface. Pick the series, then send the size and depth of the opening or your plans. We reply with pricing, lead time and the submittal.
Each one is made to order in the size of your entrance, so it is priced per project for its series, size, frame and tread. Send the series with the opening size and depth. Plans work too.
Compare series
| Photo | Series | Type | Rails | Depth | Wheel load | Treads | Install | Warranty |
|---|---|---|---|---|---|---|---|---|

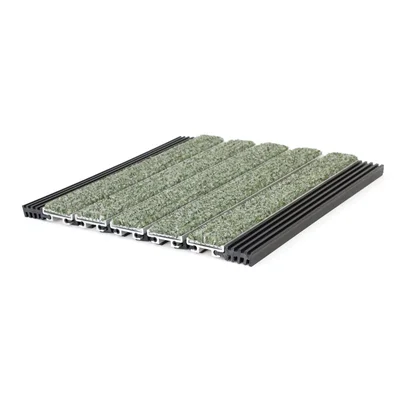

 | EG400 Roll-up grateSelected Heavy foot traffic and carts, recessed or added to an existing floor | Roll-up grate | Extruded aluminum, mill or anodized | 1/2 in | 750 lb rolling wheel load, heavy carts | Premium carpet, Tuff Tread, serrated vinyl, serrated aluminum or alternating | Recessed angle or threshold frame, or a surface-mount aluminum frame on an existing floor | 2 years |

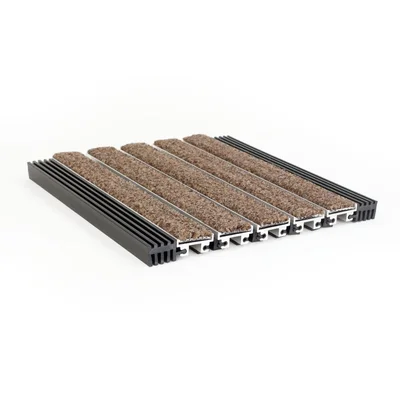

 | EG600 Heavy roll-up grate The heaviest carts, in a recess | Roll-up grate, recessed | Extruded aluminum, mill or anodized | 3/4 in | 1,000 lb rolling wheel load, heavy carts | Premium carpet, Tuff Tread, serrated vinyl, serrated aluminum or alternating | Recessed, in a cast-in-place or angle frame | 2 years |

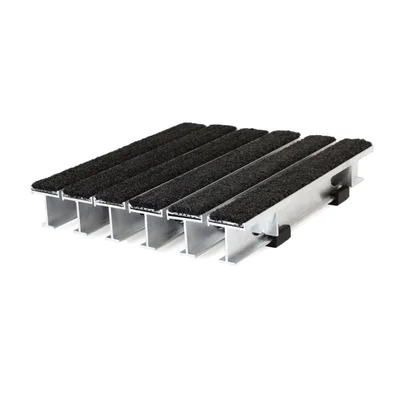

 | EG900 Rigid grate A deep recess that holds snow, dirt and water | Rigid grate | Extruded aluminum, mill or anodized | 1-3/4 in | 400 lb rolling wheel load, light carts | Premium carpet, Tuff Tread, serrated vinyl, serrated aluminum or alternating | Recessed, in an angle, block or cast-in-place frame | 2 years |

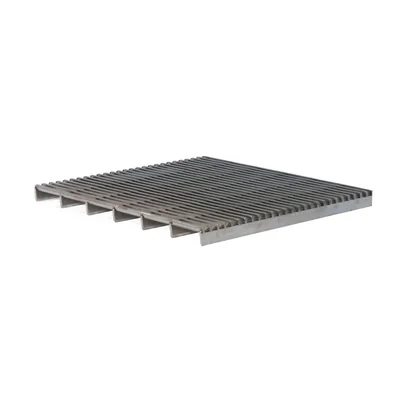

 | EG500 Stainless grille All stainless steel, for a low-maintenance look | Stainless steel grille | Type 304 stainless steel, #4 satin | 3/8 in (EG503), 5/8 in (EG508) or 1-1/8 in (EG509) | 1,000 lb rolling wheel load, heavy carts | All stainless, no tread insert | Recessed, in a stainless frame matched to the profile | 5 years |

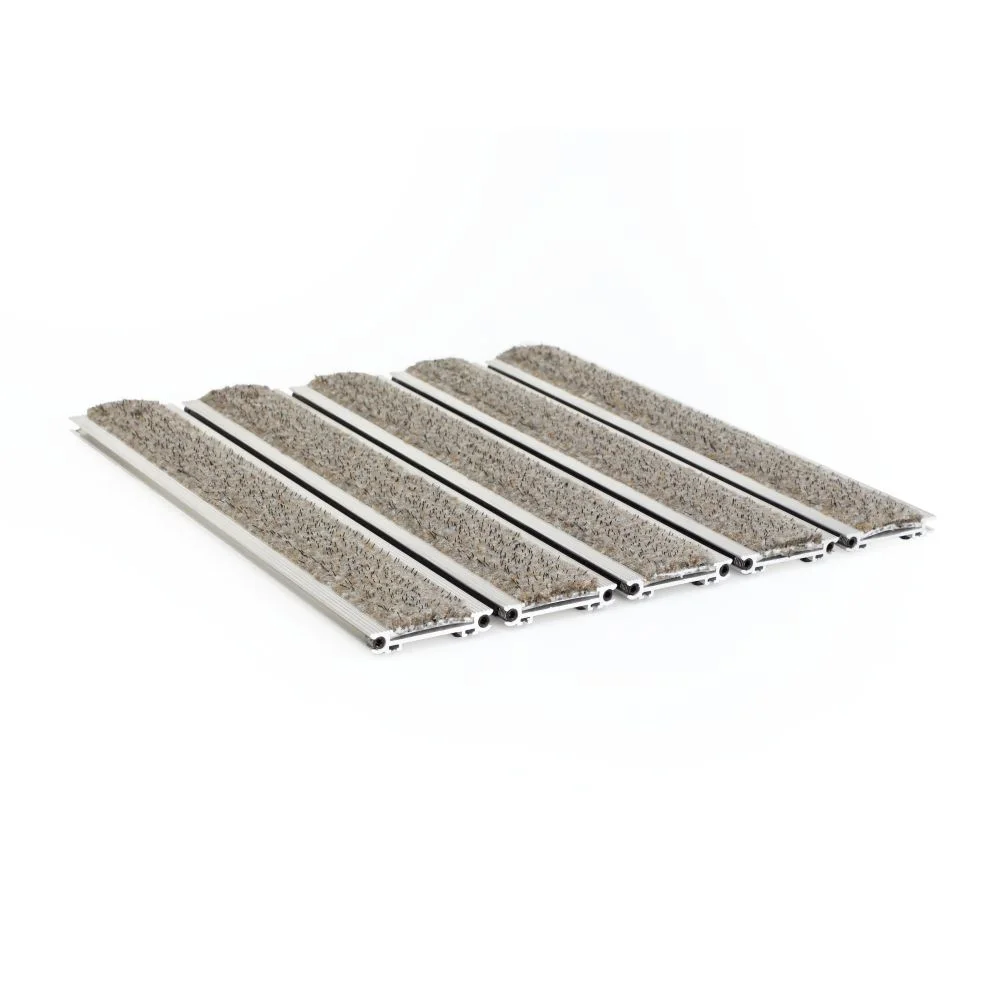

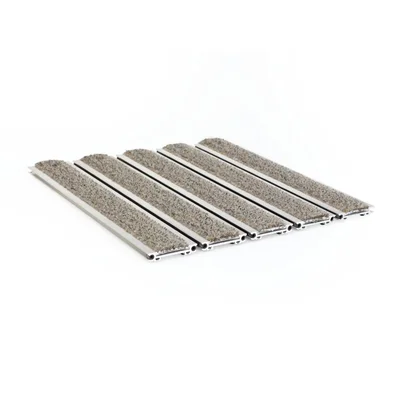

 | EM700 Roll-up mat A quieter, low-profile mat, recessed or on the floor | Roll-up mat with flexible hinges, quieter than aluminum hinges | Extruded aluminum, mill or anodized | 3/8 or 7/16 in, by tread | 350 lb rolling wheel load, luggage and light carts | Premium carpet, Tuff Tread, serrated vinyl, serrated aluminum or alternating | Recessed in an angle, cast-in-place or threshold frame. Surface-mount in an aluminum, vinyl or vinyl tray frame | 2 years |

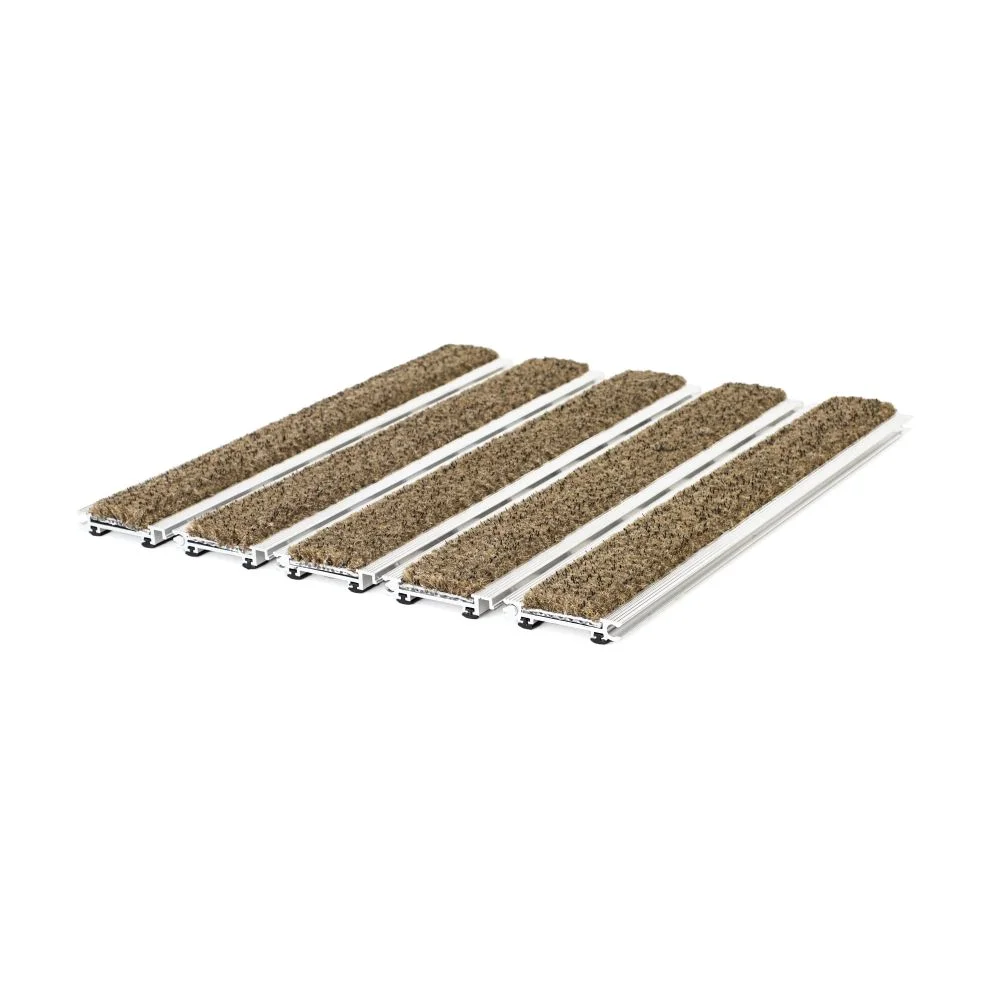

 | EM800 Mat, aluminum hinges A low-profile mat with aluminum hinges | Roll-up mat with aluminum hinges | Extruded aluminum, mill or anodized | 3/8 or 7/16 in, by tread | 350 lb rolling wheel load, luggage and light carts | Premium carpet, Tuff Tread, serrated vinyl, serrated aluminum or alternating | Recessed in an angle, cast-in-place or threshold frame. Surface-mount in an aluminum, vinyl or vinyl tray frame | 2 years |
Heavy foot traffic and carts, recessed or added to an existing floor
Type
Roll-up grate
Rails
Extruded aluminum, mill or anodized
Depth
1/2 in
Wheel load
750 lb rolling wheel load, heavy carts
Treads
Premium carpet, Tuff Tread, serrated vinyl, serrated aluminum or alternating
Install
Recessed angle or threshold frame, or a surface-mount aluminum frame on an existing floor
Warranty
2 years
The heaviest carts, in a recess
Type
Roll-up grate, recessed
Rails
Extruded aluminum, mill or anodized
Depth
3/4 in
Wheel load
1,000 lb rolling wheel load, heavy carts
Treads
Premium carpet, Tuff Tread, serrated vinyl, serrated aluminum or alternating
Install
Recessed, in a cast-in-place or angle frame
Warranty
2 years
A deep recess that holds snow, dirt and water
Type
Rigid grate
Rails
Extruded aluminum, mill or anodized
Depth
1-3/4 in
Wheel load
400 lb rolling wheel load, light carts
Treads
Premium carpet, Tuff Tread, serrated vinyl, serrated aluminum or alternating
Install
Recessed, in an angle, block or cast-in-place frame
Warranty
2 years
All stainless steel, for a low-maintenance look
Type
Stainless steel grille
Rails
Type 304 stainless steel, #4 satin
Depth
3/8 in (EG503), 5/8 in (EG508) or 1-1/8 in (EG509)
Wheel load
1,000 lb rolling wheel load, heavy carts
Treads
All stainless, no tread insert
Install
Recessed, in a stainless frame matched to the profile
Warranty
5 years
A quieter, low-profile mat, recessed or on the floor
Type
Roll-up mat with flexible hinges, quieter than aluminum hinges
Rails
Extruded aluminum, mill or anodized
Depth
3/8 or 7/16 in, by tread
Wheel load
350 lb rolling wheel load, luggage and light carts
Treads
Premium carpet, Tuff Tread, serrated vinyl, serrated aluminum or alternating
Install
Recessed in an angle, cast-in-place or threshold frame. Surface-mount in an aluminum, vinyl or vinyl tray frame
Warranty
2 years
A low-profile mat with aluminum hinges
Type
Roll-up mat with aluminum hinges
Rails
Extruded aluminum, mill or anodized
Depth
3/8 or 7/16 in, by tread
Wheel load
350 lb rolling wheel load, luggage and light carts
Treads
Premium carpet, Tuff Tread, serrated vinyl, serrated aluminum or alternating
Install
Recessed in an angle, cast-in-place or threshold frame. Surface-mount in an aluminum, vinyl or vinyl tray frame
Warranty
2 years
Related Documents & Downloads
Entrance mats, grates and grilles catalog (PDF)Guide specification, grates 400, 600 and 900 (DOCX)Guide specification, grille 500 (DOCX)Guide specification, mats 700 and 800 (DOCX)Grille 500 submittal (PDF)400 frame details (PDF)600 frame details (PDF)900 frame details (PDF)500 frame details (PDF)700 frame details (PDF)800 frame details (PDF)Installation and maintenance, grates 400 and 600 (PDF)Installation and maintenance, grate 900 (PDF)Installation and maintenance, grille 500 (PDF)Installation and maintenance, mats 700 and 800 (PDF)Tread colors and styles (PDF)ADA information (PDF)Cross-reference to other brands (PDF)Warranty (PDF)Frequently Asked Questions
What size do I send?
The opening width across the entrance and its length in the direction of travel, plus the recess depth if the floor already has one. The treads run across the direction of travel. The shop drawing sets the outside frame size and depth, and the final recess depth is checked on site.
Which one takes carts?
Go by the manufacturer's rolling wheel load. The 700 and 800 mats are rated 350 lb, for luggage and light carts. The 900 grate is rated 400 lb, for light carts. The 400 grate is rated 750 lb and the 500 grille and 600 grate 1,000 lb, for heavy carts.
Do I need a recess in the floor?
Not for every series. The 400 grate and the 700 and 800 mats have a surface-mount aluminum frame that anchors to an existing floor, and the mats also come in surface-mount vinyl frames. The 600 and 900 grates and the 500 grille go in a recess.
Which tread for a wet or outdoor entrance?
Tuff Tread is waterproof and stands up to weather, for interior or exterior entrances. Serrated vinyl suits wet entrances, but the manufacturer does not recommend serrated vinyl, serrated aluminum or the stainless grille outdoors in snowy climates. Premium carpet is the most absorbent and is for interiors. An alternating tread mixes two types to scrape and absorb.
Is it slip resistant?
The manufacturer publishes a static coefficient of friction for three of its treads. Serrated vinyl is .88 dry and .73 wet. Tuff Tread is .78 dry and .71 wet. Premium carpet is .85 dry and .51 wet. These are the manufacturer's figures, not a slip-resistance rating for your project.
Can you match a grate from another brand?
The manufacturer publishes a cross-reference from these series to Babcock, Construction Specialties, Nystrom, Pawling and Reese Enterprises entrance grates and mats, for quoting when another brand is specified. It does not call them identical, so send the specified model and we confirm the match.
How is it cleaned?
The manufacturer recommends lifting the grate or mat sections out each week to clean the recess, and vacuuming carpet treads with a rotating brush. Tuff Tread can also be hosed off. The stainless grille is vacuumed in place, and the manufacturer advises against lifting it except when necessary. Damaged treads can be replaced.
Is it made in the USA?
We do not have origin confirmed series by series yet. The manufacturer's US-made program guide lists its aluminum and stainless steel entrance mats and gratings under Farmington, Minnesota. Its environmental sheet for the 500 grille names Farmington as the manufacturing location. Ask before you rely on origin for a Buy American requirement.
What is the warranty?
Five years on the 500 stainless grille and two years on the 400, 600, 700, 800 and 900 series, from shipment, against defects in materials, factory finishes and workmanship. It does not cover installation or removal costs.
Which spec section is it?
12 48 13 Entrance Floor Mats and Frames, which the federal master specification uses for roll-up mats, floor grids and their frames. Some project manuals put rigid grilles in 12 48 16 Entrance Floor Grilles instead. The manufacturer's own guide specifications use 12 48 13 for the mats, 12 48 16 for the grille and 12 48 19 for the grates.
How do I send plans?
Tick "I have plans or specs to share" on the quote form. We email you, and you reply with the drawings.
Who makes them?
JL Industries, one of the Activar Construction Products Group brands. We order them through our Activar account.
What do the 800 series codes mean?
The mat code names the tread: EM800 premium carpet, EM801 vinyl, EM802 serrated aluminum, EM805 Tuff Tread and EM810 alternating, with two treads in an alternating pattern. The frame has its own code. EFRA8 is a recessed angle frame, EFRC8 a recessed cast-in-place frame and EFRT8 a recessed threshold frame. EFSA8, EFSV8 and EFST8 surface-mount the mat in an aluminum frame, a vinyl frame or a vinyl tray.
