Fire Hose Equipment Cabinets and Racks
JL Industries
Priced per project
Lead time comes with your quote.
Series
We usually reply the same business day
US Made Products
Business Support
American businesses trust US Made Supply because we do the research.
Call 714-248-6555 or email us.
A red steel cabinet that stores fire hose and its equipment indoors or out, and a pin rack that holds a ready hose line with its valve and nozzle. Pick the series, then send the quantity and options or your plans. We reply with pricing, lead time and the submittal.
There is no price list for these, so each order is quoted per project. Send the series with the quantity and options. Plans work too.
Compare series
| Photo | Series | Use | Construction | Size | Inside | Hose | Rating | Options |
|---|---|---|---|---|---|---|---|---|

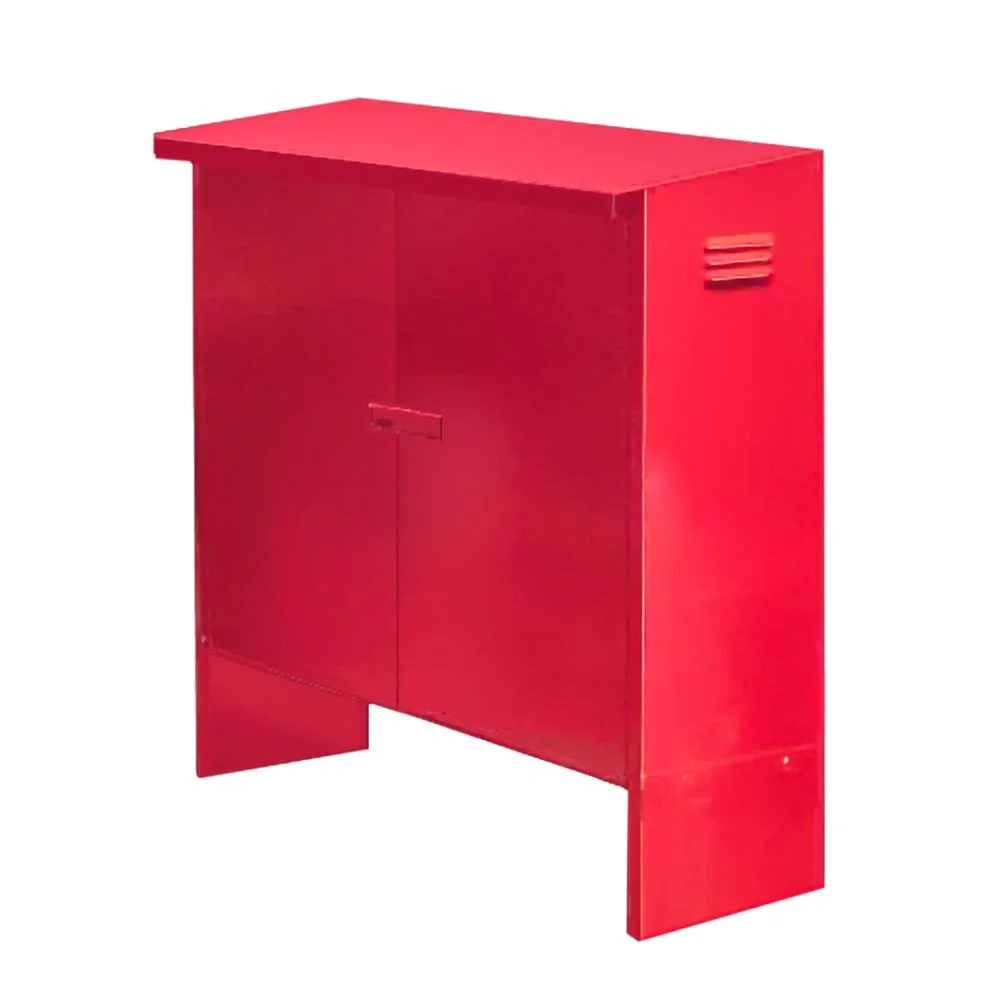

 | HECIG OutdoorSelected Outdoors, in galvanneal steel with an angled top that sheds water | Exterior | 16 ga galvanneal steel, red powder coat | 58 W × 42 H × 18-1/2 D in. 54 in high on the 12 in legs (HECIGL) | A shelf, with louvers on both sides for ventilation | Not specified by the manufacturer | Not specified by the manufacturer | 12, 18 or 24 in legs. Locking chrome handle with top and bottom latching. Fire Hose decals |

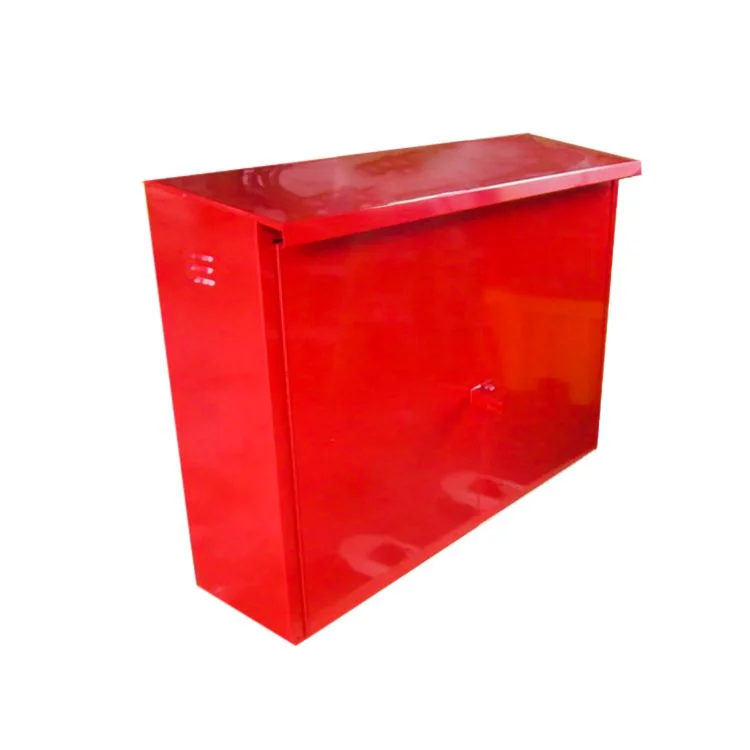

 | HECIR Indoor Indoors, in cold rolled steel | Interior | 16 ga cold rolled steel, red powder coat | 58 W × 42 H × 18-1/2 D in. 54 in high on the 12 in legs (HECIRL) | A shelf, with louvers on both sides for ventilation | Not specified by the manufacturer | Not specified by the manufacturer | 12, 18 or 24 in legs. Locking chrome handle with top and bottom latching. Fire Hose decals |

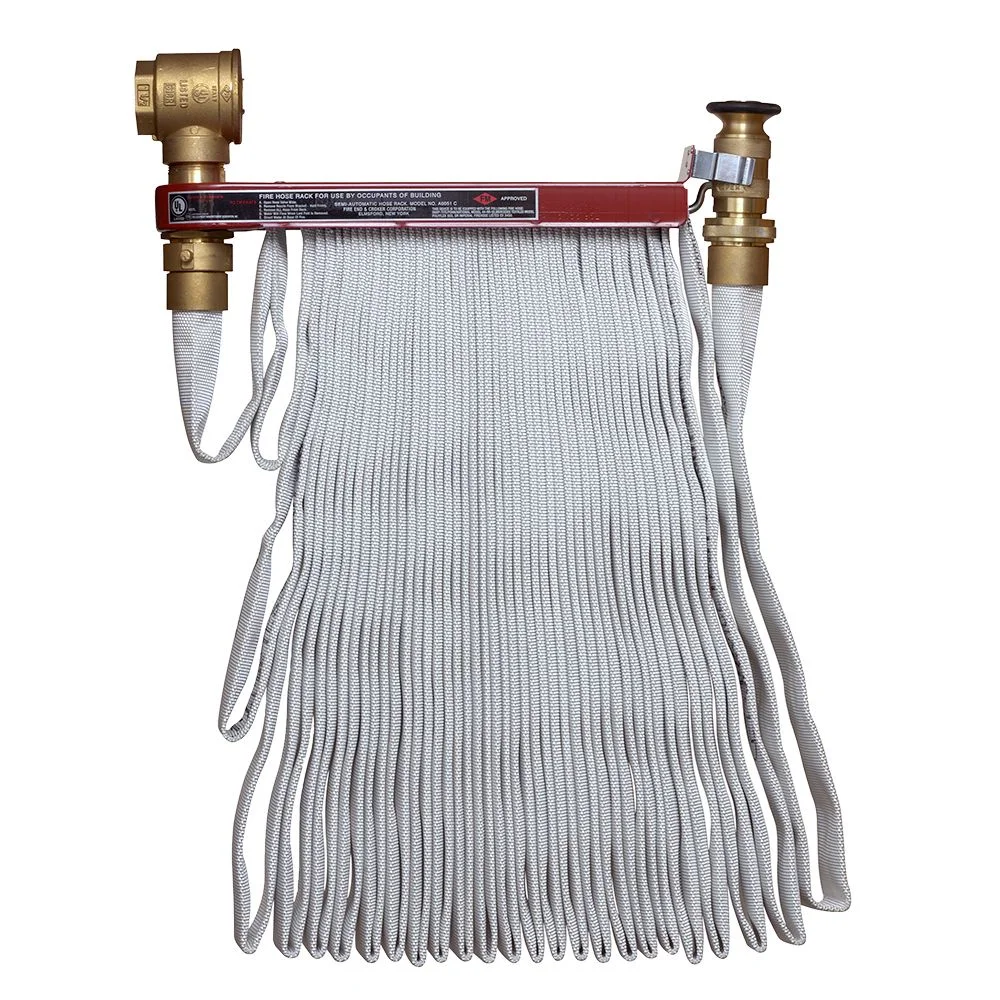

 | HRA Hose rack A ready 1-1/2 in hose line with its valve and nozzle, for one person to use | One-person hose line. Class II service, Class II and III with the 2-1/2 in valve | Red enamel pin rack, cast brass couplings, industrial fog nozzle, angle valve, escutcheon and nipple | Rack 17-7/8 in wide and 4-1/8 in deep. Stored hose 23 to 28 in high | Not a cabinet | 1-1/2 in single jacket polyurethane-lined hose, 50, 75 or 100 ft on a 1-1/2 in valve, or 50 to 125 ft on a 2-1/2 in valve with a reducer | 100 GPM at 65 PSI at the nozzle. Hose FM approved, 500 lb test. Nozzle, valve and rack UL rated | Chrome-plated brass fittings and valve on the 1-1/2 in valve. Hose marked 300 lb test per UL 19 |
Outdoors, in galvanneal steel with an angled top that sheds water
Use
Exterior
Construction
16 ga galvanneal steel, red powder coat
Size
58 W × 42 H × 18-1/2 D in. 54 in high on the 12 in legs (HECIGL)
Inside
A shelf, with louvers on both sides for ventilation
Hose
Not specified by the manufacturer
Rating
Not specified by the manufacturer
Options
12, 18 or 24 in legs. Locking chrome handle with top and bottom latching. Fire Hose decals
Indoors, in cold rolled steel
Use
Interior
Construction
16 ga cold rolled steel, red powder coat
Size
58 W × 42 H × 18-1/2 D in. 54 in high on the 12 in legs (HECIRL)
Inside
A shelf, with louvers on both sides for ventilation
Hose
Not specified by the manufacturer
Rating
Not specified by the manufacturer
Options
12, 18 or 24 in legs. Locking chrome handle with top and bottom latching. Fire Hose decals
A ready 1-1/2 in hose line with its valve and nozzle, for one person to use
Use
One-person hose line. Class II service, Class II and III with the 2-1/2 in valve
Construction
Red enamel pin rack, cast brass couplings, industrial fog nozzle, angle valve, escutcheon and nipple
Size
Rack 17-7/8 in wide and 4-1/8 in deep. Stored hose 23 to 28 in high
Inside
Not a cabinet
Hose
1-1/2 in single jacket polyurethane-lined hose, 50, 75 or 100 ft on a 1-1/2 in valve, or 50 to 125 ft on a 2-1/2 in valve with a reducer
Rating
100 GPM at 65 PSI at the nozzle. Hose FM approved, 500 lb test. Nozzle, valve and rack UL rated
Options
Chrome-plated brass fittings and valve on the 1-1/2 in valve. Hose marked 300 lb test per UL 19
Related Documents & Downloads
Hose equipment cabinet submittal (PDF)Cabinet leg installation (PDF)HRA hose rack submittal (PDF)Cabinet maintenance (PDF)Fire protection catalog (PDF)Cross-reference to other brands (PDF)Warranty (PDF)Frequently Asked Questions
What is the cabinet for?
Storing fire hose and its equipment where you need it. The manufacturer calls it a durable storage cabinet. It has a shelf inside, louvers on both sides for ventilation and two doors with a padlock hasp.
Indoors or outdoors?
Either. The HECIR is cold rolled steel for indoor use and the HECIG is galvanneal steel for outdoor use. Both are finished in red powder coat, and the angled top overhangs the doors to shed water.
How big is it, and does it come on legs?
58 in wide, 42 in high and 18-1/2 in deep. On the 12 in legs (HECIRL or HECIGL) it stands 54 in high, and 18 or 24 in legs are an option. Each leg bolts to the base and has a lip for fastening to the floor if you want it anchored.
Does it lock?
It comes with a hasp for your own padlock. A locking chrome handle with top and bottom latching is an option, and it has to be ordered with the cabinet so the rod latching can be fitted.
Can you match the cabinet I'm replacing?
The manufacturer publishes a cross-reference from these cabinets to Fire End & Croker, Larsen's and Potter Roemer hose equipment cabinets, as a guide rather than exact equivalents. Send the old model number or a photo of its label and we check the size and legs before we quote.
What comes with the HRA hose rack?
The whole assembly: 1-1/2 in single jacket hose, an industrial fog nozzle, cast brass couplings, the red enamel pin rack, an angle valve, an escutcheon and a nipple. The 2-1/2 in valve version adds a reducer. The rack is made for one-person operation.
Which hose length and valve should I pick?
The hose is 1-1/2 in on every model. On a 1-1/2 in valve it comes in 50, 75 or 100 ft, with brass or chrome-plated fittings. On a 2-1/2 in valve with a reducer it comes in 50, 75, 100 or 125 ft. The manufacturer rates the 1-1/2 in valve models for Class II service and the 2-1/2 in models for Class II and III.
Which cabinet holds an HRA rack?
The manufacturer sizes its Crownline 6000 series hose cabinets to these racks. A 50 or 75 ft rack takes a cabinet 24 × 30 in inside, a 100 ft rack 24 × 34-3/4 in and a 125 ft rack 24 × 38-3/4 in. The cabinet is 6 in deep inside for a 1-1/2 in valve and 8 in for a 2-1/2 in valve. It is a separate order, and Crownline hose cabinets are in the same collection as this page. The manufacturer does not call for an HRA inside the HECIR or HECIG.
Is it made in the USA?
The cabinets are. The manufacturer lists its steel fire protection cabinets as built in Bloomington, Minnesota or Commerce, California. Its US-made list does not include hose racks, so we make no origin claim for the HRA. Ask and we confirm it for your project.
What is the warranty?
One year from shipment against defects in materials and workmanship, for the cabinets and the hose racks.
Which spec section is it?
Hose cabinets are usually specified under 10 44 13 Fire Protection Cabinets, though some project manuals put them in the standpipe section, 21 12 00. Hose racks are specified in Division 21 with the standpipe. The manufacturer's catalog files its cabinets under 10 44 00 and its hose racks under 21 12 00.
How do I send plans?
Tick "I have plans or specs to share" on the quote form. We email you, and you reply with the drawings.
