Door Louvers
JL Industries
Priced per project
Lead time comes with your quote.
Door type
Series
We usually reply the same business day
US Made Products
Business Support
American businesses trust US Made Supply because we do the research.
Call 714-248-6555 or email us.
Door louvers let air move through a closed door. Pick the series, then send the door cutout size and the door it goes in, or your plans. We reply with pricing, lead time and the submittal.
Each louver is sized to the door cutout, so we price every order per project for its series, size, material and color. Send the series with the cutout size and door thickness. Plans work too.
Compare series
| Photo | Series | Blade | Material | Free area | Sizes | Door | Rating |
|---|---|---|---|---|---|---|---|

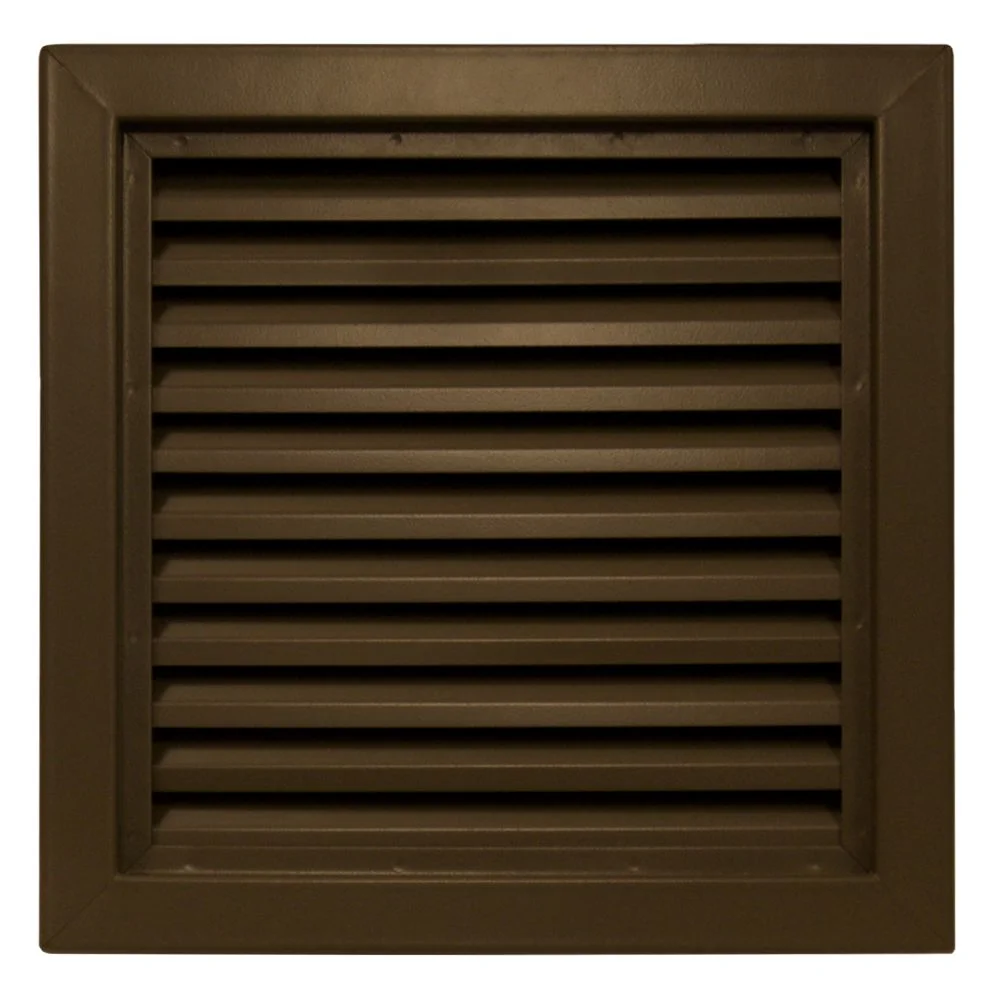

 | 800 Inverted YSelected School and institutional doors, the manufacturer's most popular louver | Inverted Y, 1 in spacing, non-vision | Cold rolled steel, 18 ga frame and 20 ga blades. Stainless, galvanneal or zinc-plated optional | 50% | 6 × 4 to 48 × 80 in, larger in multiple sections | 1-3/8 to 1-3/4 in. The A1 frame fits 1-3/4 in doors only | Not fire-rated |
 | 600 Inverted V The highest free area of the steel louvers | Inverted V, 1/2 in spacing, non-vision | Cold rolled steel, 18 ga frame and 20 ga blades. Stainless, galvanneal or zinc-plated optional | 60% | 6 × 4 to 24 × 80 in, larger in multiple sections | 1-3/8 to 1-3/4 in. The A1 frame fits 1-3/4 in doors only | Not fire-rated |
 | 900 Z blade A Z blade for school and institutional doors | Z, 1 in spacing, non-vision | Cold rolled steel, 18 ga frame and blades. Stainless, galvanneal or zinc-plated optional | 43% | 6 × 4 to 48 × 80 in, larger in multiple sections | 1-3/8 to 1-3/4 in. The A1 frame fits 1-3/4 in doors only | Not fire-rated |
 | 700A Split Y A wood or metal door from 1-3/8 in thick | Two rows of inverted split Y, 1 in spacing, non-vision | Cold rolled steel, 18 ga frame and blades. Stainless, galvanneal or zinc-plated optional | 50% | 6 × 4 to 48 × 80 in, larger in multiple sections | 1-3/8 in and thicker, wood or metal, screwed in from both sides | Not fire-rated |
700TL Transom A transom in a hollow metal frame | Two rows of inverted split Y, 1 in spacing, non-vision | Cold rolled steel, 18 ga frame and blades. Stainless, galvanneal or zinc-plated optional | 50% | 10 × 10 to 36 × 36 in, larger in multiple sections | Mounts flush in a hollow metal transom frame | Not fire-rated | |
 | 1100 Adjustable Airflow you open and close by hand | Z, 1 in spacing, adjusted by hand from the interior face | Cold rolled steel, 18 ga frame and 16 ga blades. Zinc-plated optional | 45% fully open | 8 × 6 to 24 × 36 in | 1-3/8 to 1-3/4 in | Not fire-rated |
 | 1200A Twin adjustable Adjustable airflow that still blocks the view | Two Z sections, one fixed and one adjustable, 1 in spacing | Cold rolled steel, 18 ga frame and blades. Stainless or zinc-plated optional | 43% | 12 × 12 to 24 × 36 in | 1-3/4 in and thicker, screwed in from both sides | Not fire-rated |
 | 1300 Aluminum V Humid rooms, or an all-aluminum louver | Inverted V, 1/2 in spacing, non-vision | .050 aluminum frame and blades | 60% | 6 × 4 to 24 × 80 in, larger in multiple sections | 1-3/8 to 1-3/4 in. The A1 frame fits 1-3/4 in doors only | Not fire-rated |

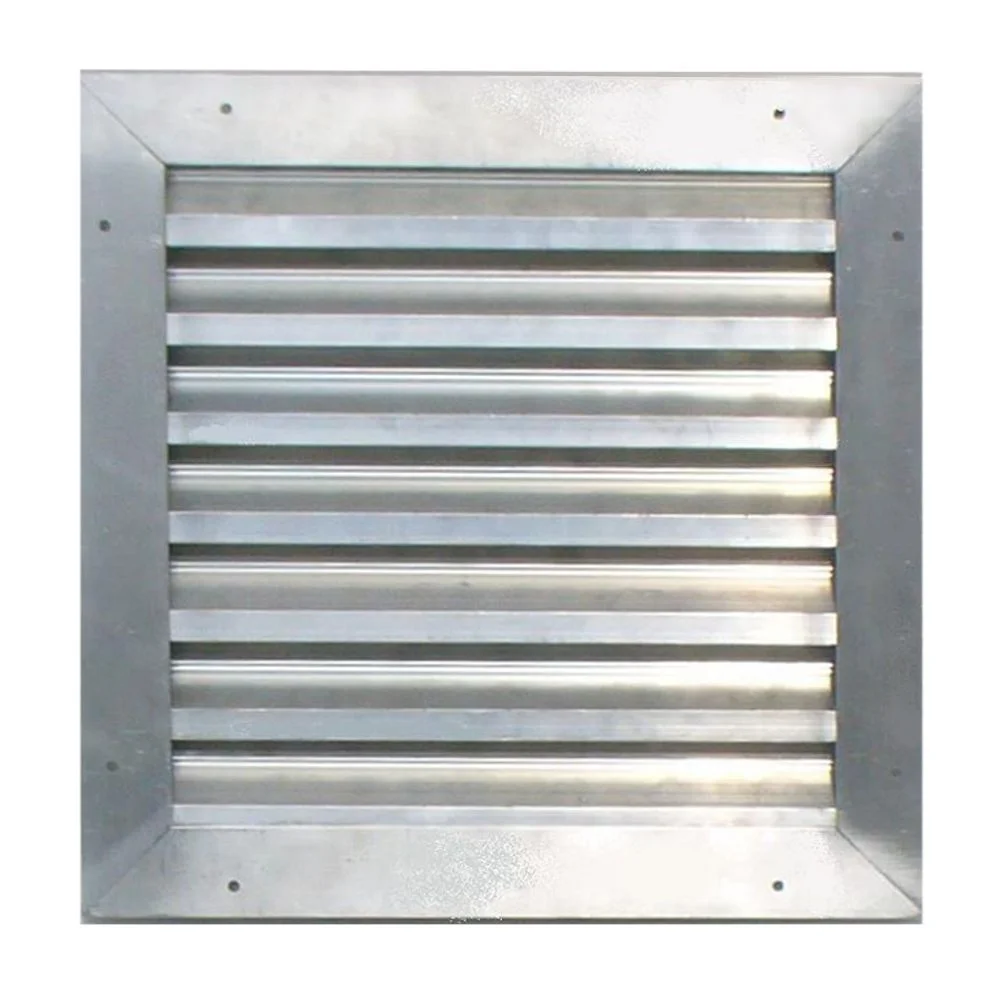

 | 1400 Storm-proof An exterior door that needs weather protection | Z with a water baffle, non-vision | .063 in extruded aluminum, mill finish | 35% | 8 × 8 to 48 × 90 in | 1-3/8 to 1-3/4 in | Not fire-rated |
 | 900FPL Exterior An exterior door that needs a bird screen | Z, 2-1/4 in spacing, non-vision, bird screen standard | Galvanneal steel, 20 ga frame and 18 ga blades | 50% | 10 × 10 to 36 × 84 in, larger in multiple sections | 1-3/4 in, self-attaching frame | Not fire-rated |
 | 1500AHR Hurricane An exterior door in a hurricane zone | Two rows of inverted split Y, 1 in spacing, 12 ga grille on both faces | Zinc-plated steel with a powder coat, 18 ga frame and blades, 12 ga grilles | 40% | 6 × 6 to 24 × 64 in, one section only | 1-3/4 in, bolted through the door | Florida approval FL13341 for use in an approved door assembly. 350 ft lb impact, 60 psf |
 | 1500A Security Vandal resistance, with grilles on both faces | Two rows of inverted split Y, 1 in spacing, 12 ga grille on both faces | Cold rolled steel, 18 ga frame and blades, 12 ga grilles. Zinc-plated optional | 40% | 6 × 6 to 36 × 80 in, larger in multiple sections | 1-3/4 in, bolted through the door | Not fire-rated |
 | 1900A Fire-rated A fire-rated steel or composite door up to 90 minutes | Operable Z, 1 in spacing, closes when a 165°F link melts | Cold rolled steel, 18 ga frame and 16 ga blades. Zinc-plated optional | 45% | 10 × 6 to 24 × 24 in, one section only | 1-3/4 in steel or composite fire door | Doors up to 90 min. The manufacturer lists UL 10B, UL 10C and CAN/ULC S104 |

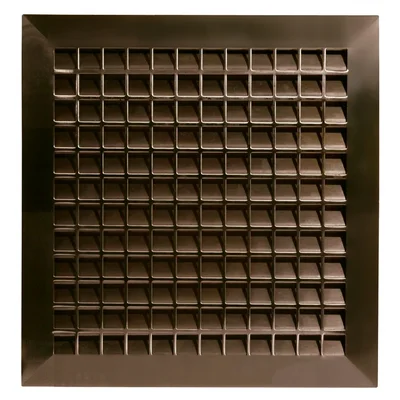

 | 1900ASG Fire-rated grille A fire-rated door in a security or detention area | Operable Z, 1 in spacing, 165°F fusible link, 12 ga grille on the corridor side | Cold rolled steel, 18 ga frame, 16 ga blades and a 12 ga grille. Zinc-plated optional | 35% | 10 × 6 to 24 × 24 in, one section only | 1-3/4 in steel or composite fire door | Doors up to 90 min. The manufacturer lists UL 10B, UL 10C and CAN/ULC S104 |
School and institutional doors, the manufacturer's most popular louver
Blade
Inverted Y, 1 in spacing, non-vision
Material
Cold rolled steel, 18 ga frame and 20 ga blades. Stainless, galvanneal or zinc-plated optional
Free area
50%
Sizes
6 × 4 to 48 × 80 in, larger in multiple sections
Door
1-3/8 to 1-3/4 in. The A1 frame fits 1-3/4 in doors only
Rating
Not fire-rated

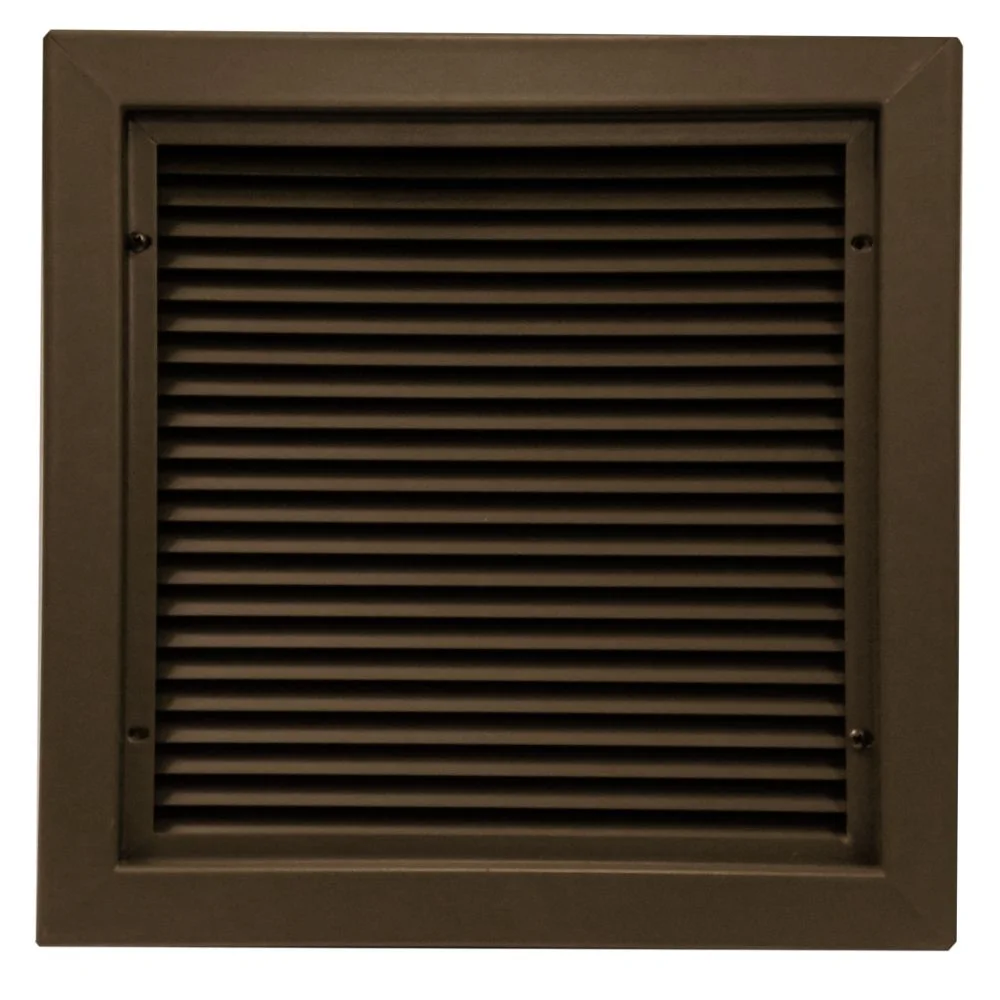

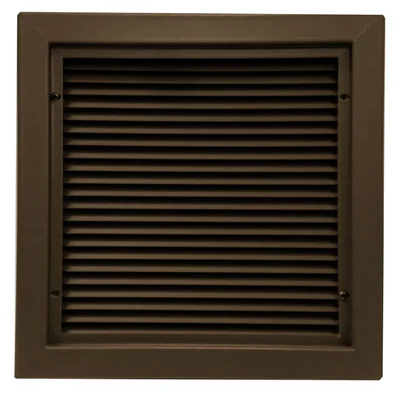

The highest free area of the steel louvers
Blade
Inverted V, 1/2 in spacing, non-vision
Material
Cold rolled steel, 18 ga frame and 20 ga blades. Stainless, galvanneal or zinc-plated optional
Free area
60%
Sizes
6 × 4 to 24 × 80 in, larger in multiple sections
Door
1-3/8 to 1-3/4 in. The A1 frame fits 1-3/4 in doors only
Rating
Not fire-rated

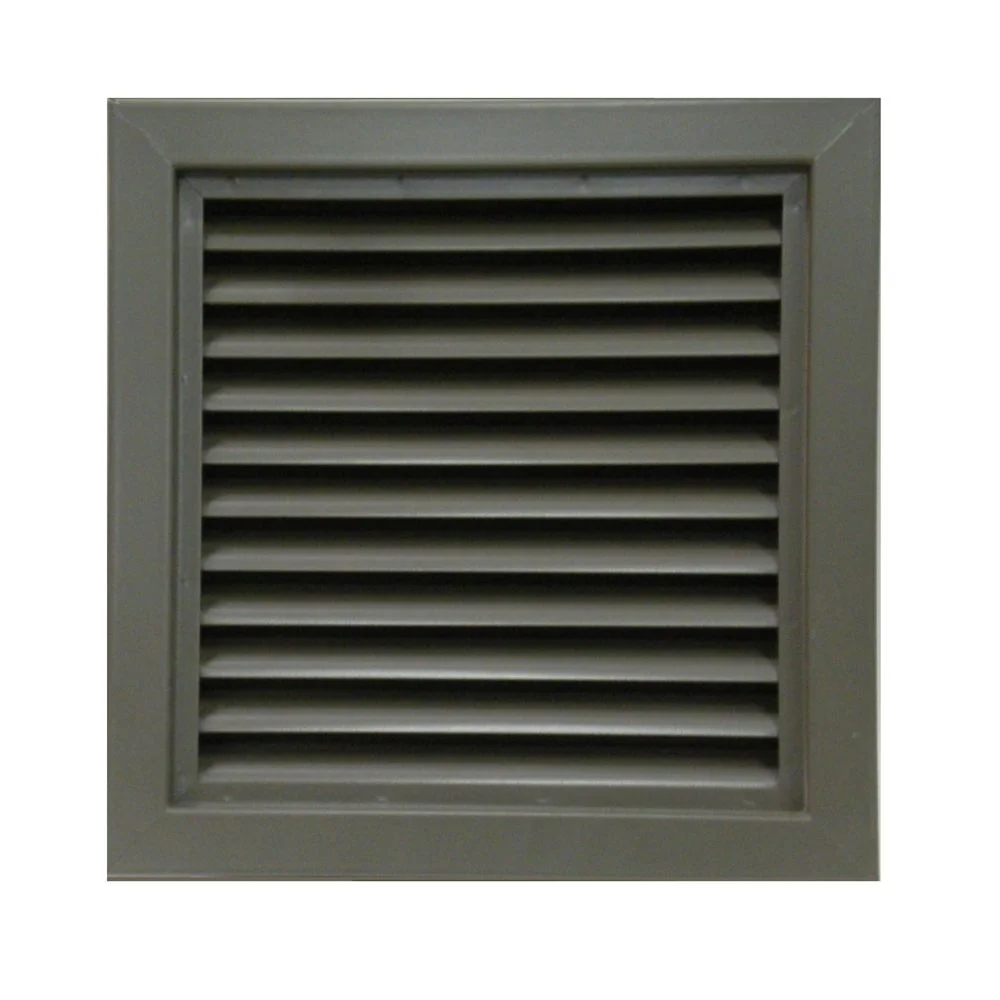

A Z blade for school and institutional doors
Blade
Z, 1 in spacing, non-vision
Material
Cold rolled steel, 18 ga frame and blades. Stainless, galvanneal or zinc-plated optional
Free area
43%
Sizes
6 × 4 to 48 × 80 in, larger in multiple sections
Door
1-3/8 to 1-3/4 in. The A1 frame fits 1-3/4 in doors only
Rating
Not fire-rated

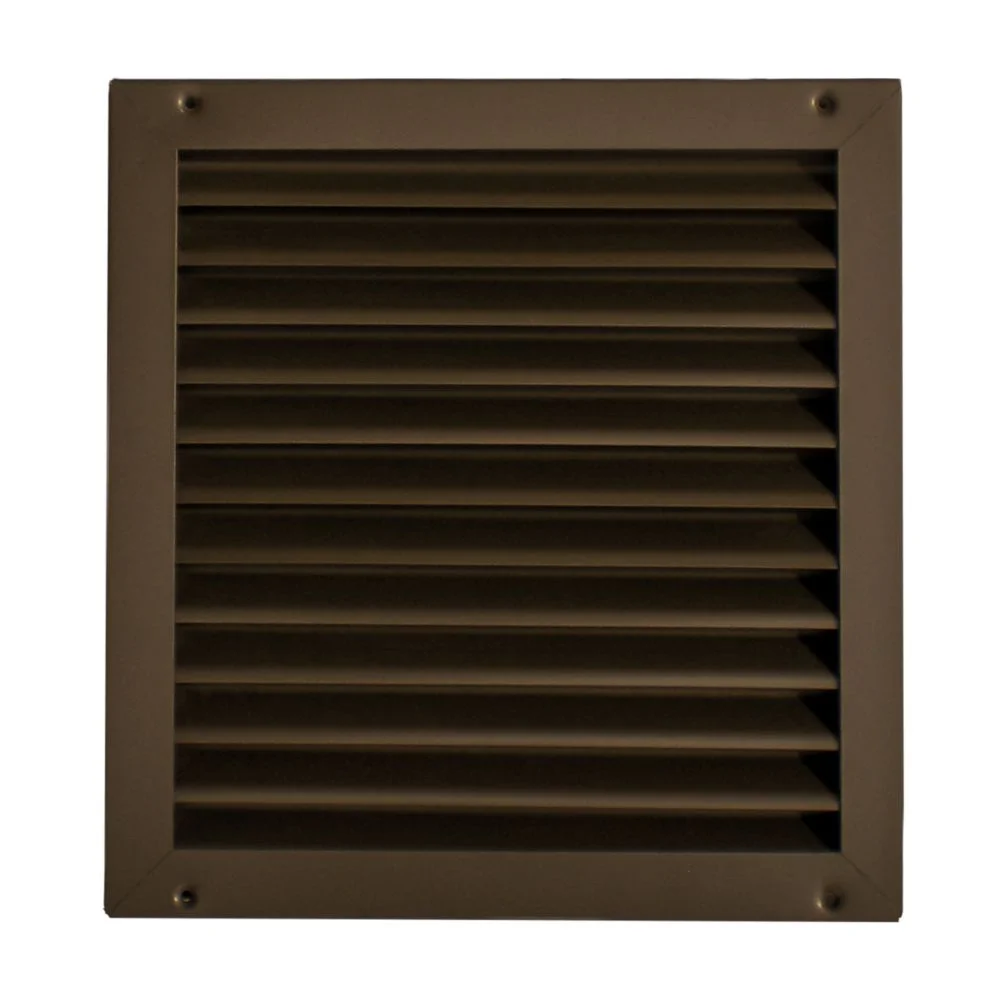

A wood or metal door from 1-3/8 in thick
Blade
Two rows of inverted split Y, 1 in spacing, non-vision
Material
Cold rolled steel, 18 ga frame and blades. Stainless, galvanneal or zinc-plated optional
Free area
50%
Sizes
6 × 4 to 48 × 80 in, larger in multiple sections
Door
1-3/8 in and thicker, wood or metal, screwed in from both sides
Rating
Not fire-rated
A transom in a hollow metal frame
Blade
Two rows of inverted split Y, 1 in spacing, non-vision
Material
Cold rolled steel, 18 ga frame and blades. Stainless, galvanneal or zinc-plated optional
Free area
50%
Sizes
10 × 10 to 36 × 36 in, larger in multiple sections
Door
Mounts flush in a hollow metal transom frame
Rating
Not fire-rated

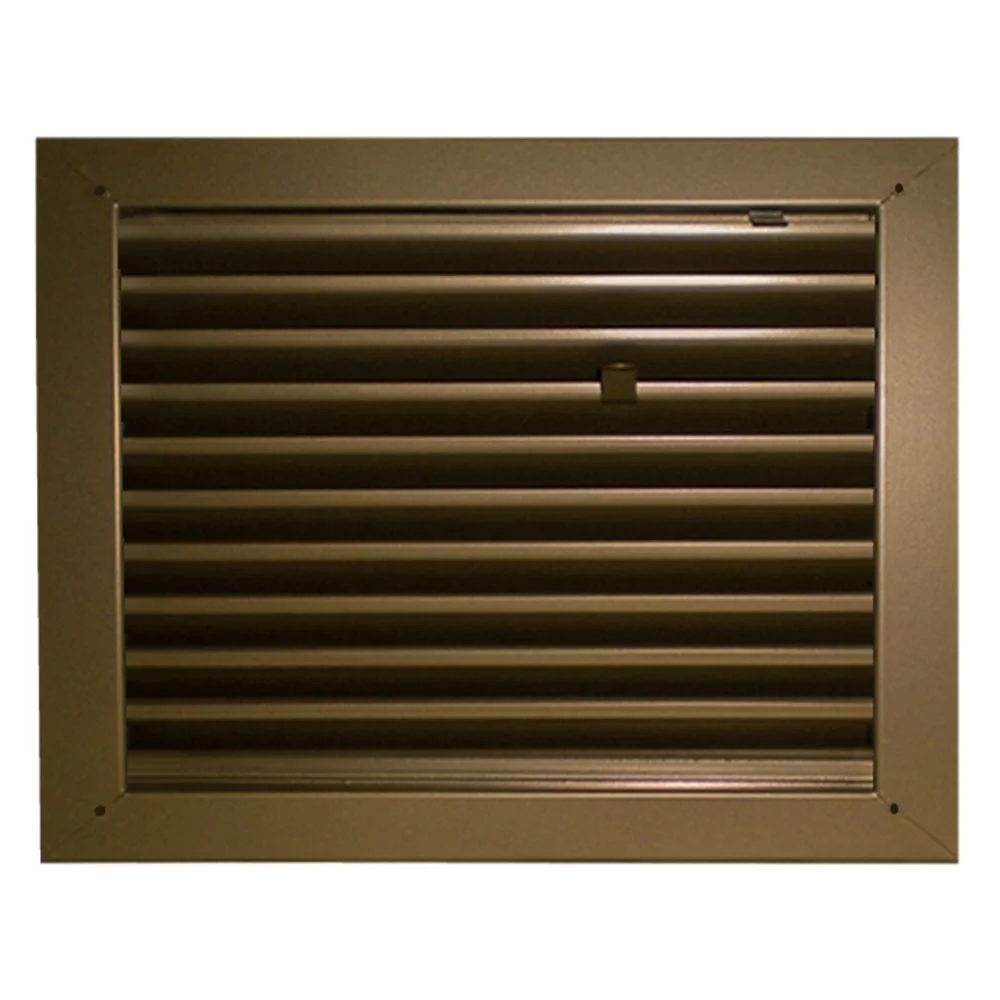

Airflow you open and close by hand
Blade
Z, 1 in spacing, adjusted by hand from the interior face
Material
Cold rolled steel, 18 ga frame and 16 ga blades. Zinc-plated optional
Free area
45% fully open
Sizes
8 × 6 to 24 × 36 in
Door
1-3/8 to 1-3/4 in
Rating
Not fire-rated

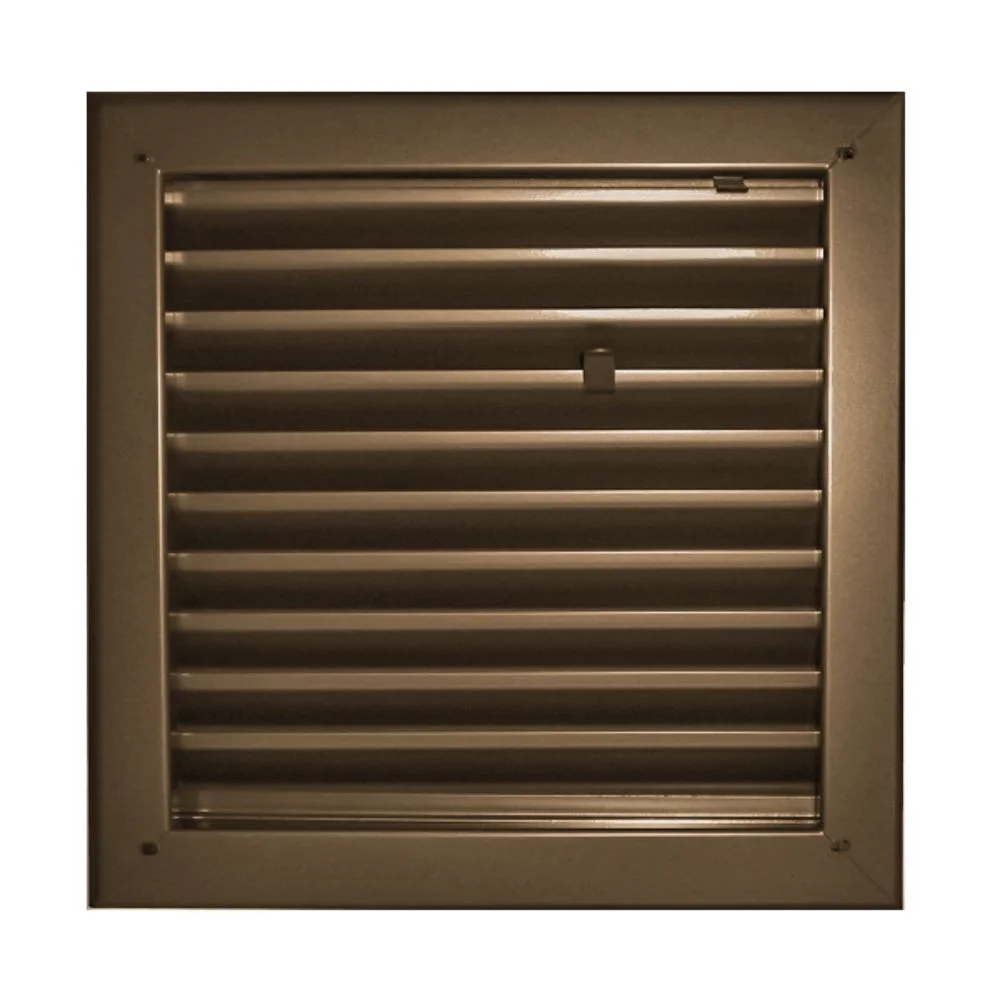

Adjustable airflow that still blocks the view
Blade
Two Z sections, one fixed and one adjustable, 1 in spacing
Material
Cold rolled steel, 18 ga frame and blades. Stainless or zinc-plated optional
Free area
43%
Sizes
12 × 12 to 24 × 36 in
Door
1-3/4 in and thicker, screwed in from both sides
Rating
Not fire-rated

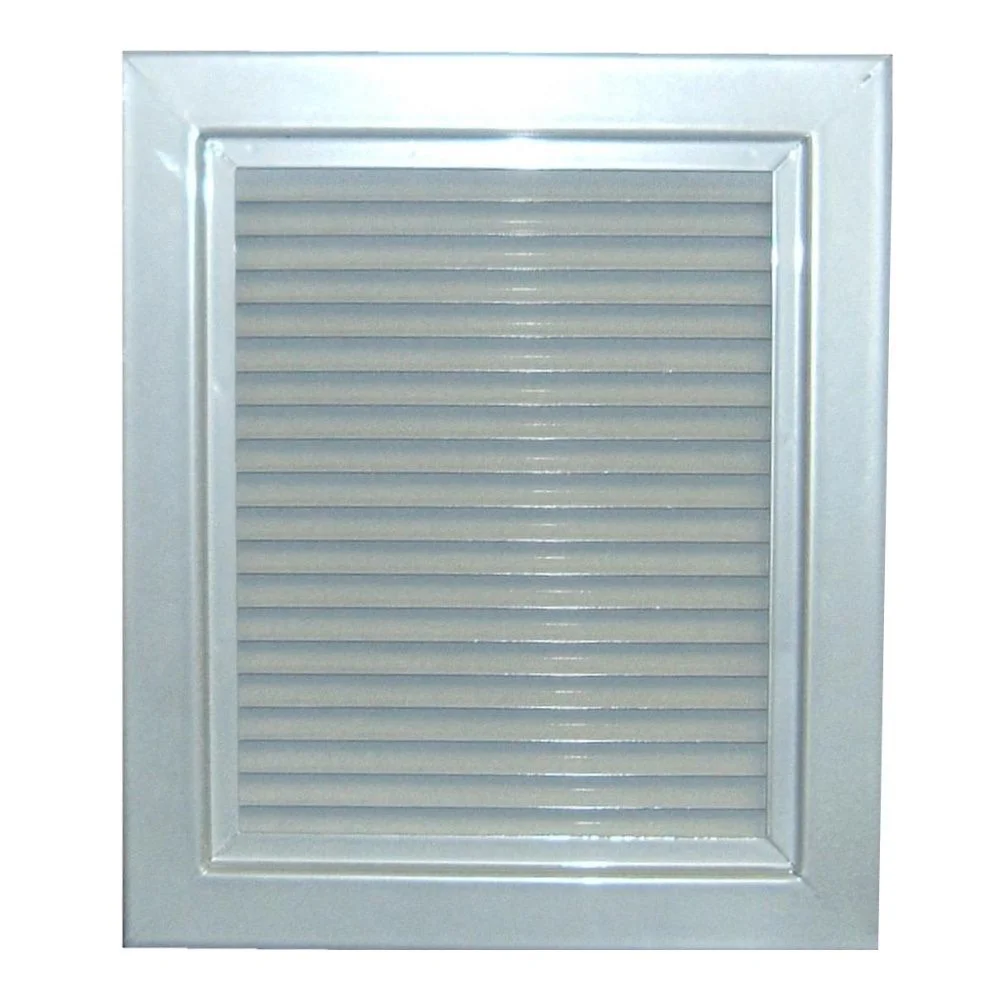

Humid rooms, or an all-aluminum louver
Blade
Inverted V, 1/2 in spacing, non-vision
Material
.050 aluminum frame and blades
Free area
60%
Sizes
6 × 4 to 24 × 80 in, larger in multiple sections
Door
1-3/8 to 1-3/4 in. The A1 frame fits 1-3/4 in doors only
Rating
Not fire-rated

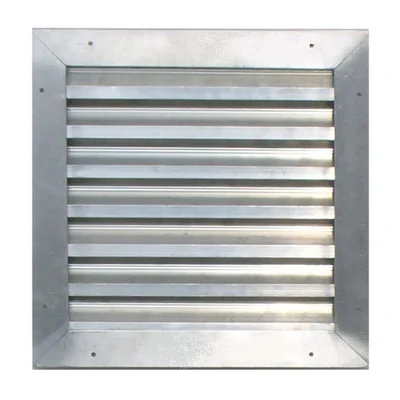

An exterior door that needs weather protection
Blade
Z with a water baffle, non-vision
Material
.063 in extruded aluminum, mill finish
Free area
35%
Sizes
8 × 8 to 48 × 90 in
Door
1-3/8 to 1-3/4 in
Rating
Not fire-rated

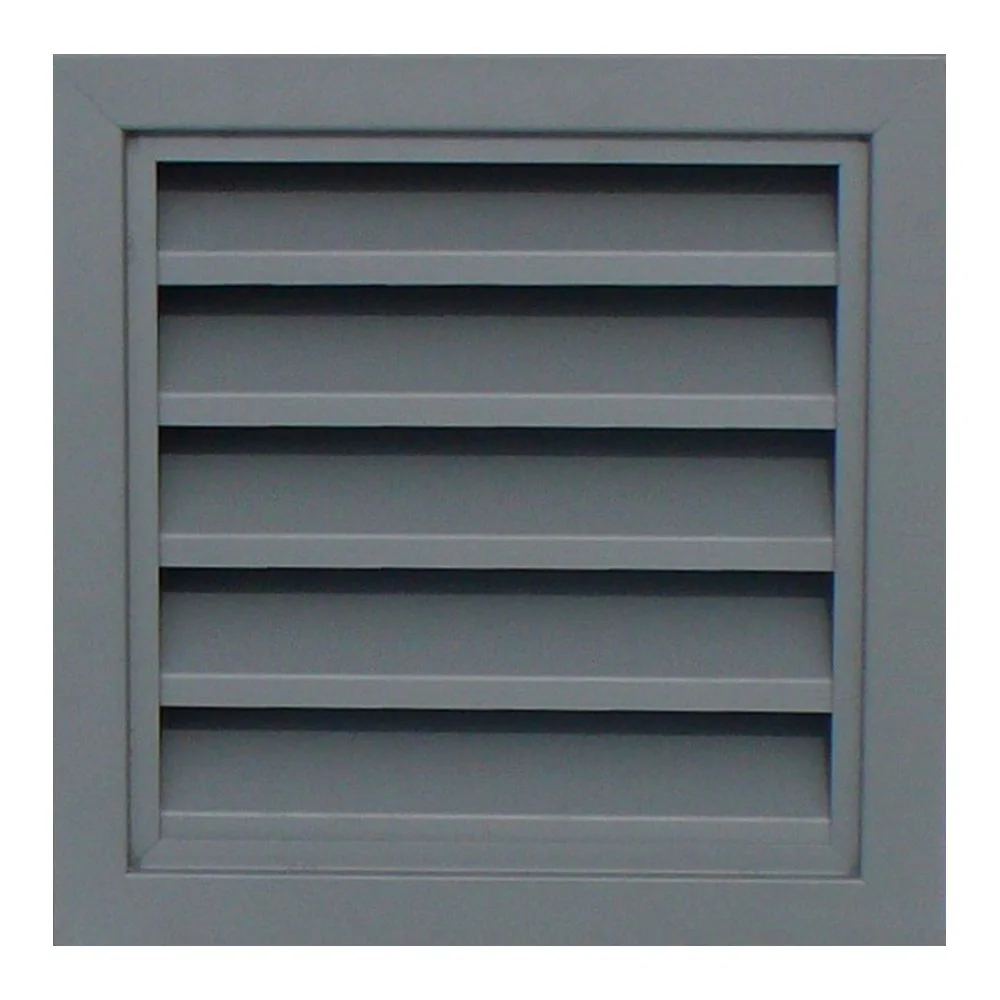

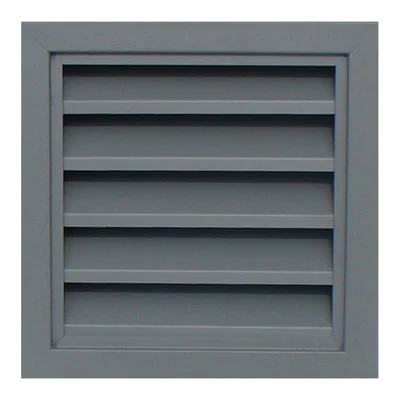

An exterior door that needs a bird screen
Blade
Z, 2-1/4 in spacing, non-vision, bird screen standard
Material
Galvanneal steel, 20 ga frame and 18 ga blades
Free area
50%
Sizes
10 × 10 to 36 × 84 in, larger in multiple sections
Door
1-3/4 in, self-attaching frame
Rating
Not fire-rated

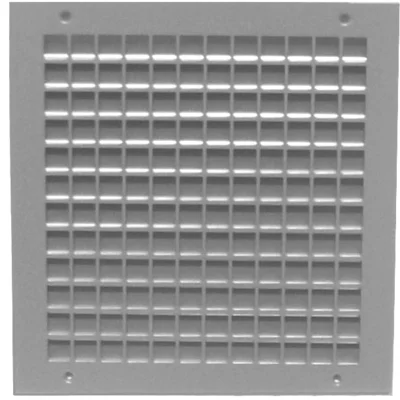

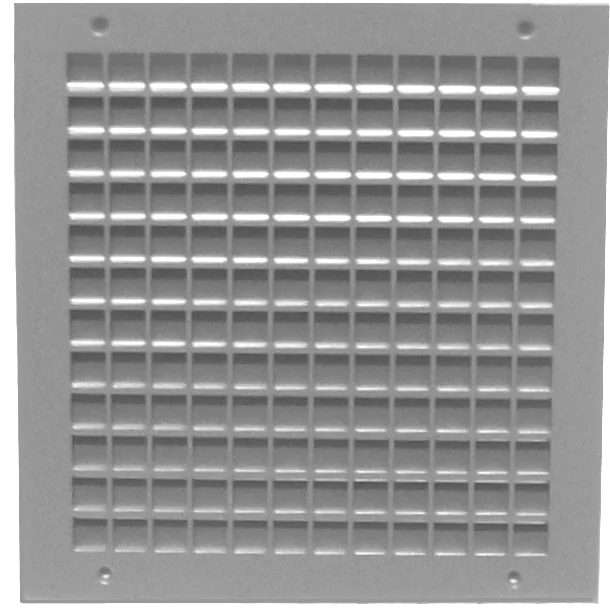

An exterior door in a hurricane zone
Blade
Two rows of inverted split Y, 1 in spacing, 12 ga grille on both faces
Material
Zinc-plated steel with a powder coat, 18 ga frame and blades, 12 ga grilles
Free area
40%
Sizes
6 × 6 to 24 × 64 in, one section only
Door
1-3/4 in, bolted through the door
Rating
Florida approval FL13341 for use in an approved door assembly. 350 ft lb impact, 60 psf

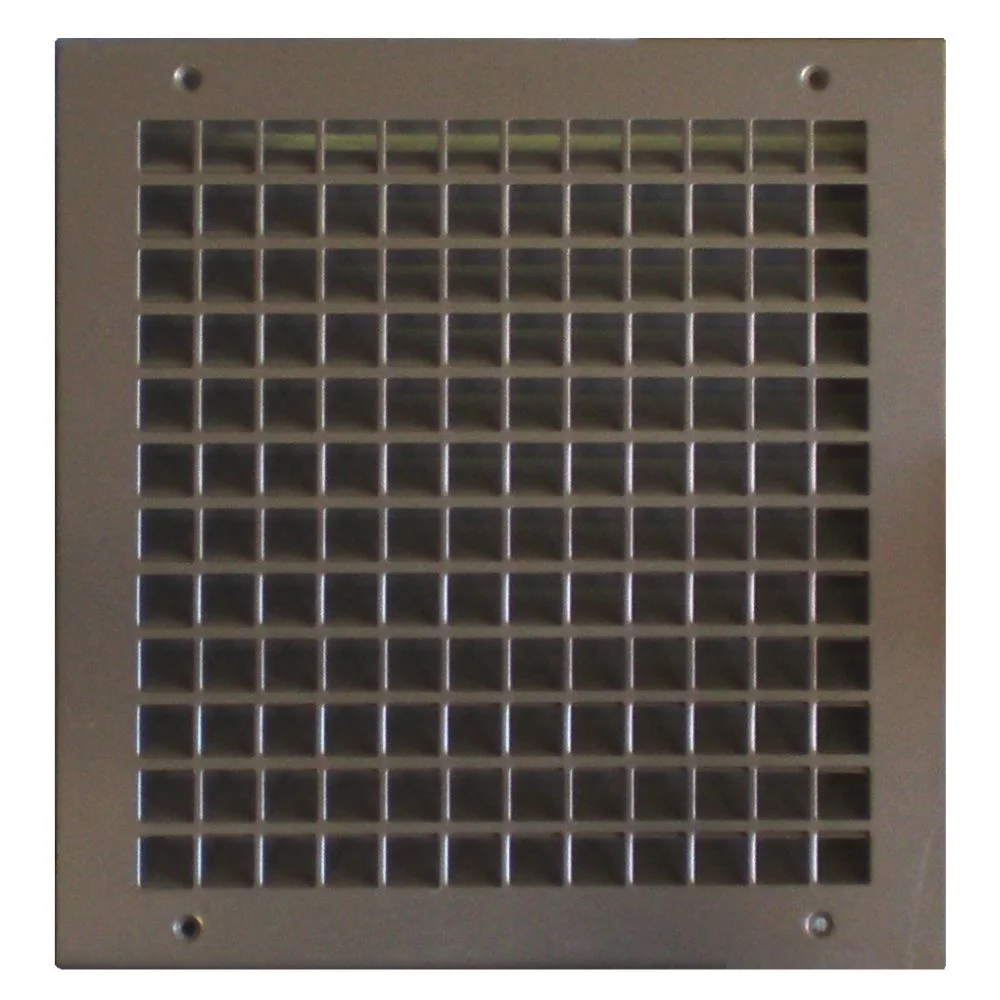

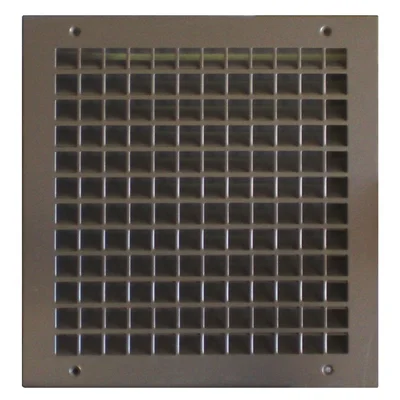

Vandal resistance, with grilles on both faces
Blade
Two rows of inverted split Y, 1 in spacing, 12 ga grille on both faces
Material
Cold rolled steel, 18 ga frame and blades, 12 ga grilles. Zinc-plated optional
Free area
40%
Sizes
6 × 6 to 36 × 80 in, larger in multiple sections
Door
1-3/4 in, bolted through the door
Rating
Not fire-rated

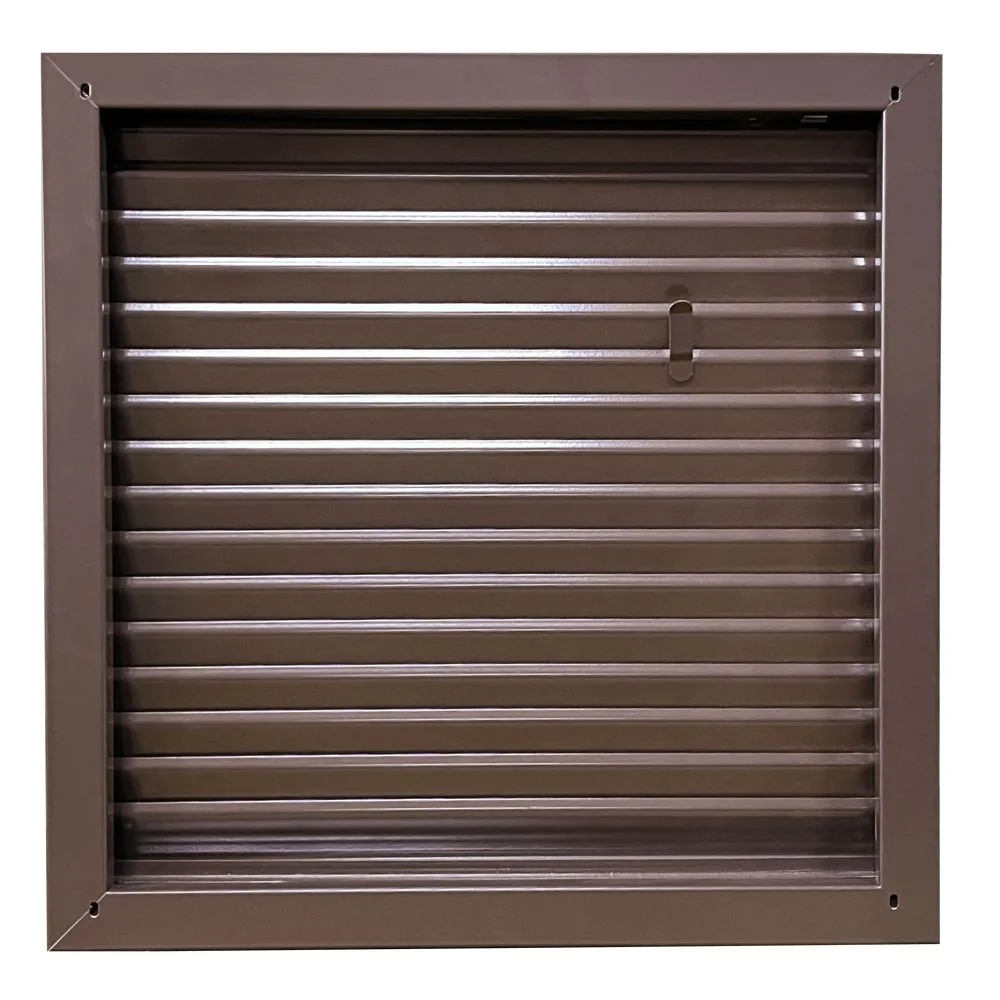

A fire-rated steel or composite door up to 90 minutes
Blade
Operable Z, 1 in spacing, closes when a 165°F link melts
Material
Cold rolled steel, 18 ga frame and 16 ga blades. Zinc-plated optional
Free area
45%
Sizes
10 × 6 to 24 × 24 in, one section only
Door
1-3/4 in steel or composite fire door
Rating
Doors up to 90 min. The manufacturer lists UL 10B, UL 10C and CAN/ULC S104

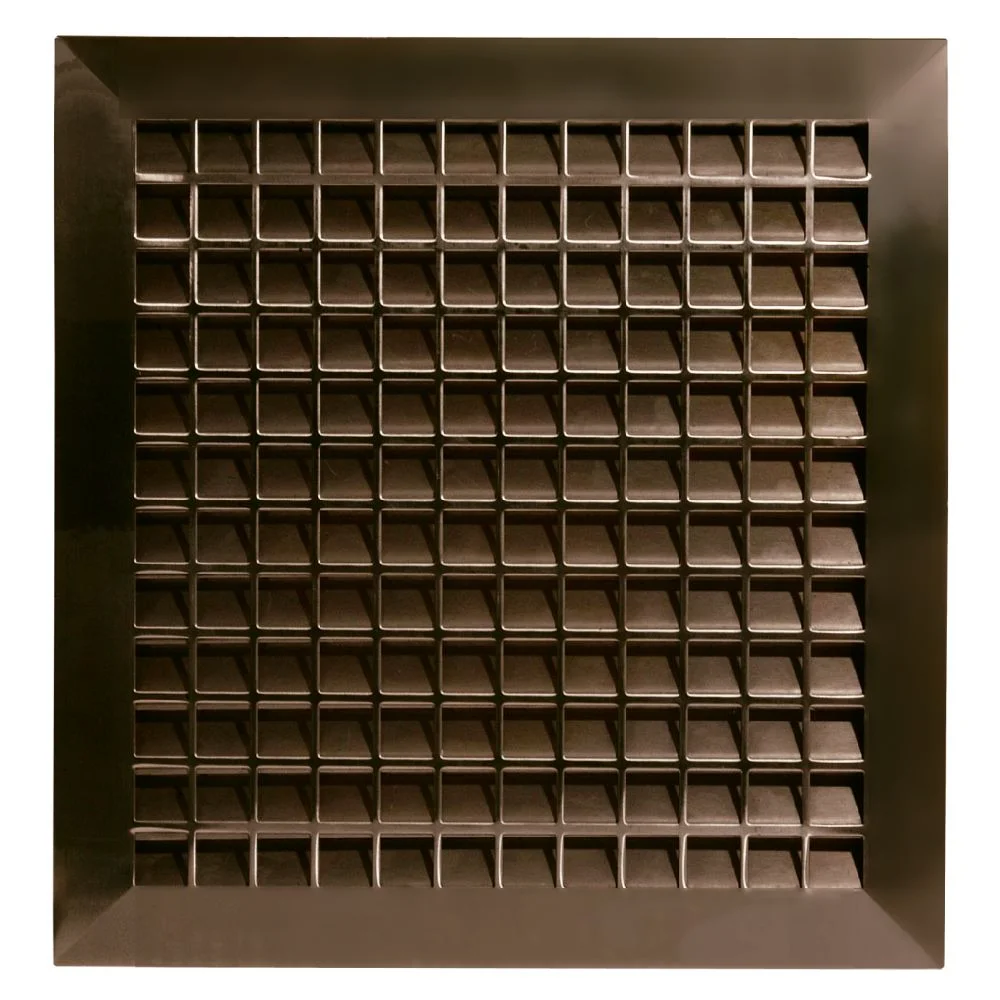

A fire-rated door in a security or detention area
Blade
Operable Z, 1 in spacing, 165°F fusible link, 12 ga grille on the corridor side
Material
Cold rolled steel, 18 ga frame, 16 ga blades and a 12 ga grille. Zinc-plated optional
Free area
35%
Sizes
10 × 6 to 24 × 24 in, one section only
Door
1-3/4 in steel or composite fire door
Rating
Doors up to 90 min. The manufacturer lists UL 10B, UL 10C and CAN/ULC S104
Related Documents & Downloads
600 submittal (PDF)700A submittal (PDF)700TL submittal (PDF)800 submittal (PDF)900 submittal (PDF)900FPL submittal (PDF)1100 submittal (PDF)1200A submittal (PDF)1300 submittal (PDF)1400 submittal (PDF)1500A submittal (PDF)1500AHR submittal (PDF)1900A submittal (PDF)1900ASG submittal (PDF)Guide specification, door louvers (DOCX)Fire-rated louver installation and maintenance (PDF)Self-attaching (A1) installation guide (PDF)Multiple-section louvers (PDF)Air Louvers catalog (PDF)Cross-reference to other brands (PDF)Color chart (PDF)Warranty (PDF)Frequently Asked Questions
Which louvers are fire-rated?
Only the 1900A and the 1900ASG. The manufacturer lists both as UL listed and labeled to UL 10B, UL 10C and CAN/ULC S104 for 1-3/4 in steel and composite fire doors rated up to 90 minutes. They are made in one section up to 24 × 24 in. Ask for a project submittal with your quote. Your local authority having jurisdiction has the final say on any fire door.
How does a fire-rated louver close?
A fusible link melts at 165°F and the blades close and lock. A tab on the room side opens or closes them by hand. Never paint the link or its hardware, because paint voids the fire rating. Work the blades by hand at least once a year.
What size do I send?
The door cutout. A louver's order size is the cutout and its frame laps onto the door around it. For the 700TL transom louver, send the inside size of the frame opening.
What do A1, A, C and core mean?
They are the ways a louver attaches. A1 is self-attaching with no screws on the corridor side and fits 1-3/4 in doors only. A has a frame on each face and adjusts to doors from 1-3/8 to 1-3/4 in. C has a frame on the corridor face, with molding by others on the room side. Core is the blade unit alone, held by molding, which also suits a transom. The 600, 800, 900 and 1300 come all four ways.
Can you see through them?
The manufacturer builds most series non-vision, so the blades block the view. The adjustable 1100 and the fire-rated 1900 series are not described that way, and no series is called light-proof.
Which ones go on an exterior door?
The 1400 aluminum louver with its water baffle, the 900FPL galvanneal louver with a bird screen and the hurricane-rated 1500AHR. The 1300 aluminum louver suits humid or exterior spaces. The 600, 700A, 800 and 900 also come galvanneal or zinc-plated for exterior use.
Is the 1500AHR hurricane-rated?
Yes. The manufacturer lists Florida Building Code approval FL13341 with a 350 ft lb impact rating and a 60 psf design pressure. It is tested to ASTM E330, ASTM E1886, ASTM E1996, ANSI A250.13 and TAS 201, 202 and 203. A hurricane rating covers the whole door assembly, not the louver alone. Check that the door and louver are approved together and confirm with your code official before ordering. It tops out at 24 × 64 in and is not made in multiple sections.
Can I get one bigger than the maximum size?
The 600, 700A, 700TL, 800, 900, 900FPL, 1300 and 1500A can be built in multiple sections joined by a 1-1/2 in mullion, quoted per project. Fire-rated louvers cannot, and the 1500AHR stops at 24 × 64 in.
What colors and materials?
Ten powder coat colors: bronze, gray, black, flat black, white, silver, brass, sand, AMS beige and SC beige. The 1400 is mill finish aluminum. Several series also come in stainless steel with a #4 finish.
Can I add a screen?
Yes, on most series. Pick an 18 × 14 insect screen in fiberglass, aluminum, bronze or stainless steel. Or pick a 1/4 in galvanized bird screen. A louver takes one or the other. The 1100 takes an insect screen only. The 900FPL comes with a bird screen. For the fire-rated 1900 series and the 1500AHR, ask us first: their listing documents do not mention screens.
Can you match a louver another brand specified?
Usually. The manufacturer publishes a cross-reference from these series to Advantage, Anemostat and Rockwood louvers and notes they are not exact equals, so check the wall depth. Send the model you were given and we confirm the match before we quote.
Who makes them?
Air Louvers, one of the Activar Construction Products Group brands alongside JL Industries. We order them through our Activar account.
Is it made in the USA?
Yes. The manufacturer lists all its door louvers as built in Bloomington, Minnesota or Commerce, California.
What is the warranty?
Five years from shipment against defects in materials and workmanship.
How do I send plans?
Tick "I have plans or specs to share" on the quote form. We email you, and you reply with the drawings.
