Division 08: Openings

The Division 08 sections we supply, who makes what we sell, and how to get a quote against your spec. Where the manufacturer publishes a submittal, the product page links it.

Doors and FramesSection 08 10 00

Priced per project

Steel frames that hold the glass in a door window: fire-rated vision lites for 1-3/4 in and thicker doors, frames for insulated and specialty glass, and Florida-approved hurricane frames sold with their glass. Priced per project. MasterFormat has no vision-lite number, so most manuals specify the kit inside the door section, 08 11 13 or 08 14 16.

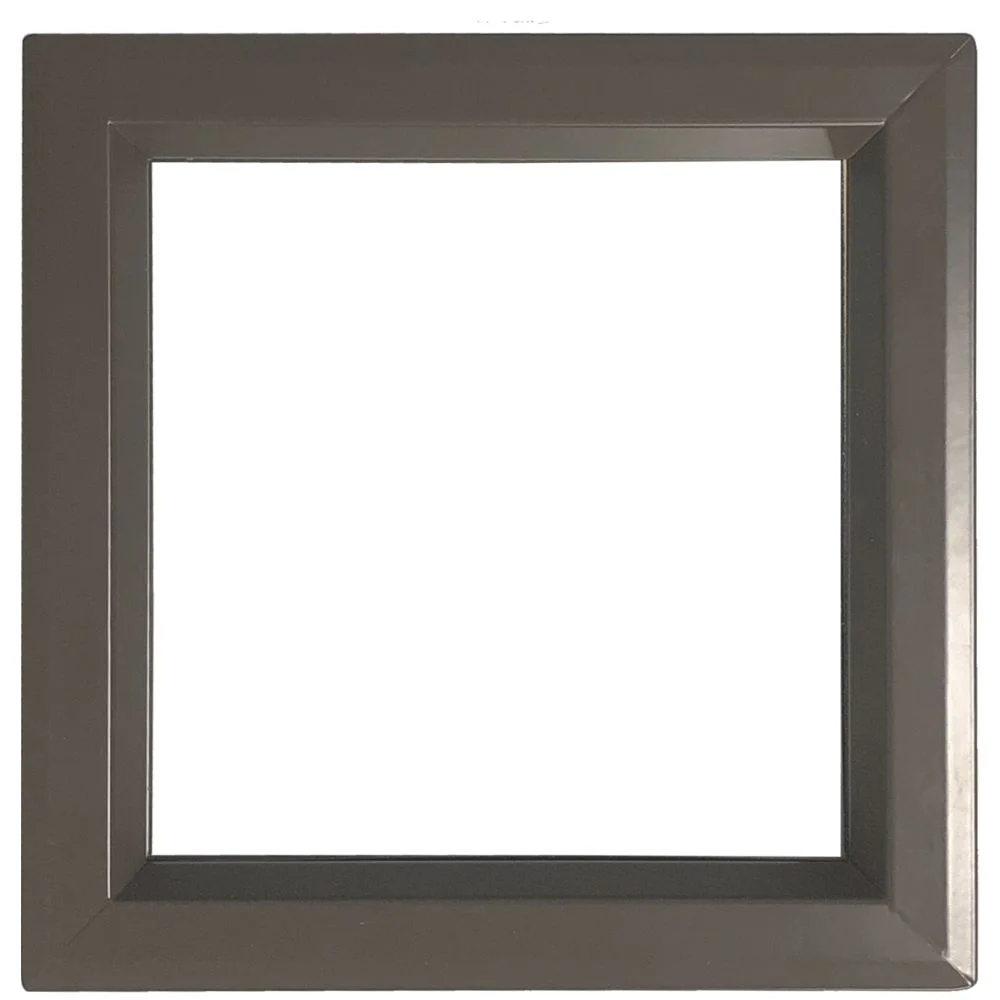

VSLH Slimline vision lite frame in mineral bronze, seen from the front, square with a narrow beveled trim

Manufacturer: Air Louvers

VSLH Slimline, low profile, for 1-3/4 in doors

Priced per project

Manufacturer: Air Louvers

VLF Thrubolt, square profile, for 1-3/4 in doors

Priced per project

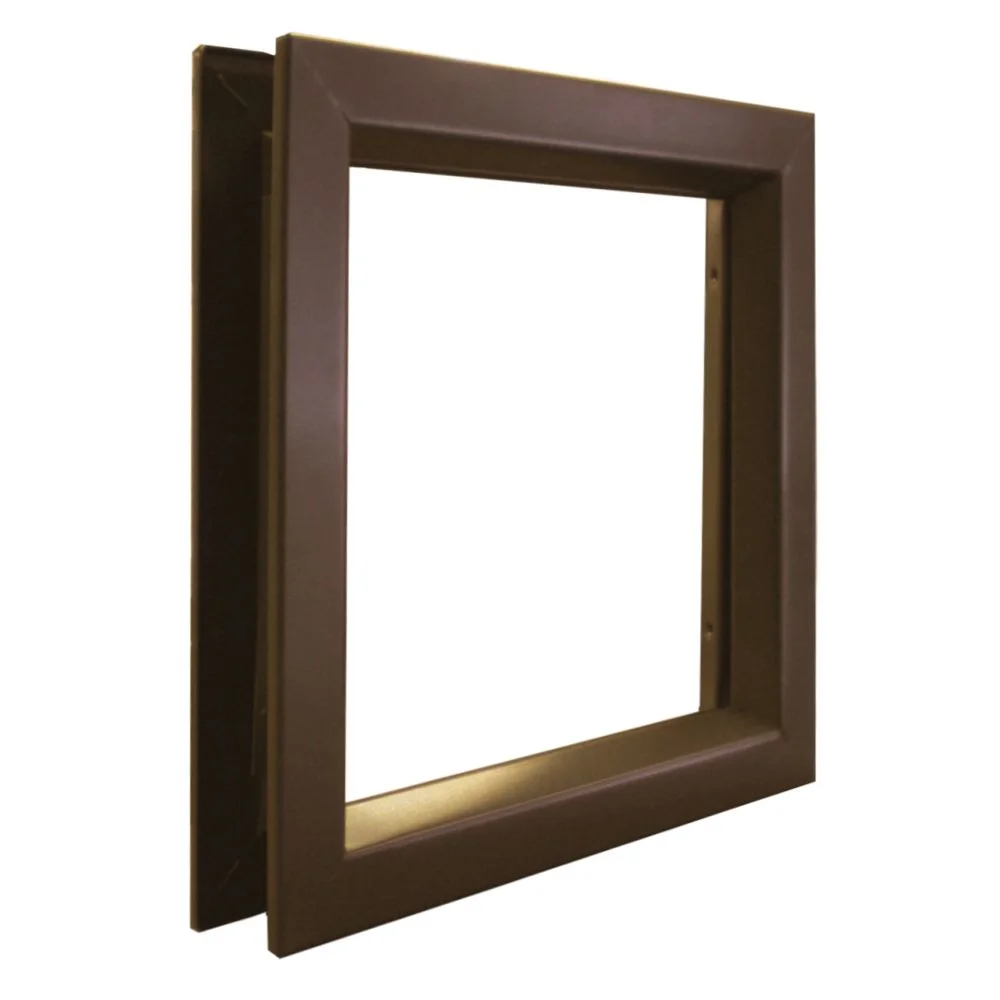

VLFEZ EZLine vision lite in mineral bronze, seen at an angle, with a wide beveled trim

Manufacturer: Air Louvers

VLFEZ EZLine, beveled, for 1-3/4 in doors

Priced per project

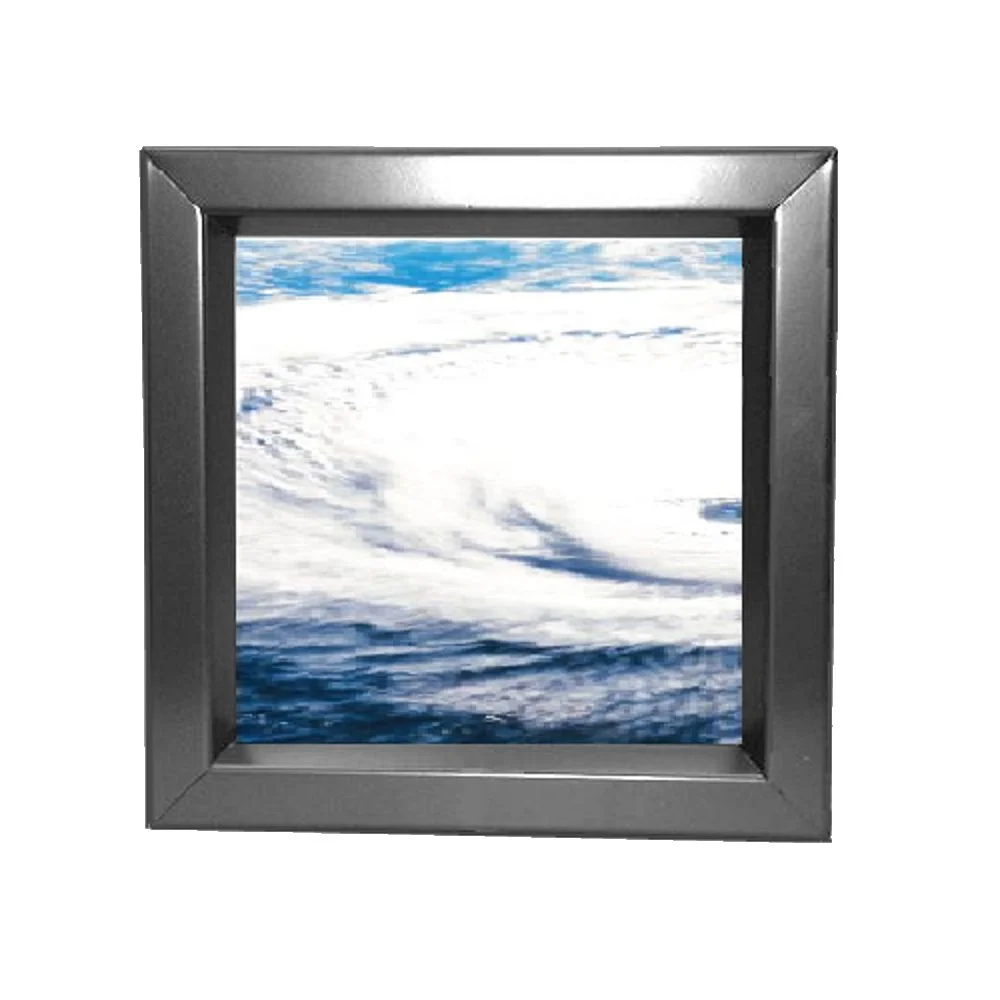

VLFEZHRC hurricane vision lite PAK with a gray beveled frame, a satellite image of a hurricane behind the glass

Manufacturer: Air Louvers

VLFEZHRC Hurricane EZLine PAK, polycarbonate glass included

Priced per project

Door Vision Lites: series and pricing →

Access Doors and FramesSection 08 31 13

5 products · JL Industries · $79.00 to $229.00

Access doors and panels for walls and ceilings: fire-rated insulated panels in a wide size range, with stainless, drywall-bead and plaster-bead versions, plus stainless general-purpose panels. Made to order. Product pages link the submittal where the manufacturer publishes one.

Code and guide: NFPA 80 Fire Doors & Other Opening Protectives →

JL Industries FDS fire-rated insulated access panel in brushed stainless steel with exposed flange, continuous hinge and keyed latch

Manufacturer: JL Industries

JL Industries FDS Fire Rated Insulated Access Panel Stainless Steel

$229.00

JL Industries FDP fire-rated insulated access panel in white with plaster bead flanges, continuous hinge and keyed latch

Manufacturer: JL Industries

JL Industries FDP Fire Rated Insulated Access Panel Plaster Bead

$129.00

JL Industries FDW fire-rated insulated access panel in white with a perforated drywall bead flange and keyed latch

Manufacturer: JL Industries

JL Industries FDW Fire Rated Insulated Access Panel Drywall Bead

$119.00

JL Industries FD series fire-rated insulated access panel in white, shown with the door open

Manufacturer: JL Industries

JL Industries Fire Rated Insulated Access Panel FD Series

$99.00

All 5 products →

Floor DoorsSection 08 31 23

Priced per project

Hinged access doors set flush in a floor: angled frames cast into new concrete, frames for openings already cut, drainable and recessed-pan doors, and fire-rated floor doors. Priced per project. Federal masters, older manuals and water-utility specs often schedule floor doors under 08 31 00, 08 31 13 or 05 50 00 instead.

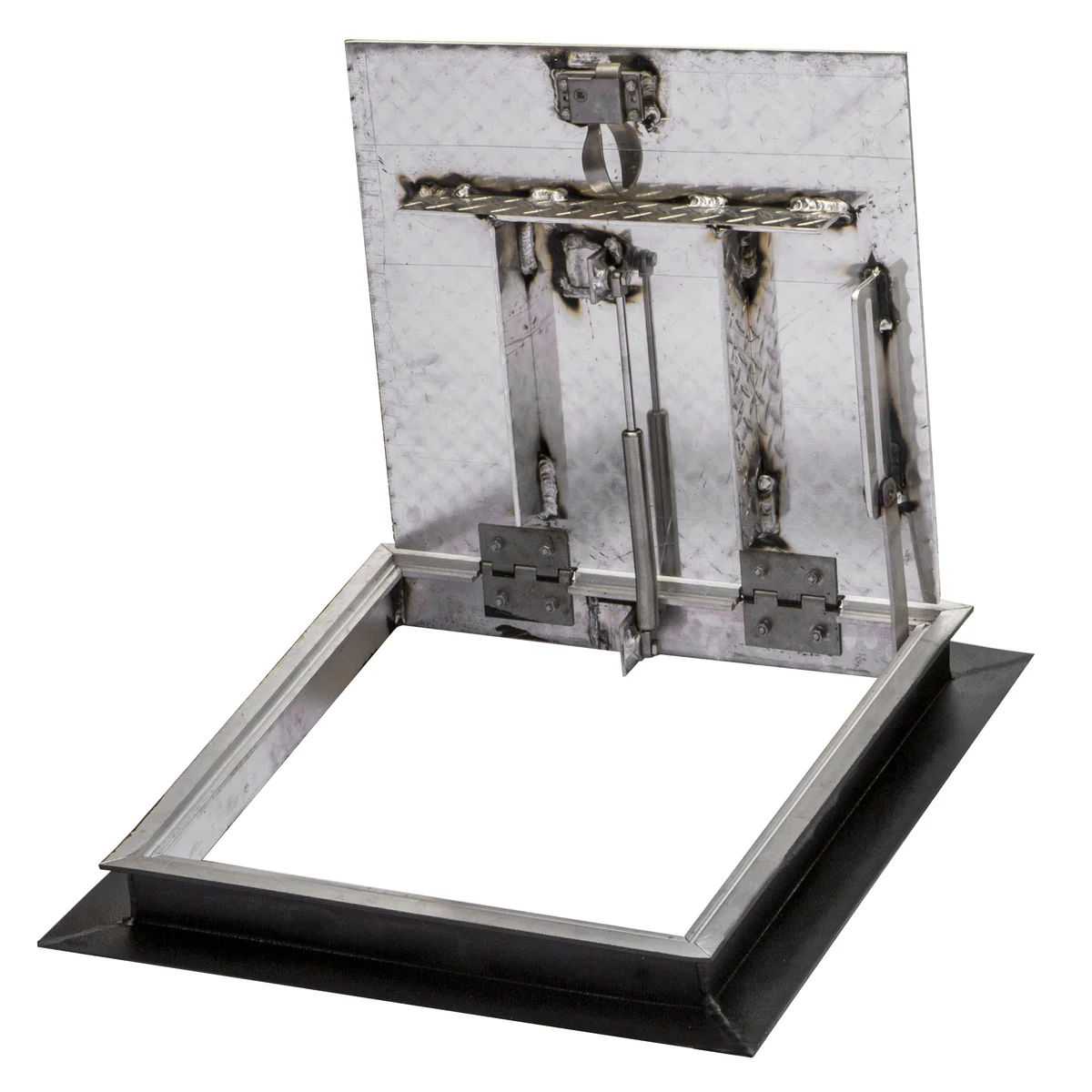

FLDA angled floor door, open, showing the gas spring, hinges and hold-open arm under the diamond plate cover, on a coated anchoring flange

Manufacturer: JL Industries

FLDA Angled frame, cast into a new slab

Priced per project

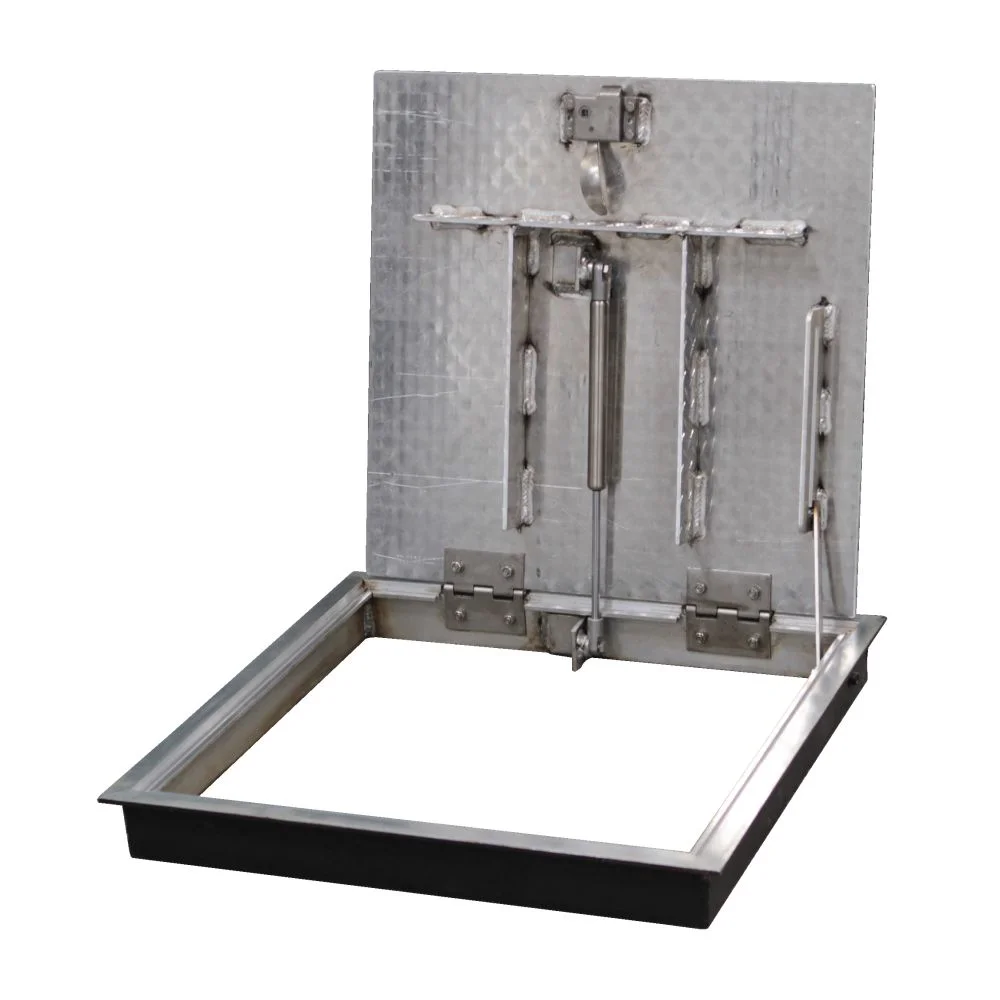

FLDE floor door for an existing opening, open, showing the stiffeners, gas spring and hinges under the diamond plate cover

Manufacturer: JL Industries

FLDE Angled frame, for an existing opening

Priced per project

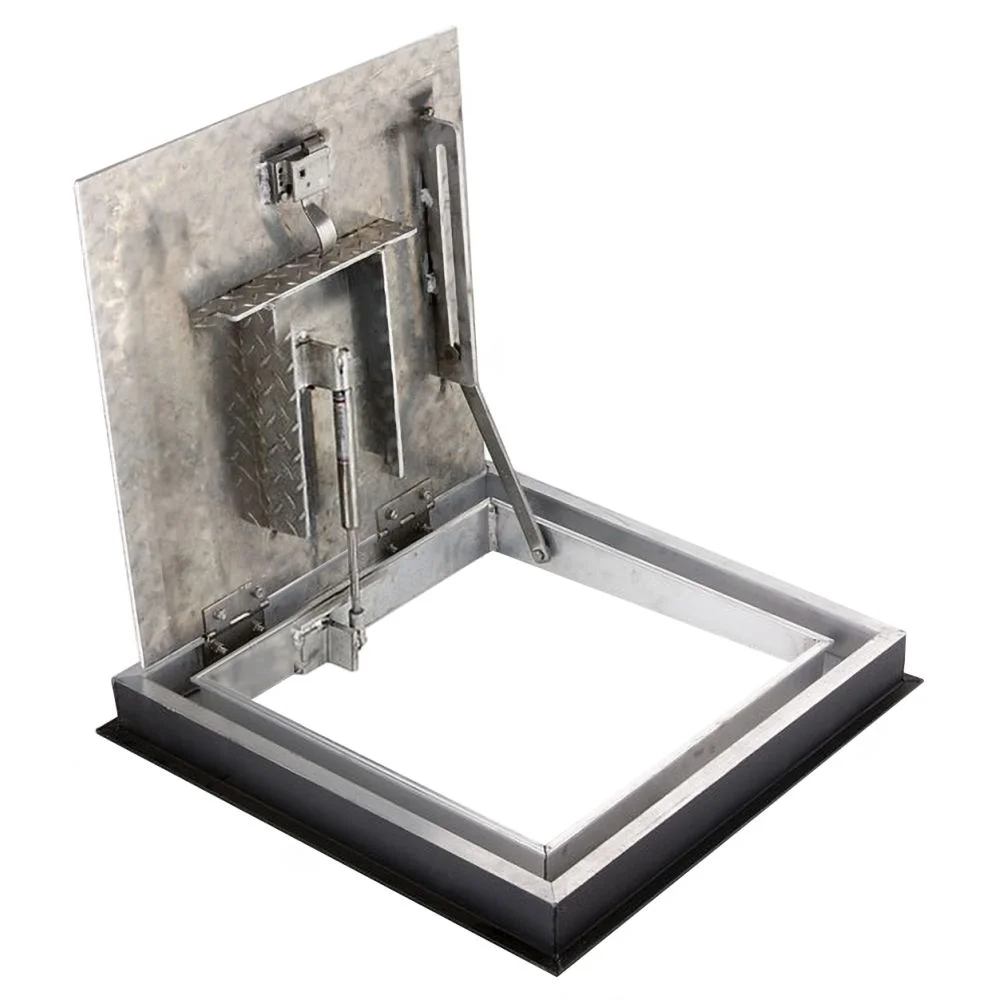

FLDD drainable floor door, open, showing the gutter channel inside the frame and the hold-open arm

Manufacturer: JL Industries

FLDD Drainable, with a built-in gutter

Priced per project

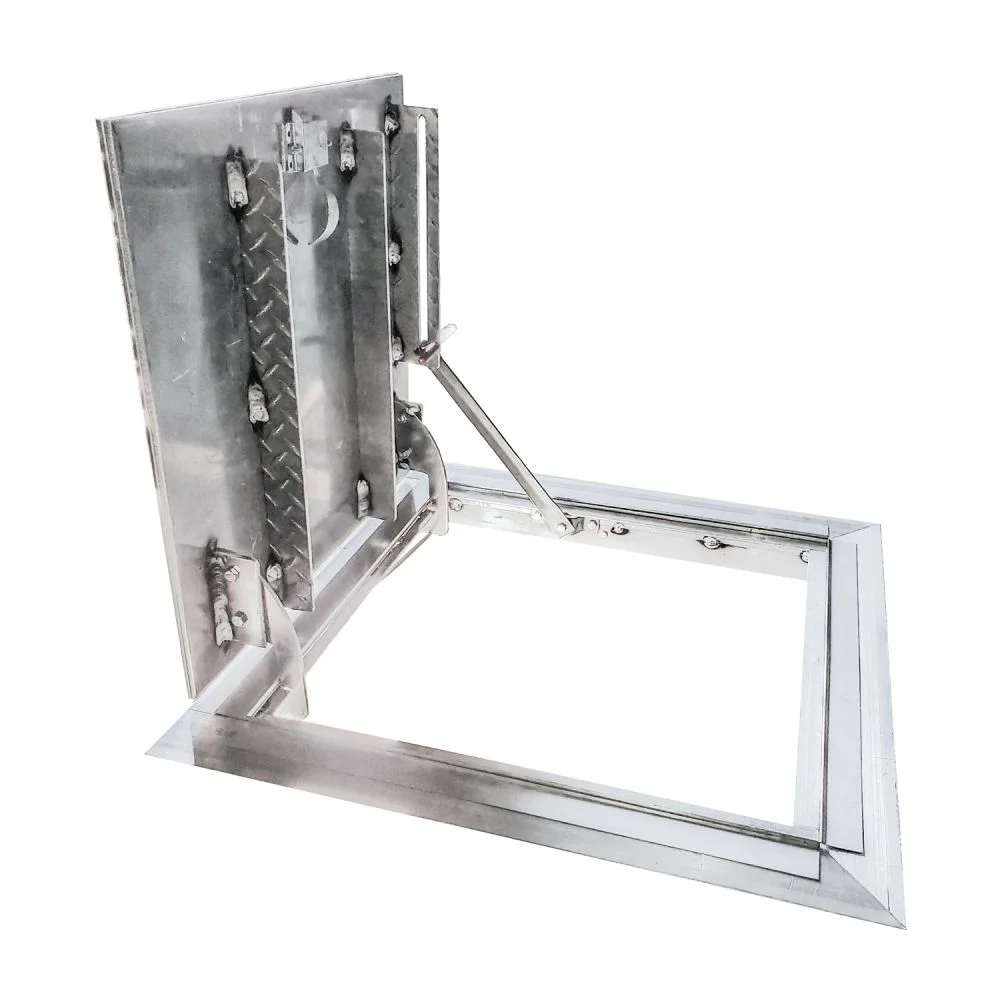

FLDR recessed floor door, open, showing the smooth plate cover with stiffeners and its hold-open arm

Manufacturer: JL Industries

FLDR Recessed for tile or carpet

Priced per project

Floor Access Doors: series and pricing →

LouversSection 08 91 00

Priced per project

Metal louvers set into a cutout in a door to pass air between rooms: steel and aluminum louvers with fixed or adjustable blades, exterior and security models, a hurricane-rated louver and fire-rated louvers that close on a fusible link. Priced per project. CSI gives door louvers their own number, 08 91 26, but project manuals rarely issue it, and most specify door louvers inside the door sections, 08 11 13 or 08 14 16.

800 series door louver in bronze, square, with horizontal inverted Y blades inside a flat face frame

Manufacturer: Air Louvers

800 Inverted Y blade, non-vision

Priced per project

600 series door louver in bronze, with closely spaced inverted V blades inside a flat face frame

Manufacturer: Air Louvers

600 Inverted V blade, 60% free area

Priced per project

900 series door louver in gray, with horizontal Z blades inside a flat face frame

Manufacturer: Air Louvers

900 Z blade, non-vision

Priced per project

700A door louver in bronze, with horizontal split Y blades and a screw hole in each corner of the frame

Manufacturer: Air Louvers

700A Two-piece split Y blade, for doors from 1-3/8 in

Priced per project

Door Louvers: series and pricing →

Bidding a Division 08 package? Tell us the section.

Send the section number and the project. We reply by email, ask for the spec pages, confirm the basis of design, and quote what the section names.

or call 714-248-6555 · email partners@usmadesupply.com

A section number tells you where a product is usually scheduled in a project manual. It is not a compliance claim, an approval, or a listing. MasterFormat® is a registered trademark of the Construction Specifications Institute.
