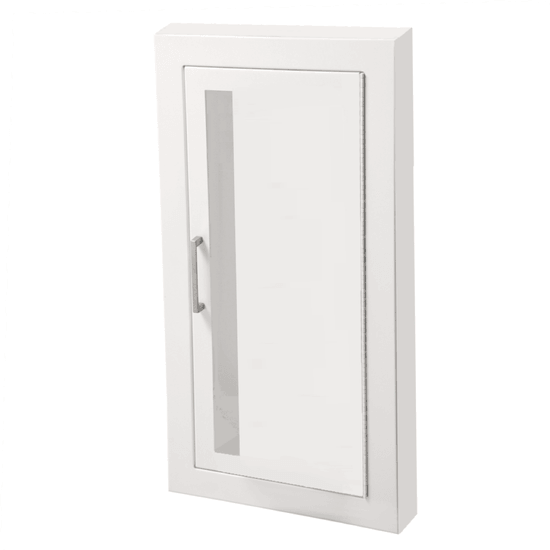

JL Industries Ambassador Steel Semi-Recessed Fire Extinguisher Cabinet 10 lb 1016V10

The JL Industries Ambassador 1016V10 is a semi-recessed steel fire extinguisher cabinet for a 10 lb extinguisher, made in the USA. The tub recesses into the wall while the 1-1/2 in square trim projects from the wall face, so it fits standard stud walls while staying within the ADA 4 in projection limit. The vertical-duo clear acrylic door has a continuous hinge that opens 180 degrees and a zinc-plated pull handle with roller catch.

Specifications

Model	Ambassador 1016V10
Mounting	Semi-recessed, 1-1/2 in square trim
Fits extinguisher	2.5 to 10 lb
Tub interior (W×H×D)	10-1/2 in × 24 in × 6 in
Trim, outside (W×H)	13-7/8 in × 27-3/8 in
Rough wall opening (W×H×D)	11-1/2 in × 25 in × 4-5/8 in
Material / finish	Cold-rolled steel, white powder coat
Door	Vertical-duo clear acrylic glazing, pull handle, 180° continuous hinge
Fire rating	Non-rated
ADA projection	1-1/2 in — 4 in or less
Weight	17 lb
Country of Origin	USA

Extinguisher compatibility

Sized for 2.5 to 10 lb portable extinguishers. Fit is set by the extinguisher's cylinder diameter against this cabinet's 6 in interior (tub) depth, not by weight — a standard 10 lb dry-chemical unit fits, while a wide-body "short" 10 lb or a 20 lb unit is too deep and needs a larger cabinet. Confirm the cylinder diameter on your extinguisher's cut sheet against the tub depth above. See our Fire Extinguisher Cabinet Selection Guide for the full fit matrix.

Placement and mounting height follow the NFPA 10 requirements.

Model cross-reference

JL Industries builds this same 10-1/2 in × 24 in × 6 in tub in other Ambassador steel trims: 1014 (trimless), 1015 (flat), 1017 (3 in rolled), 1012 (4 in rolled with flush pull), 1018 (4-1/2 in rolled), plus the surface-mount 1013. The semi-recessed models all share this cabinet's 11-1/2 in × 25 in wall opening and hold the same 2.5 to 10 lb extinguishers, so this cabinet fits the existing opening when you are replacing one of them. Trim projection, door style, and glazing vary by model, and an older spec sheet can list glazing codes that are no longer in the current book. For an exact trim or glazing match, request a quote from this page. The same tub sizes with clear anodized aluminum door and trim are the Academy series (our Academy 1027F10).
