Dur-Red smoke vents open on their own in a fire to let smoke and heat out through the roof. Pick the series, then send the size or your plans. We reply with pricing, lead time and the submittal.
Each vent is made to order, so we price it per project for its size and options. Send the series with the roof opening size and any link or curb option. Plans work too.
Compare series
| Photo | Series | Cover | Insulation | Curb | Sizes | Weight | Opens by | Listing |
|---|---|---|---|---|---|---|---|---|

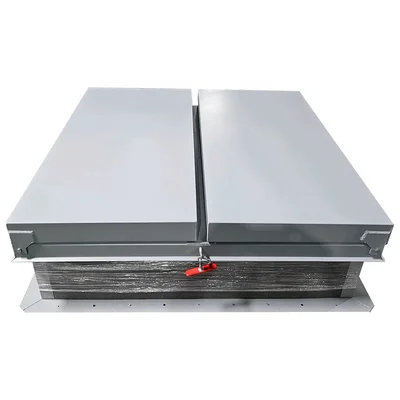

 | RVF FlatSelected A solid insulated cover | 11 ga aluminum with an 18 ga aluminum liner | 1 in polyiso, R-6, in the curb and cover | 14 ga galvanneal steel | 48 × 48 to 48 × 96 in | 225 to 330 lb | 165°F fusible link or pull handles | UL 793, up to 48 × 96 in |

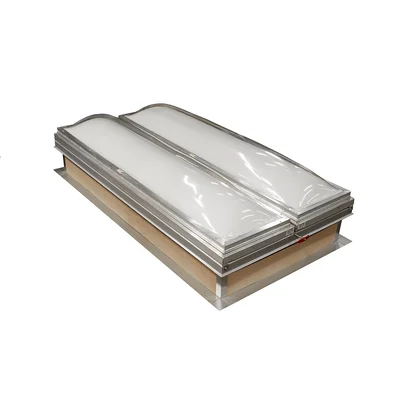

 | RVFV Domed Daylight through the vent, like a skylight | Clear over white polycarbonate domes in an aluminum frame | 1 in polyiso, R-6, in the curb | 14 ga galvanneal steel | 48 × 48 to 48 × 96 in | 240 to 355 lb | 165°F fusible link or pull handles | UL 793, up to 48 × 96 in |
A solid insulated cover
Cover
11 ga aluminum with an 18 ga aluminum liner
Insulation
1 in polyiso, R-6, in the curb and cover
Curb
14 ga galvanneal steel
Sizes
48 × 48 to 48 × 96 in
Weight
225 to 330 lb
Opens by
165°F fusible link or pull handles
Listing
UL 793, up to 48 × 96 in
Daylight through the vent, like a skylight
Cover
Clear over white polycarbonate domes in an aluminum frame
Insulation
1 in polyiso, R-6, in the curb
Curb
14 ga galvanneal steel
Sizes
48 × 48 to 48 × 96 in
Weight
240 to 355 lb
Opens by
165°F fusible link or pull handles
Listing
UL 793, up to 48 × 96 in
Related Documents & Downloads
RVF submittal (PDF)RVFV submittal (PDF)UL 793 listing flyer (PDF)Guide specification, smoke vents (DOCX)Installation and maintenance guide (PDF)Security grille submittal (PDF)Roof accessories catalog (PDF)Cross-reference to other brands (PDF)Warranty (PDF)Frequently Asked Questions
Can you match the smoke vent I'm replacing?
Usually. The manufacturer publishes a cross-reference from these series to Babcock-Davis, Bilco, Milcor and Nystrom smoke vents and to older Dur-Red models such as the UFV, UFSH and UDFV. Send the old model number or a photo of its label and we confirm the match and the size before we quote.
Who makes them?
Dur-Red, one of the Activar Construction Products Group brands alongside JL Industries. These are its Fahrenheit series smoke vents. We order them through our Activar account.
Are they UL listed?
Yes. Both series are UL 793 listed and labeled up to 48 × 96 in. The listing does not cover larger sizes.
What opens the vent in a fire?
A 165°F fusible link. When it melts, gas springs open both doors, with dampers to slow the swing. Melt-out links from 212°F to 450°F are an option, and McCabe electric links at 24 V DC or 115 V AC can tie the vent to a fire alarm. Pull handles inside and out open it by hand.
Will it stay shut in wind and open under snow?
The latches hold the doors closed against 90 lb/sq ft of wind uplift, and the springs open them against 10 lb/sq ft of snow. The cover carries a 40 lb/sq ft live load.
What size do I send?
The roof opening. The vent is sized inside the curb, so a 48 × 96 in vent fits a 48 × 96 in roof opening. Width runs hinge to latch and length runs along the hinge.
Can it go on an existing curb?
Yes. A curb mount version fits over an existing curb, which suits a retrofit. Curb heights from 16 to 22 in and 2 in insulation are also options.
Is there a security grille?
Yes, ordered separately. The standard RSG grille is 1/2 in steel bars on 6 × 12 in spacing, and other spacings are an option. It mounts on a drop-in flange under the vent or a bolt-in flange inside it. The manufacturer offers it for security and fall protection.
How are they maintained?
The manufacturer's guide calls for an operational test every year, with the latches, gas springs and links inspected. Closing an open vent takes two people. Replacement 165°F fusible links have their own part number.
Is it made in the USA?
Yes. The manufacturer lists its smoke vents as built in Bloomington, Minnesota or Commerce, California.
What is the warranty?
The manufacturer warrants its smoke vents for five years from shipment against defects in materials and workmanship.
How do I send plans?
Tick "I have plans or specs to share" on the quote form. We email you, and you reply with the drawings.
