Everkem Sound Seal 90 Draft, Smoke & Acoustical Sealant
Everkem
$9.00
In stock. Usually ships in 1-2 business days.
US Made Products
Flat Rate Shipping
Business Support
Get 10+ bulk pricing plus compliance and restock help.
Or call 714-248-6555 or email us.

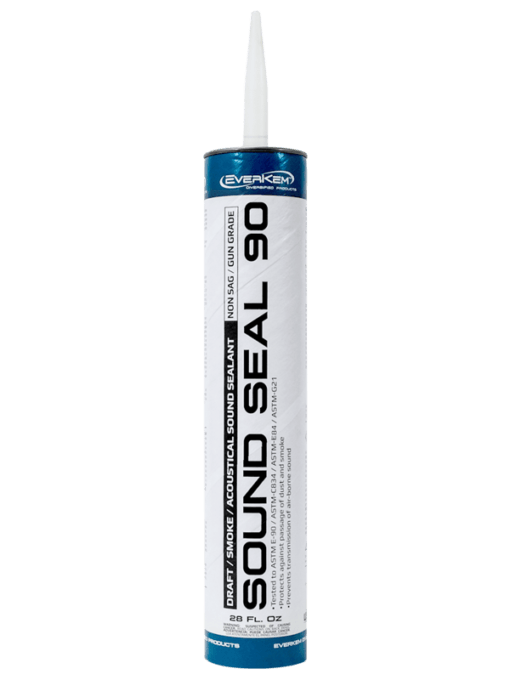

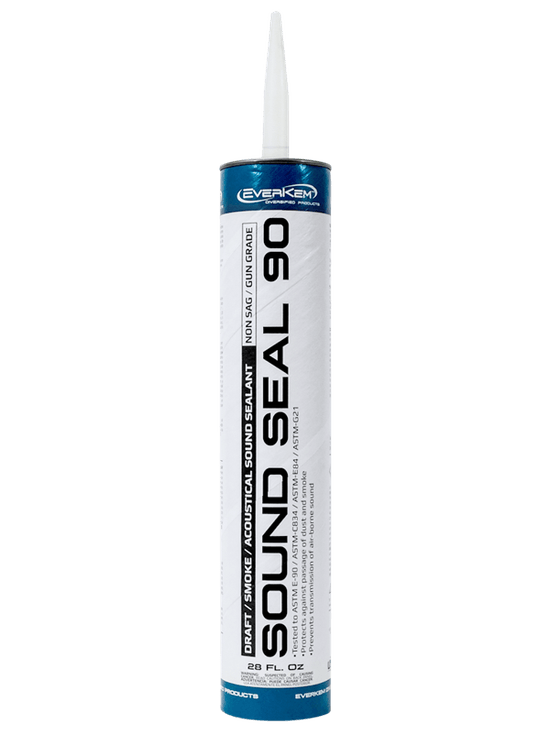

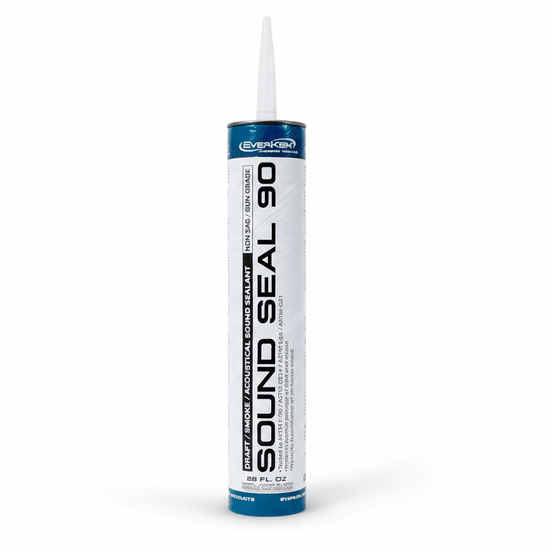

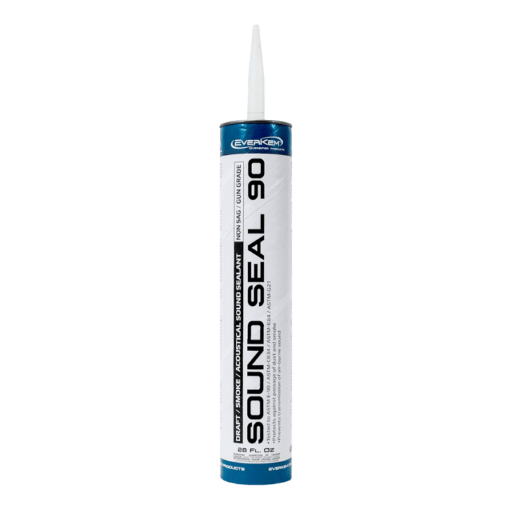

Everkem Diversified Products Sound Seal 90 is a latex-based acoustical sealant designed to reduce sound transmission, block smoke and drafts in construction assemblies. This 20-ounce sausage tube contains a gun-grade sealant that meets ASTM envelope standards including ASTM-E90 for sound reduction, ASTM-C834 for adhesion, ASTM-C919 for sag resistance, and ASTM-E84 for flame spread. The low VOC formula contains only 23 g/L of volatile organic compounds and carries LEED v4 emissions compliance.
This mold and mildew resistant sealant provides strong, flexible adhesion that maintains building assembly STC ratings over time. The compound is ASTM-G21 tested for biological resistance and offers EcoSeal environmental certification. Sound Seal 90 applies easily with standard caulk guns and maintains elasticity after curing. Note that this product is not approved for use in fire-rated assemblies where fire-stopping properties are required.
Use Sound Seal 90 around electrical boxes, HVAC penetrations, partition heads, and other gaps where acoustic performance matters. The product works well in office buildings, hotels, hospitals, and multi-family construction where sound control between spaces is critical. Made in the USA with consistent quality control.
Technical Details
Key Specs
| Chemistry | Acrylic polymer (latex-based) |
|---|---|
| Primary use | STC ratings per IBC; non-fire-rated smoke barrier partitions |
| Acoustical standards | Tested to ASTM E90, ASTM C919; meets ASTM C834 |
| ASTM E84 | 20 Flame Spread / 5 Smoke Developed |
| Mold resistance | ASTM G21 — 28 days: 0 (no growth) |
| Paintable | Yes (latex after 2h, oil-based after 24h+) |
| VOC content | 23.3 g/L |
Full Specifications
Typical Uncured Properties
| Chemistry | Acrylic polymer |
|---|---|
| Uncured state | Glossy paste |
| Odor | Low acrylic odor |
| Density / solids | 13.5 lb/gal; 83.6% by weight; 70.4% by volume |
| pH | 8 to 9 |
| Coverage | 3/8" bead — 1.36 ft/fl. oz.; 1/4" bead — 3.07 ft/fl. oz. |
| Application temperature | 60°F to 90°F (16°C to 32°C) |
| Tooling time | 10–15 minutes |
| Drying time | Tack-free 2 hours; dry-through 24 to 48 hours |
| Full cure time | 3 to 7 days |
| Storage temperature | 32°F to 120°F (0°C to 49°C) |
| Shelf life | 2 years |
Typical Cured Properties
| Cured state | Rubbery solid |
|---|---|
| ASTM E90 | Tested — Airborne Sound Transmission Loss of Building Partitions and Elements |
| ASTM C919 | Tested — Use of Sealants in Acoustical Applications |
| ASTM C834 | Meets — Standard Specification for Latex Sealants |
| ASTM E84 | 20 Flame Spread / 5 Smoke Developed |
| ASTM G21 (fungi resistance) | 28 days: 0 (no growth) |
| LEED v4 emissions | Tested to CDPH Standard Method / CA Section 01350 |
| Service temperature | < 185°F (85°C) |
| Paintability | Paintable with latex after 2 hours; oil-based after 24+ hours |
| Freeze/thaw capability | Excellent — 5 cycles |
| VOC content | 23.3 g/L |
Curing conditions: 75°F (24°C) and 50% relative humidity.
Available colors: White
Applications
- Top and bottom runners prior to drywall application
- Outer edge perimeter joints of drywall
- Cut-outs and utility penetrations
- Bottom-of-wall, wall-to-wall, and head-of-wall joints in smoke partitions
- Penetrations for metallic, insulated metallic, and non-metallic pipe, ducts, conduit, cables, and wires in non-fire-rated smoke partitions and acoustical assemblies
Advantages
- Essential for achieving STC rating per IBC for airborne sound
- Prevents passage of smoke and toxic gases through non-fire-rated smoke-barrier partitions
- Available in gun-grade and spray-grade options
- Mold and mildew resistant (ASTM G21 — no 28-day growth)
- High adhesion, permanently flexible bond
- Paintable
Limitations
- Not for use in fire-rated floor or wall assemblies (use Firestop-814+ for rated applications)
Compliance & Standards
CSI specified divisions
- 07 90 00 — Joint Protection
- 07 95 00 — Expansion Control
- 09 20 00 — Plaster and Gypsum Board
- 09 80 00 — Acoustical Treatment
Applicable standards
- ASTM E90 — Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss
- ASTM C919 — Standard Practice for Use of Sealants in Acoustical Applications
- ASTM C834 — Standard Specification for Latex Sealants
- ASTM E84 — Standard Test Method for Surface Burning Characteristics of Building Materials
- ASTM G21 — Standard Practice for Determining Resistance of Synthetic Polymeric Materials to Fungi
EcoSeal (low-VOC) compliance
- CDPH Standard Method / CA Section 01350 Emissions Testing for LEED v4 Compliance
- V.O.C. Content: 23.3 g/L
Sizes & Part Numbers
| Part # | Description | Packaging | Color |
|---|---|---|---|
| SS90-20 | Sound Seal 90 Gun Grade — 20 fl. oz. (591.48 mL) tube | 16 tubes/case | White |
| SS90-28FT | Sound Seal 90 Gun Grade — 28 fl. oz. (828.06 mL) fiber tube | 12 tubes/case | White |
| SS90-5 | Sound Seal 90 Gun Grade — 5 gallon (19 L) pail | Each | White |
Equivalent Products from Other Brands
Switching brands? This Everkem product is a functional equivalent to the competitor SKUs listed below per Everkem’s published Product Cross Reference. Formulations, cure times, and exact specs vary by manufacturer — confirm your project’s spec requirements before substituting.
| Brand | Part Number | Product Name |
|---|---|---|
| 3M | SS100 | 3M Smoke and Sound Sealant |
| Boss | 82651 | Boss 826 Acoustical Sound Sealant |
| DAP | 18165 | Sound Block E90 Acoustical, Smoke, and Draft Sealant |
| Hilti | 412591 | Hilti CP-506 Smoke and Acoustical Sealant |
| Hilti | 412592 | Hilti CP-572 Smoke and Acoustical Sealant Spray Grade |
| OSI | 1496542 | SC175 Draft & Acoustical Sealant |
| Rectorseal | 66652, 66650 | Metacaulk SAS Smoke and Acoustical Sealant |
| STI | SNS120W, SNS129W, SNS105W | STI SNS Smoke "N" Sound Acoustical Sealant |
| STI | SNS205 | STI SNS Smoke "N" Sound Acoustical Sealant Spray Grade |
| TiteBond | 2892 | TiteBond Acoustical, Smoke, and Sound Sealant |
