Fire Extinguishers for Grain Handling Facilities

Grain dust explodes, and it did so seven times in the United States in 2025. Purdue University's annual grain dust explosion report (2025 data) counted seven incidents — below the ten-year national average of 8.5 and down from nine in 2024 — but the human cost rose sharply: 10 injuries and 4 fatalities, against 2 injuries and none the year before. The 2025 incidents hit grain elevators, a seed processing facility, a feed mill, a flour mill, and a biofuel plant, across Texas, Ohio, Minnesota, North Dakota, and Nebraska. Grain dust itself was the fuel in five of the seven, and the probable ignition sources read like a maintenance checklist: smoldering grain, equipment maintenance work, an overheated bearing, a dust fire.

What makes these events so destructive is the two-stage mechanics. A primary explosion — often small, inside a bucket elevator leg or a piece of process equipment — sends a pressure wave through the facility that lofts the dust sitting on beams, ledges, and floors into suspension, and the flame front then ignites that cloud. The secondary explosions are typically far more destructive than the primary event. Five things have to coincide for a dust explosion: fuel, oxygen, an ignition source, dispersion of the dust at the right concentration, and confinement. Remove any one and it cannot happen — which is why the settled dust on your ledges, not the fire in the leg, is the part of the problem you control every day.

Two documents do most of the work here, and they are different kinds of rules. OSHA 29 CFR 1910.272, the Grain Handling Facilities standard, is a binding federal regulation. It covers grain elevators, feed mills, flour mills, rice mills, dust pelletizing plants, dry corn mills, and soybean flaking operations, and it addresses the grain-specific hazards: housekeeping, hot work, bin entry, emergency action plans, and — for grain elevators specifically — grain dryers and bucket elevators. Three of its paragraphs apply only to grain elevators, including the dryer and bucket-elevator equipment rules.

On the consensus-standard side, the landscape changed in December 2024: NFPA consolidated its six combustible-dust standards — including NFPA 61, the long-standing agricultural and food processing standard — into a single document, NFPA 660, Standard for Combustible Dusts and Particulate Solids (2025 edition). The requirements grain and feed facilities knew from NFPA 61 now live in NFPA 660's agricultural and food processing chapter, largely intact. If your jurisdiction or insurer still references NFPA 61, the 2020 edition remains the applicable legacy document until they adopt NFPA 660 — check with your AHJ. NFPA 660 itself is a voluntary consensus standard; it becomes enforceable when a fire code adopts it, when an insurer makes it a condition of coverage, or when OSHA uses it as evidence of a recognized hazard under the General Duty Clause.

OSHA 1910.272 requires a written housekeeping program that sets the frequency and methods best suited to reducing fugitive grain dust accumulations. This is not paperwork for its own sake: because the secondary explosion feeds on settled dust, every layer you remove is fuel the blast never gets.

The number everyone quotes is 1/8 inch, and it is worth quoting precisely. At grain elevators, the employer must immediately remove fugitive grain dust accumulations whenever they exceed 1/8 inch at priority housekeeping areas — floor areas within 35 feet of inside bucket elevators, floors of enclosed areas containing grinding equipment, and floors of enclosed areas containing grain dryers located inside the facility — or demonstrate, through the housekeeping program, that equivalent protection is provided.

Method matters as much as frequency. Compressed-air blowdown is allowed only when all machinery presenting an ignition source in the area has been shut down, and OSHA's guidance favors manual methods — soft-bristle brooms and vacuuming — that minimize the chance of suspending layered dust in the air, with eye protection and dust respirators for compressed-air or water washdown of inaccessible areas. The same logic drives how you discharge an extinguisher around dust, covered below.

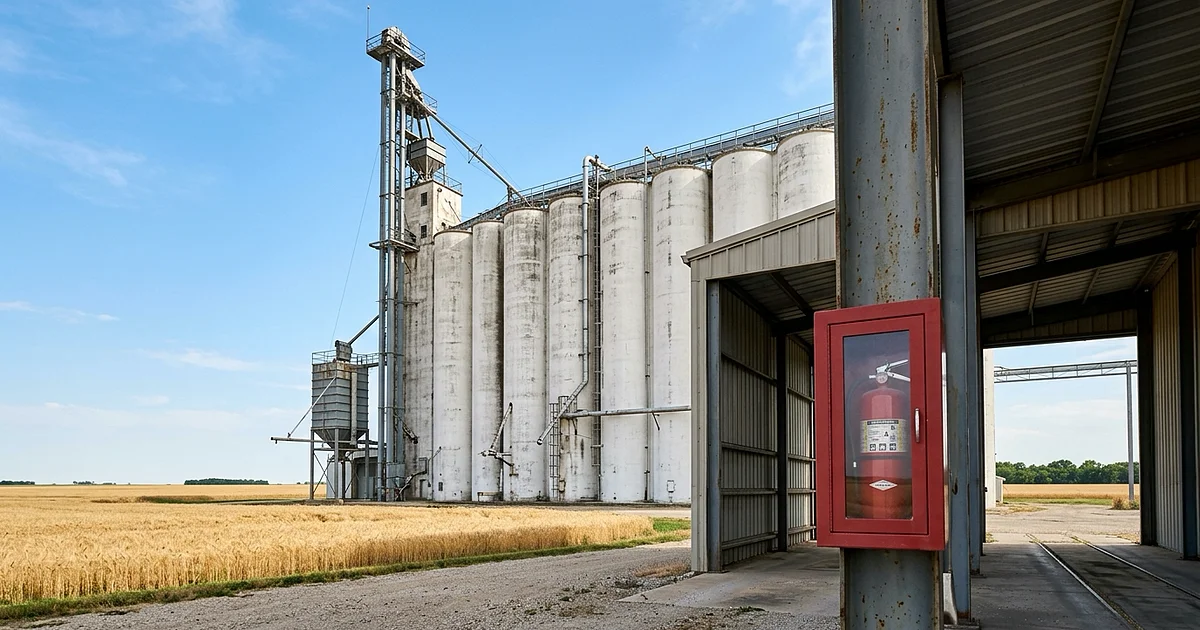

The grain standard itself has no dedicated portable-extinguisher section, so counts and spacing come from the general workplace rule, OSHA 1910.157, and NFPA 10: units mounted, identified, and readily accessible, with travel distance no more than 75 feet for Class A hazards and 50 feet for Class B, plus monthly visual inspections and annual maintenance. Which agent goes where is a selection decision, and the recommendations below are ours, based on what each part of a grain facility is most likely to burn. Your fire marshal has the final say on count, ratings, and placement.

Multipurpose ABC dry chemical is the agent most commonly specified across a grain facility because one unit covers the whole mix: ordinary combustibles (grain, dust, wood, packaging), flammable liquids, and energized electrical. Where a headhouse, driveway, or open receiving area wants more agent and more reach than a hand-portable delivers, a wheeled unit rolls to the fire instead of being carried to it.

A portable extinguisher at a grain facility is a spot-fire tool: a small trash fire, a hot spot at a transfer point, a fire just starting at a piece of equipment someone is standing next to. It is not — and cannot be — a tool for a dust-cloud flash fire. Once dust is airborne and burning, the event moves faster than anyone can react and no hand-held device participates in it. The honest job description for portables here is to keep the small fire from becoming the primary explosion.

This is the same physics as the housekeeping rule, seen from the other end: the pressure wave of a primary event lofts settled dust into a cloud the flame front then ignites. A discharge jet aimed carelessly across a dusty ledge is a small-scale version of that pressure wave. Train crews on both halves — fight only small, reachable spot fires, and discharge in a way that leaves the settled dust where it lies.

Equipment maintenance work was a probable ignition source in one of 2025's explosions, and OSHA treats it accordingly. Under 1910.272, a permit is required for all hot work — electric or gas welding, cutting, brazing, and similar flame-producing operations — with three exceptions: when the employer or a representative who would otherwise issue the permit is present during the work, in employer-authorized welding shops, and in employer-authorized hot-work areas located outside or away from the grain-handling structures.

The permit is not a formality: it certifies that the fire-prevention precautions of 29 CFR 1910.252(a) were implemented before the work began — relocating the work or the combustibles where possible, providing fire extinguishers, and provisions for establishing a fire watch. That is the clearest extinguisher requirement in the grain standard: hot work does not start until an extinguisher is at hand and the fire-watch question is answered.

For the maintenance and cleanout tasks that happen around dust without a torch — freeing jams, scraping buildup, opening equipment — non-sparking, non-magnetic hand tools are commonly used to take the tool-strike spark out of the equation. They complement the permit program; they do not replace it.

Non-Sparking Hand Tools

Ampco Safety Tools WS-1 Striking Wrench, Box End, 1-3/4 inch, 9 inch Length, Non-Sparking

$23.00

Justrite Drum Bung Wrench fits many 2-in or 3/4-in bung, brass alloy

$85.00

Grain engulfment kills quietly and fast, and entry into bins, silos, and tanks is where the grain standard is at its most prescriptive. 1910.272 sets its own entry regime for these spaces:

• An entry permit is required unless the employer or the employer's representative is present during the entire operation.
• Lockout. Equipment that presents a danger — mechanical, electrical, hydraulic, or pneumatic — must be deenergized and disconnected, locked out and tagged, blocked off, or otherwise prevented from operating.
• Atmosphere testing for oxygen, and for combustible gases, vapors, and toxic agents where their presence is suspected. Oxygen below 19.5 percent or combustible gas above 10 percent of the lower flammable limit triggers ventilation and/or appropriate respirators.
• "Walking down grain" is prohibited — no one rides the grain surface to make it flow.
• A body harness with lifeline (or a boatswain's chair), positioned so the worker cannot sink more than waist-deep, is required when entering from the top onto or above the grain. Harness and lifeline hardware is the territory of the ANSI Z359 fall protection family.
• A trained observer, equipped to provide assistance, stationed outside with communication maintained — and rescue equipment specifically suited to that bin, silo, or tank.
• No entry under bridged grain, or where a buildup of grain on the sides could collapse and bury the worker.

At grain handling facilities, the grain standard sets its own bin, silo, and tank entry requirements. Other confined spaces at the facility — pits, sumps, ducts — may fall under OSHA's general permit-required confined space rule, 29 CFR 1910.146. When in doubt, apply the more protective procedure.

The housekeeping program generates its own exposure: sweeping, vacuuming, and especially compressed-air or water washdown put grain dust in the air around the crew doing the work. OSHA's grain-standard guidance calls for dust respirators and eye protection for compressed-air and water washdown work, and the same protection is a sensible default for sweeping and vacuuming too. N95 filtering facepieces and reusable half-mask respirators with particulate filters are the units commonly used for grain-dust housekeeping work. Wherever respirators are required, a written respiratory protection program under OSHA 1910.134 applies — fit testing, medical evaluation, and training included.

Respiratory Protection for Grain Dust

View all 36

Moldex 1510 N95 Disposable Healthcare Particulate Respirator & Surgical Mask, Extra Small, NIOSH Approved

$42.00

Moldex 1511 N95 Disposable Healthcare Disposable Particulate Respirator & Surgical Mask, Small, NIOSH Approved

$331.00

Moldex 1512 N95 Disposable Healthcare Particulate Respirator & Surgical Mask, Medium, NIOSH Approved

$42.00

Moldex 1517 N95 Disposable Healthcare Particulate Respirator & Surgical Mask, Low Profile, NIOSH Approved

$20.00

Moldex 2200N95 Disposable Particulate Respirator, Medium/Large, NIOSH Approved

$32.00

-11%

Moldex 2201N95 Disposable Particulate Respirator, Small, NIOSH Approved

$34.00

$38.00

-11%

Moldex 2207N95 Disposable Particulate Respirator, Low Profile, NIOSH Approved

$34.00

$38.00

Moldex 2310 N99 Disposable Particulate Respirator with Exhale Valve, Size Medium/Large, NIOSH Approved

$8.00

First aid is the other half of the readiness picture, and it matters more at a country elevator forty minutes from the nearest emergency department than it does in town. OSHA's medical services and first aid rule, 29 CFR 1910.151, requires first aid supplies to be readily available, and ANSI/ISEA Z308.1 is the consensus standard that defines the workplace kit classes most buyers spec against.

Facility extinguishers are a recurring line item, not a one-time purchase. NFPA 10 sets the maintenance calendar, and OSHA 1910.157 independently requires the monthly visual check and annual maintenance. The intervals:

Any extinguisher that has been used, even a short burst, must be recharged before it goes back into service. A grain facility adds its own wear: dust cakes on gauges, hose nozzles, and pull pins, so make the monthly visual check a wipe-down too, and time the annual service ahead of harvest — Purdue's researchers make the same point about preventive maintenance before the handling season. For the full inspection and maintenance detail, see our NFPA 10 reference.

A grain facility rarely buys one extinguisher. Outfitting a headhouse, driveway, galleries, shop, and scale house — or standardizing units across a multi-location co-op so every site carries the same serviceable lineup — is a volume order, and pre-harvest is the time to do it. Buying in volume pays off on price and on consistency, and the paperwork matters here: spec sheets your OSHA file, fire marshal, and insurer will ask for come with the quote. For wheeled and multi-unit orders, we confirm delivered pricing in the quote rather than guessing it at checkout.
