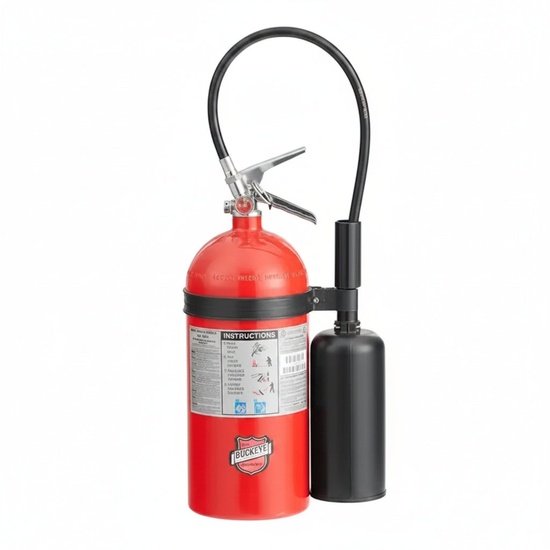

Buckeye 10 lb CO2 Fire Extinguisher

Name: Buckeye 10 lb CO2 Fire Extinguisher
Brand: Buckeye
SKU: BE-45600
Price: 264 USD
Availability: InStock

Buckeye

Meets NFPA 10 Standards Related to NFPA 76 Meets UL 154 Standards Meets UL 711 Standards

Authorized Distributor

Mission-Critical Extinguisher Guide

$264.00

Typically ships 5-7 business days.

Volume pricing on 10+ units.

US Made Products

Flat Rate Shipping

Business Support

American businesses trust US Made Supply because we do the research.

Call 714-248-6555 or email us.

Compare Buckeye CO2 sizes

All three portables carry the same 10-B:C rating and the same 4–8 ft range. The extra agent buys discharge time, not reach — and each ships with the wall hook sized to its own cylinder.

Size	UL rating	Discharge	Mounting	Cabinet	Marine use
10 lbThis item 6.89 in dia · 19-3/4 in tall	10-B:C	9 sec 4–8 ft range	Wall hook incl. P/N 700247	Sold separately See cabinet guide	USCG Type B:C Size I with Model 810 bracket Marine facilities guide
15 lb 6.89 in dia · 26-3/8 in tall	10-B:C	15 sec 4–8 ft range	Wall hook incl. P/N 700247	Sold separately See cabinet guide	USCG Type B:C Size II with Model 810 bracket Marine facilities guide
20 lb 8 in dia · 26-7/8 in tall	10-B:C	20 sec 4–8 ft range	Wall hook incl. P/N 700249	Sold separately See cabinet guide	USCG Type B:C Size II with Model 811 bracket Marine facilities guide
50 lb wheeled mobile floor unit	20-B:C		Wheeled See all wheeled units	Not applicable	Not listed facility unit

10 lbThis item

6.89 in dia · 19-3/4 in tall

UL rating: 10-B:C

Discharge

9 sec

4–8 ft range

Mounting

Wall hook incl.

P/N 700247

Cabinet

Sold separately

See cabinet guide

Marine use

USCG Type B:C Size I

with Model 810 bracket

Marine facilities guide

15 lb

6.89 in dia · 26-3/8 in tall

UL rating: 10-B:C

Discharge

15 sec

4–8 ft range

Mounting

Wall hook incl.

P/N 700247

Cabinet

Sold separately

See cabinet guide

Marine use

USCG Type B:C Size II

with Model 810 bracket

Marine facilities guide

20 lb

8 in dia · 26-7/8 in tall

UL rating: 10-B:C

Discharge

20 sec

4–8 ft range

Mounting

Wall hook incl.

P/N 700249

Cabinet

Sold separately

See cabinet guide

Marine use

USCG Type B:C Size II

with Model 811 bracket

Marine facilities guide

50 lb wheeled

mobile floor unit

UL rating: 20-B:C

Discharge

Mounting

Wheeled

See all wheeled units

Cabinet

Not applicable

Marine use

Not listed

facility unit

Comparison of 4 sizes in this range by ul rating, discharge, mounting, cabinet, marine use.

Carbon dioxide is a clean extinguishing agent that leaves no residue and conducts no electricity. It works by displacing oxygen at the fire and cooling the surface, which is why it's safe around energized electrical equipment where water or dry chemical would cause damage. Buckeye makes this 10 lb CO2 unit rated 10-B:C with a 9-second discharge and a 4 to 8 foot effective range.

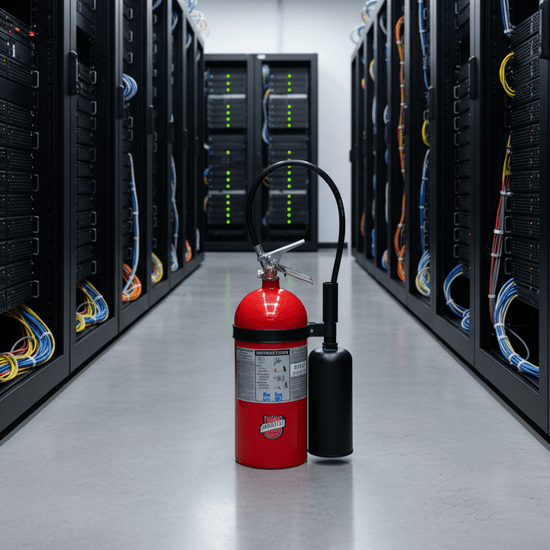

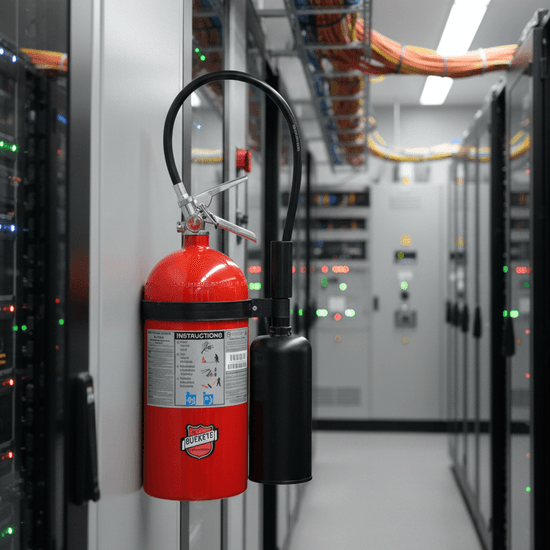

Primary use cases are server rooms, telecom closets, laboratories, machine shops, and control rooms. CO2 dissipates into the atmosphere after discharge, so there's nothing to wipe off boards, drives, or precision equipment. IT equipment room fire protection under NFPA 75 specifically calls out clean agents over water or dry chemical. Portable CO2 extinguishers work alongside fixed clean-agent suppression systems governed by NFPA 2001. NFPA 75 also covers firestopping the cable and conduit penetrations through the room's fire-rated walls, the passive side of the standard; see our data center firestop compliance guide.

One thing to size for: CO2 produces no lingering suppression. Once the gas disperses, fuel that stays above its autoignition temperature can reflash. In confined spaces, a full discharge can displace enough oxygen to endanger occupants. Match CO2 fire extinguishers' size to room volume.

Constructed from 6061 TG aluminum, plated brass valve, black discharge horn, trigger lever operation. DOT compliant. US Coast Guard approved for Type B:C Size I when used with Mounting Bracket Model 810 (P/N 700228, sold separately). Operating temperature range of -22°F to +120°F.

Wall hook included (Buckeye part number 700247, which also fits the 15 lb CO2).

Model	456
Part Number	45600
UL Rating	10-B:C
Agent Capacity	10 lb (4.54 kg)
Discharge Time	9 seconds
Discharge Range	4–8 ft (1.2–2.4 m)
Temperature Range	-22°F to +120°F
USCG Approval	Type B:C Size I (with Model 810 bracket, P/N 700228)
Cylinder Construction	6061 TG aluminum
Shipping Weight	27.75 lb (12.6 kg)
Height	19.75 in (50.2 cm)
Width	12 in (30.5 cm)
Cylinder Diameter	6.89 in (17.5 cm)
Mounting	Wall hook (included)
Country of Origin	USA (Kings Mountain, NC)

Frequently Asked Questions

Is this the right size for a communication or radio equipment site?

Motorola R56 (Standards and Guidelines for Communication Sites, section 3.12) calls for a 7 to 10 lb Class BC CO2 extinguisher, or an equivalent clean agent, in the electronic equipment room at a communication site, installed before equipment goes in. This is a 10 lb BC-rated CO2 unit, at the top of that size range. R56 is Motorola Solutions' own site standard rather than a law, so confirm the final count and placement against your site design and the authority having jurisdiction.

Why CO2 instead of a dry-chemical (ABC) extinguisher for the equipment room?

CO2 is non-conductive and leaves no residue, so it will not damage energized electronics. Dry-chemical agent leaves a corrosive residue that can ruin boards and connectors, and NFPA 76, the telecommunications fire-protection standard, prohibits dry chemical and corrosive-liquid extinguishers in signal-processing, main distribution frame, and power areas for exactly that reason. Keep a Class ABC unit for general areas and reserve a CO2 unit for the electronics.

Where is it made, and how is it maintained?

This is a Buckeye unit made in Kings Mountain, North Carolina. Like any portable extinguisher it needs a monthly visual check and annual maintenance under NFPA 10, plus a hydrostatic test every 5 years for CO2 cylinders. In a small, unventilated shelter, remember that a full CO2 discharge displaces oxygen, so ventilate before re-entry.

Does this extinguisher come with an inspection tag?

No. New extinguishers ship untagged. A service tag records maintenance performed on a unit that is already in service, so there is nothing to record on a new one yet. Under NFPA 10 the annual maintenance is done by a trained person and the tag is attached then. The monthly visual inspection is one you can do yourself.

Can I return this fire extinguisher?

Once shipped, charged fire extinguishers are not returnable. They are DOT-regulated hazardous materials (compressed gas, UN 1044) and cannot be shipped back through normal parcel carriers. If your unit arrives damaged or defective, email support@usmadesupply.com with photos and we will work with you on a resolution.
