Buckeye 50 lb ABC Wheeled Fire Extinguisher 10-A:160-B:C - Image 1

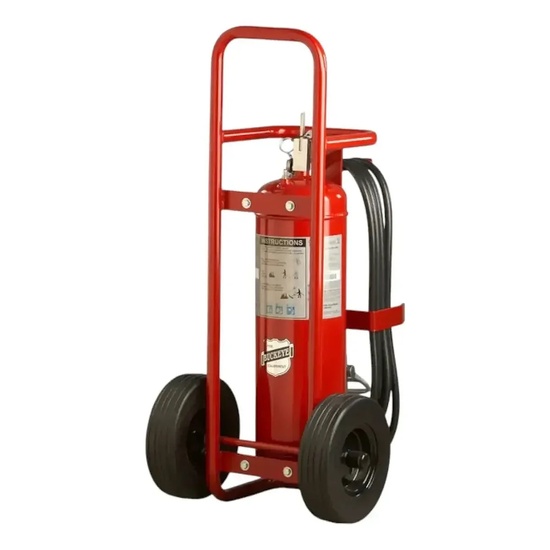

Red fire extinguisher on a white background

Buckeye 50 lb ABC Wheeled Fire Extinguisher 10-A:160-B:C

Name: Buckeye 50 lb ABC Wheeled Fire Extinguisher 10-A:160-B:C
Brand: Buckeye
SKU: BE-30010
Price: 1995 USD
Availability: InStock

Buckeye

Meets NFPA 10 Standards Meets UL 299 Standards Meets UL 711 Standards

Authorized Distributor

Class B Fire Extinguisher Guide

Section 10 44 16

$1,995.00

Typically ships in 10-14 business days.

Volume pricing on 10+ units.

US Made Products

Flat Rate Shipping

Business Support

American businesses trust US Made Supply because we do the research.

Call 714-248-6555 or email us.

Compare Buckeye ABC sizes

Same monoammonium phosphate agent and the same UL 299 / UL 711 listings across the line. What changes is the coverage rating, how long it discharges, and which DOT vehicle class it satisfies.

Size	UL rating	Discharge	Mounting	Cabinet	Vehicle use
2.5 lb 3-3/8 in dia · 14-3/4 in tall	1-A:10-B:C	9 sec 9–15 ft range	Vehicle bracket incl. Model A2	Sold separately See cabinet guide	DOT §393.95 Pickups, light service, under 10,001 lb GVWR DOT vehicle guide
5 lb (vehicle) 4-1/4 in dia · 16 in tall	3-A:40-B:C	14 sec 12–18 ft range	Vehicle bracket incl.	Sold separately See cabinet guide	DOT §393.95 Semis, box trucks, flatbeds, buses DOT vehicle guide
5 lb (wall) 4-1/4 in dia · 16-3/8 in tall	3-A:40-B:C	14 sec 12–18 ft range	Wall hook incl.	Sold separately See cabinet guide	DOT §393.95 Semis, box trucks, flatbeds, buses DOT vehicle guide
10 lb 5-1/8 in dia · 21 in tall	4-A:80-B:C	22 sec 15–21 ft range	Wall hook incl.	Sold separately See cabinet guide	DOT §393.95 Placarded hazmat, tankers, large fleets DOT vehicle guide
20 lb 7-1/2 in dia · 21-1/4 in tall	10-A:120-B:C	27 sec 15–21 ft range	Wall hook incl.	Sold separately See cabinet guide	DOT §393.95 Heavy-duty, extended fire, high-risk cargo DOT vehicle guide
50 lb wheeledThis item mobile floor unit	10-A:160-B:C	~30 sec ~25 ft range	Wheeled See all wheeled units	Not applicable	Facility unit not vehicle-carried

2.5 lb

3-3/8 in dia · 14-3/4 in tall

UL rating: 1-A:10-B:C

Discharge

9 sec

9–15 ft range

Mounting

Vehicle bracket incl.

Model A2

Cabinet

Sold separately

See cabinet guide

Vehicle use

DOT §393.95

Pickups, light service, under 10,001 lb GVWR

DOT vehicle guide

5 lb (vehicle)

4-1/4 in dia · 16 in tall

UL rating: 3-A:40-B:C

Discharge

14 sec

12–18 ft range

Mounting

Vehicle bracket incl.

Cabinet

Sold separately

See cabinet guide

Vehicle use

DOT §393.95

Semis, box trucks, flatbeds, buses

DOT vehicle guide

5 lb (wall)

4-1/4 in dia · 16-3/8 in tall

UL rating: 3-A:40-B:C

Discharge

14 sec

12–18 ft range

Mounting

Wall hook incl.

Cabinet

Sold separately

See cabinet guide

Vehicle use

DOT §393.95

Semis, box trucks, flatbeds, buses

DOT vehicle guide

10 lb

5-1/8 in dia · 21 in tall

UL rating: 4-A:80-B:C

Discharge

22 sec

15–21 ft range

Mounting

Wall hook incl.

Cabinet

Sold separately

See cabinet guide

Vehicle use

DOT §393.95

Placarded hazmat, tankers, large fleets

DOT vehicle guide

20 lb

7-1/2 in dia · 21-1/4 in tall

UL rating: 10-A:120-B:C

Discharge

27 sec

15–21 ft range

Mounting

Wall hook incl.

Cabinet

Sold separately

See cabinet guide

Vehicle use

DOT §393.95

Heavy-duty, extended fire, high-risk cargo

DOT vehicle guide

Buckeye 50 lb ABC Wheeled Fire Extinguisher 10-A:160-B:C

50 lb wheeledThis item

mobile floor unit

UL rating: 10-A:160-B:C

Discharge

~30 sec

~25 ft range

Mounting

Wheeled

See all wheeled units

Cabinet

Not applicable

Vehicle use

Facility unit

not vehicle-carried

Comparison of 6 sizes in this range by ul rating, discharge, mounting, cabinet, vehicle use.

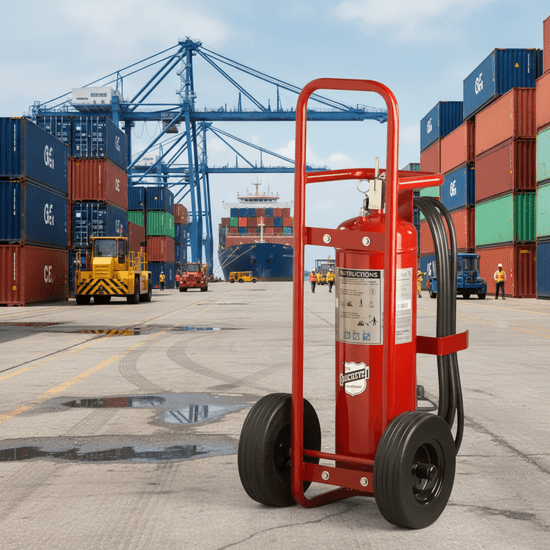

Industrial occupancies — warehouses, manufacturing floors, equipment yards, aircraft hangars, marine terminals — generate fire loads that overwhelm handheld extinguishers within seconds. A 50 lb wheeled unit gives one person mobile, high-discharge coverage that no portable can match. Buckeye Fire Equipment makes this stored-pressure model rated 10-A:160-B:C, with 30+ seconds of discharge and effective range out to 25 feet. Listed to the ANSI/UL 299 dry chemical fire extinguisher standard and tested under UL 711 fire-test classification.

Stored pressure means the cylinder ships fully charged and ready to operate — pull the pin, squeeze the lever, sweep. No nitrogen cartridge to install, no regulator to verify. The trade-off is a narrower operating temperature range than the cartridge-operated variants; for outdoor or cold-environment use, the RG (cartridge-operated regulated) variant is the better choice.

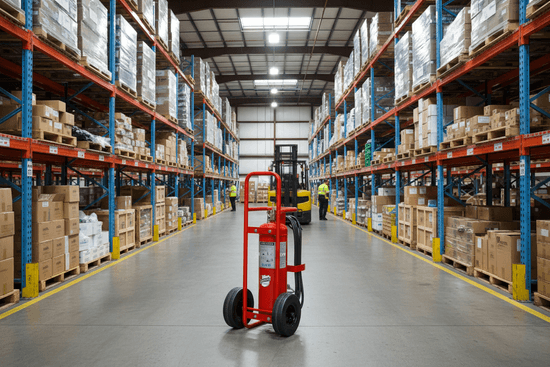

Primary use cases are large-area Class A + Class B coverage: warehouse aisles, manufacturing cells, automotive shops, equipment dealerships, fuel-handling zones, and high-rack storage. NFPA 10 ordinary-hazard and extra-hazard classification places wheeled extinguishers in a separate category from handhelds and credits them toward extra-hazard occupancy protection at greater travel distances. OSHA 29 CFR §1910.157 workplace extinguisher selection rules apply to employer-provided units, and warehouse and rack-storage installations should also review OSHA materials-handling and storage requirements for travel-distance and obstruction provisions. Facilities storing flammable liquids alongside Class A goods should reference the NFPA 30 flammable liquids code.

Semi-pneumatic rubber wheels roll smoothly over warehouse floors, shop concrete, and tarmac without the puncture risk of air-filled tires. Steel cylinder with baked-on polyester epoxy finish. Plated brass valve, hose with nozzle. Wall hook not included (this is a mobile unit). Operating temperature range of +40°F to +120°F.

Model	A-50-SP
Part Number	30010
UL Rating	10-A:160-B:C
Agent	Monoammonium phosphate (ABC)
Agent Capacity	50 lb (22.7 kg)
Discharge Time	~30 seconds
Discharge Range	~25 ft (7.6 m)
Operating Pressure	195 psi (1,345 kPa)
Temperature Range	+40°F to +120°F
Shipping Weight	154 lb (70 kg)
Cylinder Construction	Steel, polyester epoxy finish
Wheel Type	Semi-pneumatic rubber
Mounting	Mobile (wheeled)
Country of Origin	USA (Kings Mountain, NC)

Frequently Asked Questions

Does it ship assembled, and how?

Yes — it ships fully assembled and charged, ready to operate. As an oversized unit it ships by LTL freight, typically within 3 business days.

Why choose ABC over CO2 or Purple K?

ABC (monoammonium phosphate) is the multipurpose dry chemical — the only wheeled agent rated for Class A (ordinary combustibles) in addition to B and C, at 10-A:160-B:C. Choose it when one unit must cover mixed hazards. For residue-free electrical protection choose CO2; for the highest flammable-liquid rating choose Purple K.

Where is this extinguisher made?

In the USA — at Buckeye's Kings Mountain, North Carolina plant.

What standards does it meet?

It is UL 299 listed (dry chemical extinguishers) and UL 711 listed (fire ratings), rated 10-A:160-B:C, and supports NFPA 10 compliance for portable fire extinguishers.

How many do I need?

Under NFPA 10, position extinguishers so travel distance to one never exceeds 75 ft for Class A hazards and 50 ft for Class B. One 10-A:160-B:C wheeled unit covers a high-hazard area within that range; add a unit for each separate area or anything beyond those distances.

Does this extinguisher come with an inspection tag?

No. New extinguishers ship untagged. A service tag records maintenance performed on a unit that is already in service, so there is nothing to record on a new one yet. Under NFPA 10 the annual maintenance is done by a trained person and the tag is attached then. The monthly visual inspection is one you can do yourself.

Can I return this fire extinguisher?

Once shipped, charged fire extinguishers are not returnable. They are DOT-regulated hazardous materials (compressed gas, UN 1044) and cannot be shipped back through normal parcel carriers. If your unit arrives damaged or defective, email support@usmadesupply.com with photos and we will work with you on a resolution.
