JL Industries Economyline Steel Surface Mount Fire Extinguisher Cabinet 5 lb White 5013N20W 2-Pack
JL Industries
$129.00
In stock. Usually ships in 1-2 business days.
Volume pricing on 10+ units.
Qualifies for free shipping on orders $3,000+ (contiguous US).
US Made Products
Flat Rate Shipping
Business Support
American businesses trust US Made Supply because we do the research.
Call 714-248-6555 or email us.

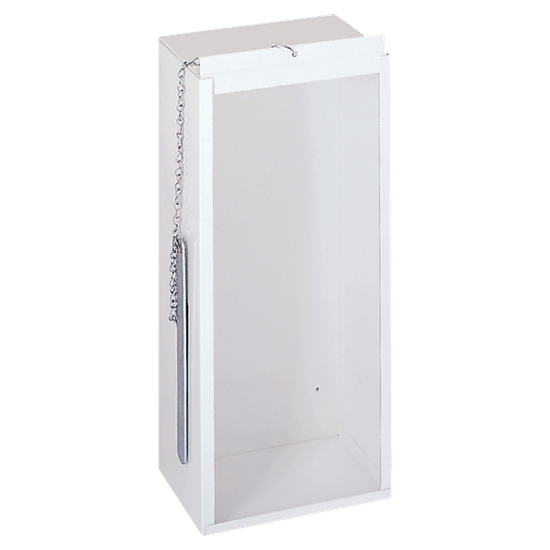

The JL Industries Economyline 5013N20W is a cost-effective surface-mounted steel fire extinguisher cabinet for a 5 lb extinguisher, made in the USA. Activar builds this model in a factory 2-pack, so this listing covers two cabinets. The white hammertone steel tub bolts to the wall face (no recess), with a sliding clear acrylic front, retainer clip, and a breaker bar and chain. It is a clean way to protect an extinguisher from tampering and damage in offices, shops, and light commercial spaces.
Specifications
| Model | Economyline 5013N20W |
| Sold as | Factory 2-pack (two cabinets) |
| Mounting | Surface-mount |
| Fits extinguisher | 2.5 to 5 lb |
| Tub interior (W×H×D) | 8-1/8 in × 18 in × 5-1/2 in |
| Material / finish | Cold-rolled steel, white hammertone |
| Front | Sliding clear acrylic, retainer clip, breaker bar and chain |
| Fire rating | Non-rated |
| Weight | 11 lb per 2-pack carton |
| Country of Origin | USA |
Extinguisher compatibility
Sized for 2.5 to 5 lb portable extinguishers. A 5 lb dry-chemical cylinder fits this cabinet's compact tub; a 10 lb or larger unit needs a cabinet rated for that size. Confirm the cylinder diameter on your extinguisher's cut sheet against the tub dimensions above. See our Fire Extinguisher Cabinet Selection Guide for the full fit matrix.
Placement and mounting height follow the NFPA 10 requirements.
Frequently Asked Questions
Will a 5 lb fire extinguisher fit this cabinet?
Yes, this cabinet is sized for a 5 lb extinguisher. Fit is governed by the extinguisher's cylinder diameter versus the cabinet's interior depth, so confirm the cylinder dimensions on your extinguisher's cut sheet against the cabinet dimensions listed above.
Is this cabinet fire-rated?
No, this is a standard (non-rated) cabinet, which is fine in a non-fire-rated wall or for surface mounting. To recess a cabinet into a fire-rated wall, choose a fire-rated (FX2) model.
How does this cabinet mount?
It surface-mounts to the wall face, so it needs only blocking and no wall cavity. It suits masonry, thin walls, and back-of-house areas.
Do I need a key to open this cabinet?
No. The front is a sliding clear acrylic panel held by a retainer clip, not a locking door. Release the clip and slide the panel out of its channel for the annual extinguisher inspection, then slide it back. Nothing gets broken and no key is needed. The top lip is pre-drilled if you want to add a padlock, and the breaker bar on the chain is there for emergency access if the cabinet has been padlocked.
Is it made in the USA?
Yes. JL Industries / Activar manufactures these cabinets in the United States.
