JL Industries Embassy Steel Recessed Fire Extinguisher Cabinet 15 lb 5714V10

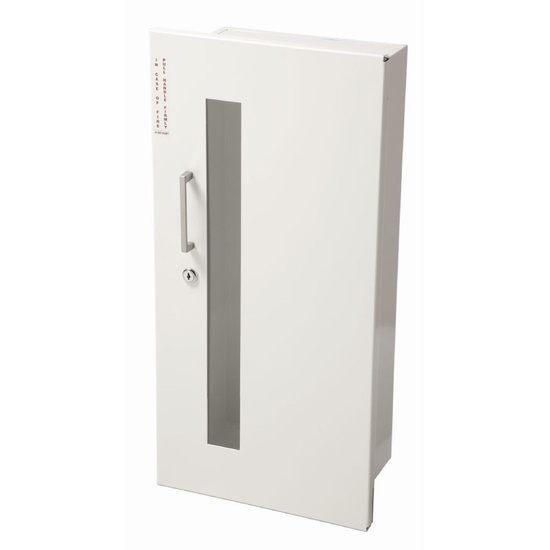

The JL Industries Embassy 5714V10 is a trimless, fully-recessed fire extinguisher cabinet for a 15 lb extinguisher, made in the USA. The cold-rolled steel tub has a white powder-coat finish and a vertical-duo glazed (clear acrylic) door with concealed hinges and a pull handle. The 1-inch overlapping trimless door gives a clean, finished look for commercial and institutional interiors.

Specifications

Model	Embassy 5714V10
Mounting	Trimless fully-recessed
Fits extinguisher	5 to 15 lb
Tub interior (W×H×D)	16 in × 32 in × 7-3/4 in
Rough wall opening (W×H×D)	17 in × 33 in × 7-7/8 in
Door, outside (W×H)	18-1/4 in × 34-1/4 in
Material / finish	Cold-rolled steel, white powder coat
Door	Vertical-duo clear acrylic glazing, pull handle
Fire rating	Non-rated
ADA projection	Recessed — 4 in or less
Country of Origin	USA

Extinguisher compatibility

Sized for 5 to 15 lb portable extinguishers. Fit is set by the extinguisher's cylinder diameter against this cabinet's 7-3/4 in interior (tub) depth, not by weight — this deeper tub accepts the larger-diameter 10 to 15 lb units that will not fit a shallow 5-3/4 in cabinet. Confirm the cylinder diameter on your extinguisher's cut sheet against the tub depth above. See our Fire Extinguisher Cabinet Selection Guide for the full fit matrix.

Placement and mounting height follow the NFPA 10 requirements.
