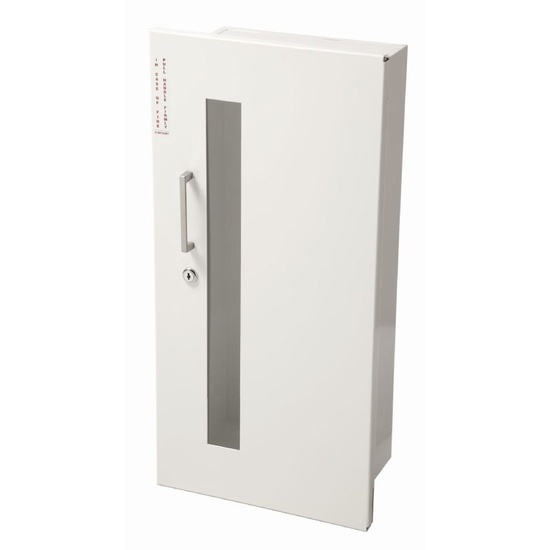

JL Industries Embassy Steel Recessed Fire Rated Fire Extinguisher Cabinet 10 lb 5614V10FX2

The JL Industries Embassy 5614V10FX2 is the fire-rated version of the Embassy 5614V10 recessed cabinet for a 10 lb extinguisher, made in the USA. A foil-faced mineral-wool liner lets the cabinet be recessed into a fire-resistance-rated wall without reducing the wall's rating. It is UL 1479 (ASTM E814) and CAN/ULC-S115 classified up to 2 hours. If the wall it is going into is not rated, the non-rated version costs considerably less.

Specifications

Model	Embassy 5614V10FX2 (fire-rated)
Non-rated version	Embassy 5614V10
Mounting	Trimless fully-recessed (fire-rated walls)
Fits extinguisher	2.5 to 10 lb
Fire rating	UL 1479 / ASTM E814, up to 2 hours (with CAN/ULC-S115)
Tub interior (W×H×D)	10-1/2 in × 24 in × 5-3/4 in
Rough wall opening (W×H×D)	12-15/16 in × 26-5/16 in × 6-15/16 in
Door, outside (W×H)	13-15/16 in × 27-1/2 in
Material / finish	Cold-rolled steel, powder coat (white, black, or red), mineral-wool fire liner
Door	Vertical-duo clear acrylic glazing, pull handle
Weight	29 lb
Country of Origin	USA

Finish options

White powder coat is the stock finish and ships from inventory. Black, red, and red with a white tub are factory finishes built to orderand may vary from images shown here, so allow additional lead time on those. The fire rating is a property of the mineral-wool liner and the cabinet construction, not the finish, so a colored build carries the same UL 1479 classification. Need a color outside these three, or the same cabinet in a different door style or glazing? Ask us for a quote.

Extinguisher compatibility

Sized for 2.5 to 10 lb portable extinguishers. Fit is set by the extinguisher's cylinder diameter against this cabinet's 5-3/4 in interior (tub) depth, not by weight — a standard 10 lb dry-chemical unit fits, while a wide-body "short" 10 lb or a 20 lb unit is too deep and needs a larger cabinet. Confirm the cylinder diameter on your extinguisher's cut sheet against the tub depth above.

Rated wall or not?

Specify this build when the wall carries a fire-resistance rating that a standard cabinet would breach. Our Fire Extinguisher Cabinet Selection Guide covers when that applies, and the NFPA 10 page covers mounting. For a non-rated wall the standard Embassy 5614V10 is the same tub and door for considerably less. The rough openings differ, so the choice has to be made before the wall is framed.
