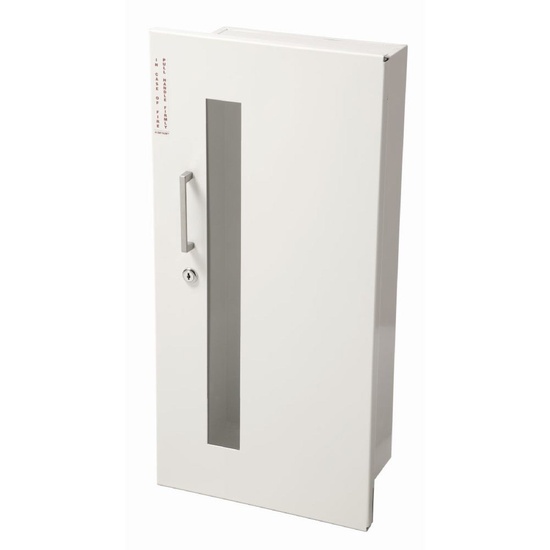

JL Industries Embassy Steel Recessed Fire Rated Fire Extinguisher Cabinet 15 lb 5714V10FX2

The JL Industries Embassy 5714V10FX2 is the fire-rated version of the Embassy recessed cabinet for a 15 lb extinguisher, made in the USA. A foil-faced mineral-wool liner lets the cabinet be recessed into a fire-resistance-rated wall without reducing the wall's rating. It is UL classified and labeled up to 2 hours in accordance with UL 1479 (ASTM E814) and CAN/ULC-S115.

Specifications

Model	Embassy 5714V10FX2 (fire-rated)
Mounting	Trimless fully-recessed (fire-rated walls)
Fits extinguisher	5 to 15 lb
Fire rating	UL 1479 / ASTM E814, up to 2 hours (with CAN/ULC-S115)
Tub interior (W×H×D)	16 in × 32 in × 7-3/4 in
Rough wall opening (W×H×D)	18-5/16 in × 34-5/16 in × 8-15/16 in
Door, outside (W×H)	19-7/16 in × 35-1/2 in
Material / finish	Cold-rolled steel, white powder coat, mineral-wool fire liner
Door	Vertical-duo clear acrylic glazing, concealed pull
ADA projection	Recessed — 4 in or less
Weight	44 lb
Country of Origin	USA

Extinguisher compatibility

Sized for 5 to 15 lb portable extinguishers. Fit is set by the extinguisher's cylinder diameter against this cabinet's 7-3/4 in interior (tub) depth, not by weight — this deeper tub accepts the larger-diameter 10 to 15 lb units that will not fit a shallow 5-3/4 in cabinet. Confirm the cylinder diameter on your extinguisher's cut sheet against the tub depth above.

Recessing a cabinet into a rated wall? Our Fire Extinguisher Cabinet Selection Guide covers when a fire-rated cabinet is required, and the NFPA 10 page covers mounting.
