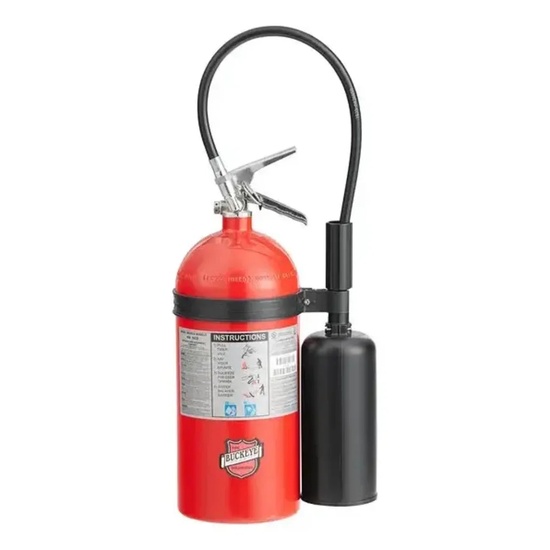

Buckeye 20 lb CO2 Fire Extinguisher

Name: Buckeye 20 lb CO2 Fire Extinguisher
Brand: Buckeye
SKU: BE-46600
Price: 367 USD
Availability: InStock

Buckeye

Meets NFPA 10 Standards Related to NFPA 76 Meets UL 154 Standards Meets UL 711 Standards

Authorized Distributor

Mission-Critical Extinguisher Guide

$367.00

Typically ships 5-7 business days.

Volume pricing on 10+ units.

US Made Products

Flat Rate Shipping

Business Support

American businesses trust US Made Supply because we do the research.

Call 714-248-6555 or email us.

Compare Buckeye CO2 sizes

All three portables carry the same 10-B:C rating and the same 4–8 ft range. The extra agent buys discharge time, not reach — and each ships with the wall hook sized to its own cylinder.

Size	UL rating	Discharge	Mounting	Cabinet	Marine use
10 lb 6.89 in dia · 19-3/4 in tall	10-B:C	9 sec 4–8 ft range	Wall hook incl. P/N 700247	Sold separately See cabinet guide	USCG Type B:C Size I with Model 810 bracket Marine facilities guide
15 lb 6.89 in dia · 26-3/8 in tall	10-B:C	15 sec 4–8 ft range	Wall hook incl. P/N 700247	Sold separately See cabinet guide	USCG Type B:C Size II with Model 810 bracket Marine facilities guide
20 lbThis item 8 in dia · 26-7/8 in tall	10-B:C	20 sec 4–8 ft range	Wall hook incl. P/N 700249	Sold separately See cabinet guide	USCG Type B:C Size II with Model 811 bracket Marine facilities guide
50 lb wheeled mobile floor unit	20-B:C		Wheeled See all wheeled units	Not applicable	Not listed facility unit

10 lb

6.89 in dia · 19-3/4 in tall

UL rating: 10-B:C

Discharge

9 sec

4–8 ft range

Mounting

Wall hook incl.

P/N 700247

Cabinet

Sold separately

See cabinet guide

Marine use

USCG Type B:C Size I

with Model 810 bracket

Marine facilities guide

15 lb

6.89 in dia · 26-3/8 in tall

UL rating: 10-B:C

Discharge

15 sec

4–8 ft range

Mounting

Wall hook incl.

P/N 700247

Cabinet

Sold separately

See cabinet guide

Marine use

USCG Type B:C Size II

with Model 810 bracket

Marine facilities guide

20 lbThis item

8 in dia · 26-7/8 in tall

UL rating: 10-B:C

Discharge

20 sec

4–8 ft range

Mounting

Wall hook incl.

P/N 700249

Cabinet

Sold separately

See cabinet guide

Marine use

USCG Type B:C Size II

with Model 811 bracket

Marine facilities guide

50 lb wheeled

mobile floor unit

UL rating: 20-B:C

Discharge

Mounting

Wheeled

See all wheeled units

Cabinet

Not applicable

Marine use

Not listed

facility unit

Comparison of 4 sizes in this range by ul rating, discharge, mounting, cabinet, marine use.

Carbon dioxide is a clean extinguishing agent that leaves no residue and conducts no electricity. It smothers Class B flammable-liquid and energized Class C electrical fires by displacing oxygen and cooling the surface, with nothing to wipe off equipment afterward. Buckeye makes this 20 lb CO2 unit rated 10-B:C with a 20-second discharge and a 4 to 8 foot effective range, the largest portable CO2 in the line.

Buckeye lists this unit for chemical and manufacturing plants, oil rigs, rail yards, warehouses, construction sites, parking garages, boat docks, and large laboratories, plus the server rooms, switchgear, and electrical rooms where a residue-free agent matters. Carbon dioxide has an Ozone Depletion Potential of 0 and a Global Warming Potential of 1, and it dissipates into the atmosphere after discharge with nothing to wipe off boards or precision equipment. Equipment room protection under NFPA 75 specifically calls out clean agents over water or dry chemical, and portable units work alongside fixed clean-agent systems governed by NFPA 2001.

Sizing note: the 20 lb carries the same 10-B:C rating as the 10 lb and 15 lb. The additional agent does not raise Buckeye's published UL rating for this model; it mainly extends discharge time to 20 seconds, not reach, which stays at 4 to 8 feet across all sizes. The short range and rapid CO2 dispersion are what limit the rated test-fire area. CO2 fire extinguishers leave no lingering suppression, fuel held above its autoignition temperature can reflash and a full discharge in a confined space can displace enough oxygen to endanger occupants. Match extinguisher size to room volume.

Built on a polyester epoxy powder coated aluminum cylinder with a rugged plated brass valve and a stainless steel handle and lever. Manufactured to ANSI/UL 154 and ANSI/UL 711; USDOT cylinders are tested to 3000 psi. US Coast Guard approved for Type B:C Size II only when ordered with the Model 811 mounting bracket (P/N 700229). Operating temperature range -22°F to +120°F.

Part Number	46600
UL Rating	10-B:C
Agent Capacity	20 lb (9.07 kg)
Discharge Time	20 seconds
Discharge Range	4–8 ft (1.2–2.4 m)
Temperature Range	-22°F to +120°F
USCG Approval	Type B:C Size II (with Model 811 bracket, P/N 700229)
Cylinder Construction	Polyester epoxy powder coated aluminum
Shipping Weight	49.0 lb (22.2 kg)
Height	26.875 in (68.2 cm)
Width	13 in (33 cm)
Cylinder Diameter	8.0 in (20.3 cm)
Mounting	Wall hook
Country of Origin	USA (Kings Mountain, NC)

Frequently Asked Questions

Can I use this on energized electrical equipment?

Yes. CO2 is non-conductive and leaves no residue, so it is safe on live electrical equipment. This 20 lb unit, the largest portable CO2 in the line, is rated 10-B:C for Class B flammable liquids and Class C electrical fires. CO2 carries no Class A rating, so keep a Class A or ABC unit for ordinary combustibles.

Will it leave residue or damage electronics?

No. Carbon dioxide dissipates into the air after discharge with nothing to wipe off boards, drives, or precision equipment. That is why NFPA 75 calls out clean agents over water or dry chemical for IT equipment rooms, and why dry chemical, which leaves corrosive residue, is the wrong choice around electronics.

How is the 20 lb different from the 15 lb and 10 lb?

All three carry the same 10-B:C rating. The extra agent in the 20 lb extends discharge time to about 20 seconds, not reach, which stays at 4 to 8 feet across the CO2 line. Choose the larger unit for longer knockdown time on the same close-quarters hazard, not for greater range.

What should I watch for in a small room?

CO2 leaves no lingering suppression, so fuel held above its autoignition temperature can reflash once the gas disperses, and a full discharge in a confined space can displace enough oxygen to endanger occupants. Match extinguisher size to room volume and ventilate before re-entry.

What standards does it meet?

It is manufactured to ANSI/UL 154 and ANSI/UL 711, rated 10-B:C, and it supports NFPA 10 for placement and maintenance. CO2 cylinders also require a hydrostatic test every 5 years.

Where is it made?

In the USA, at Buckeye's Kings Mountain, North Carolina plant.

Does this extinguisher come with an inspection tag?

No. New extinguishers ship untagged. A service tag records maintenance performed on a unit that is already in service, so there is nothing to record on a new one yet. Under NFPA 10 the annual maintenance is done by a trained person and the tag is attached then. The monthly visual inspection is one you can do yourself.

Can I return this fire extinguisher?

Once shipped, charged fire extinguishers are not returnable. They are DOT-regulated hazardous materials (compressed gas, UN 1044) and cannot be shipped back through normal parcel carriers. If your unit arrives damaged or defective, email support@usmadesupply.com with photos and we will work with you on a resolution.
