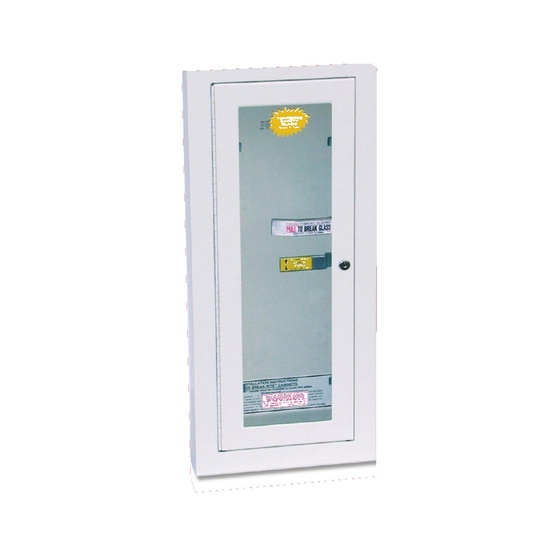

Kidde Fire Extinguisher Cabinet Semi-Recessed with Keyed Lock HF7022-B

The Kidde HF7022-B semi-recessed fire extinguisher wall cabinet provides secure storage for 10 lb dry chemical fire extinguishers in commercial and residential applications. Built from heavy-gauge galvanized steel with a long-life electrostatically applied thermally fused tan finish, this cabinet combines durability with professional appearance. The tempered safety glass front allows for easy visibility of the extinguisher while the Break Rite handle enables quick emergency access.

The keyed steel cam lock provides security against tampering and theft while meeting NFPA 10 fire extinguisher placement requirements for wall-mounted storage. The semi-recessed design requires a wall opening of 10 x 25 x 4 inches, making it ideal for new construction or retrofit applications where space efficiency matters. The overall frame dimensions of 11-3/4 x 26-3/4 inches provide a clean, professional installation.

This cabinet works well in apartments, condominiums, strip malls, and other commercial buildings where 10 lb dry chemical extinguishers are specified. The compact design maximizes wall space while ensuring code compliance and easy access during emergencies.

Inside Box Dimensions	9 x 24 x 5-3/4 inches
Overall Frame Dimensions	11-3/4 x 26-3/4 inches
Wall Opening Required	10 x 25 x 4 inches
Extinguisher Capacity	10 lb dry chemical
Material	Heavy-gauge galvanized steel
Finish	Tan thermally fused coating
